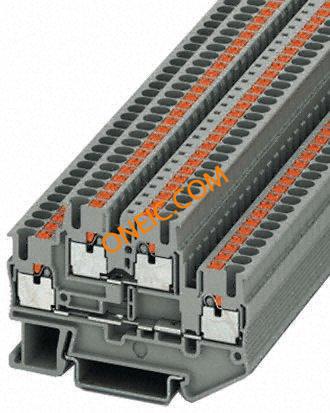

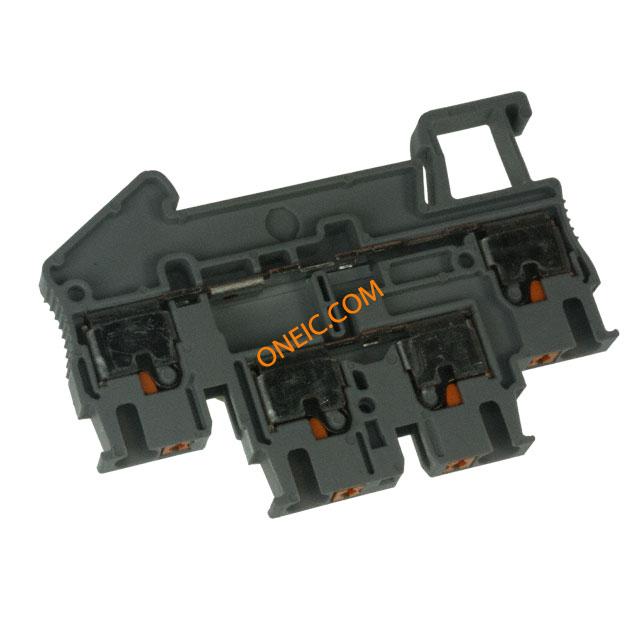

3210567

点击放大查看

3210567

制造商
Phoenix Contact GmbH & Co. KG
描述DINレール・ターミナルブロック PTTB 2,5 Conn Feed-Through Modular Terminal Blocks F 4 POS 22A CONN TERM BLOCK FEED THRU 5.2MM Non-Fuse DIN Rail Terminal, 22A, 500V, Grey ,Push In Termination DIN Rail Terminal Blocks PTTB 2,5 Conn;TermBlk;FeedThru;2;4;0.14-4sq.mm;26-12AWG;Gray;5.2mmW Phoenix Contact PITTB Clipline 系列 灰色 双层接线端子块 , 22A, 500 V
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

商标名CLIPLINE PT产品类别DIN Rail Terminal Blocks
标准包装数量50工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

电流 - UL20AUL电压600V
电流 - IEC22AIEC电压500V
额定电压500 V最大额定电流22A
最小输入电压500V

机械参数

颜色Gray深度6.2
高度55导线线规0.14 → 4 mm
端接方式Push In接触镀层Tin
安装样式DIN Rail排数4
壳体材料Polyamide总长度68
主要材料DINRail剥线长度（范围）10mm
端子宽度5.2mm端接排数推入式
端接样式Push In, Spring连接器颜色Grey
触点数4位数4
绝缘材料 - 材质Polyamide (PA), Nylon线规或范围 - AWG12-26 AWG
线规或范围 - mm²0.14-4mm²

产品信息

类型Feed-Through Modular Terminal Blocks连接器性别F
系列PITTB叠层数双层
层数2基础产品编号PITTB2.5

文档与媒体

PDF 文档
PIT to PT 27/Feb/2012
PDF 文档
3210567
