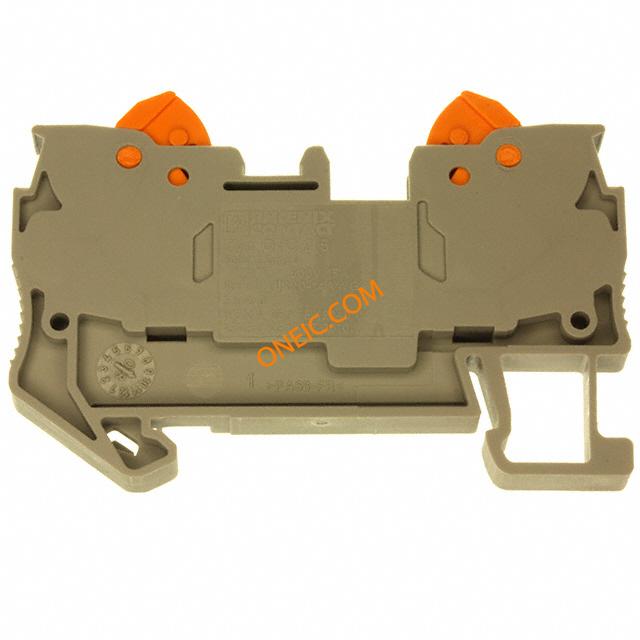

3206416
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks QTC 2.5 FEEDTHRU TERM BLK Conn Feed-Thru F 2 POS ST 24A CONN TERM BLK MOD 20-14AWG T/H Non-Fuse DIN Rail Terminal, 24A, 800V, Grey ,Quick Connect Termination Conn;TermBlk;DINRail;FeedThru;QuickConn;2;20-14AWG;Gray;6.2mmW Phoenix Contact QTC 系列 灰色 馈通端子块 , 24A, 800 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE QTC | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | cULus | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 15A | UL电压 | 600V |
| 电流 - IEC | 24A | IEC电压 | 800V |
| 额定电压 | 800 V | 极数 | 2Poles |
| 最大额定电流 | 24A | 最小输入电压 | 800V |
机械参数
| 颜色 | Gray | 深度 | 6.2 |
| 宽度 | 6.2 mm | 高度 | 39.3 mm |
| 长度 | 62.6 mm | 重量 | 0.369318 oz |
| 导线线规 | 20 → 14 AWG | 端接方式 | Quick Connect |
| 安装类型 | Straight | 电缆材料 | 0.5 → 2.5mm² |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 62.6 | 主要材料 | DINRail |
| 端子宽度 | 6.2mm | 端接排数 | 快速连接 |
| 插针孔直径 | 6.2mm | 端接样式 | IDC |
| 连接器颜色 | Grey | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 14-20 AWG | 线规或范围 - mm² | 0.5-2.5mm² |
产品信息
| 类型 | Feed-Thru | 连接器性别 | F |
| 系列 | QTC | 叠层数 | 单层 |
| 层数 | 1 | 基础产品编号 | QTC2.5 |
文档与媒体
相关型号
0801733
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINRail;Steel;Silver;7.50mm;35mm;2m
1204517
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers SZF 1-0 6X3 5 Digital Input Module SCREWDRIVER SLOT 0.6X3.5MM 7.13" Bladed screwdriver SZF 1-0,6X3,5 Screwdriver, blade: 0.6 x 3.5 x 100 mm, length 180 mm Actuationtool,forSTterminalblocks,size:0.6x3.5x100mm
1201798
Phoenix Contact
取り付け用金具類 PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Un-Perforated, 2.3mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din-Rail,NS35/15-2,3UNPERF2000MM,1=2meters CustomcutDIN-Rail
3030925
Phoenix Contact
Terminal Block Tools & Accessories PAI-4 TEST ADAPTER Conn Test Adapter PL/PL 1/1 POS ST 1 Port TEST ADAPTER TERM BLOCK GRAY Test apaptor for 4mm test plug TEST ADAPTOR TESTADAPTER,COLOR:GRAY Phoenix Contact 灰色 测试连接器适配器, 公
3206209
Phoenix Contact
Terminal Block Tools & Accessories ATP-QTC Connector Accessories Partition Plate CONN TERM BLK PARTITION PLATE Phoenix Contact 3206209 Partition Plate Terminal Block, Series: ATP-QTC PartitionPlate;TermBlk;Gray;64.4mmL;2mmW;46mmH Phoenix Contact ATP-QTC 系列 隔板
3022218
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories Snap-on End Bracket Polyamide Gray END BRACKET FOR 35 MM DIN RAIL Phoenix Contact 3022218 End Bracket Terminal Block, Series: CLIPFIX End bracket CLIPFIX 35 EndBracket;TermBlk;SnapOn;57mmL;9.5mmW
3022276
Phoenix Contact
Terminal Block Tools & Accessories CLIPFIX 35-5 Connector Accessories End Clamp Polyamide Gray END BRACKET TERM BLOCK SNAP ON Phoenix Contact 3022276 End Bracket Terminal Block, Series: CLIPFIX END CLAMP, DIN RAIL MOUNT EndBracket;TermBlk;SnapOn;35mmH;48.5mmL;5.5mmW Holder Phoenix Contact CLIPFIX 系列 端子架

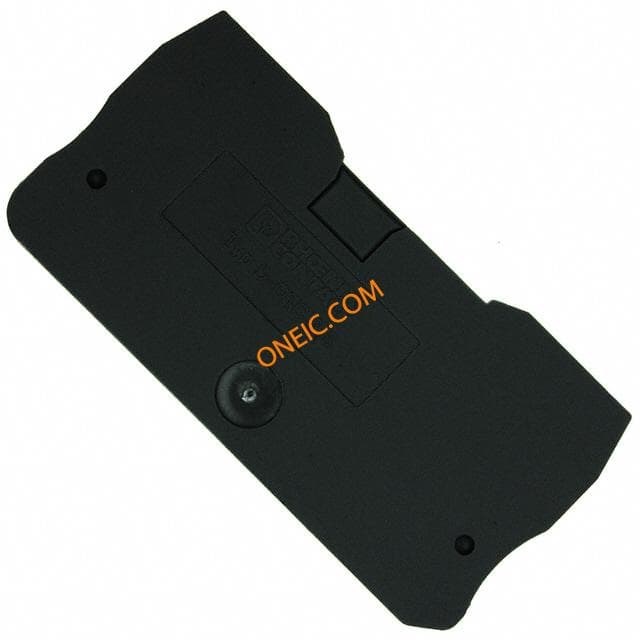

3206568
