3075728
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Conn Feed-Through Modular Terminal Blocks F 4 POS TERM BLOCK DIN Rail Terminal Blocks UTI 16 BU UTI16BU Phoenix Contact UTI Clipline 系列 蓝色 DIN 导轨端子 , 76A, 400 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE UT | 其他名称 | UTI 16 BU |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-2 | ||
电气参数
| 电流 - IEC | 76A | IEC电压 | 400V |
| 额定电压 | 400 V | 最大额定电流 | 76A |
机械参数
| 颜色 | Blue | 深度 | 12.2 |
| 导线线规 | 4-10 | 排数 | 2 |
| 剥线长度（范围） | 12mm | 端子宽度 | 12.2mm |
| 端接排数 | 混合 | 端接样式 | Screw |
| 触点数 | 4 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 4-10 AWG |
| 线规或范围 - mm² | 6-25mm² | ||
产品信息
| 类型 | Feed-Through Modular Terminal Blocks | 连接器性别 | F |
| 系列 | UT | 叠层数 | 单层 |
| 层数 | 1 | ||
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
0819194
Phoenix Contact
Unspecified Tools & Accessories UC-TM 12 UNICARD 40 SECTION UNICARD SHEETS 1 ROLL=40 LABELS Terminal Block Tools & Accessories UC-TM 12 UNICARD 40 SECTION Connector Accessories Terminal Block Marker Polyamide White UNICARDSHEETS,40-SECTION MarkerforTerminalBlocks;Sheet;White;Unlabeled;UC-TM12
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹
1201141
Phoenix Contact
Terminal Block Tools & Accessories AB/NS Connector Accessories Support Polyamide Gray DINRAIL SUPPORT INSULATING Phoenix Contact 1201141 DIN Rail Support Terminal Block, Series: AB/NS Mounting material AB/NS Support,forinsulatedmountingofDINrailsplastic,21mmhigh Phoenix Contact AB/NS 系列 DIN 导轨支撑

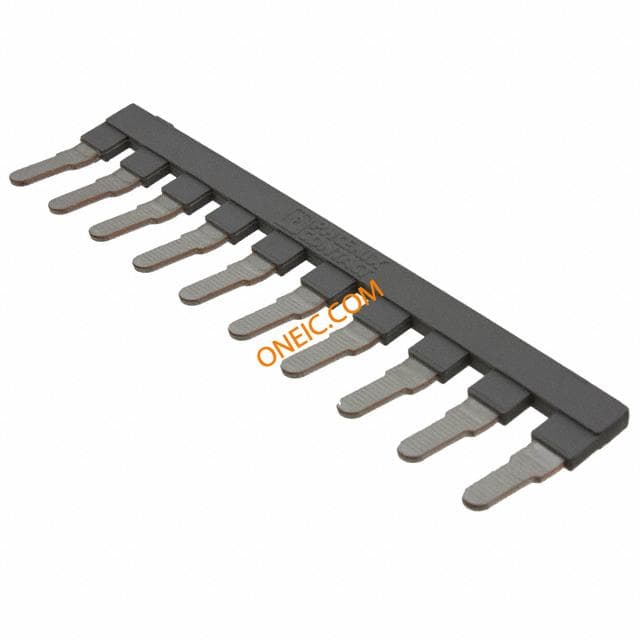

3006137
