点击放大查看

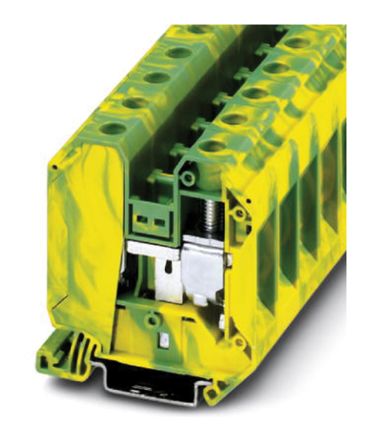

3047743
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | TERM BLOCK DIN Rail Terminal Blocks UT 35-PE IB UT35-PEIB Feed-Through Terminal |
| 分类 |
商业参数
| 商标名 | CLIPLINE UT | 其他名称 | UT 35-PE IB |
| 标准包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - IEC | 125A | ||
机械参数
| 颜色 | Green, Yellow | 剥线长度（范围） | 18mm |
| 端子宽度 | 16.0mm | 端接样式 | Screw |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 2-14 AWG | 线规或范围 - mm² | 1.5-50mm² |
产品信息
| 类型 | Ground, Earth | 系列 | UT |
| 层数 | 1 | ||
