点击放大查看
3046184
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DINレール・ターミナルブロック UT 4-MTD Conn Universal Terminal Blocks F 2 POS Screw ST 41A CONN TERM BLK MOD 26-10AWG GRAY Non-Fuse DIN Rail Terminal, 32A, 800V, Grey ,Screw Down Termination DIN Rail Terminal Blocks UT 4-MTD Conn;TermBlk;DINRail;Screw;1;2;26-10AWG;Gray;32A(Nom);800V(Nom);PA |
| 分类 |
商业参数
| 商标名 | CLIPLINE UT | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | cULus,CSA,VDE | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 30A | UL电压 | 600V |
| 电流 - IEC | 32A | IEC电压 | 800V |
| 额定电压 | 800 V | 极数 | 2Poles |
| 最大额定电流 | 32A | 最小输入电压 | 800V |
| 保护电压（VP）（2416） | 8kV | ||
机械参数
| 颜色 | Gray | 深度 | 6.2 |
| 宽度 | 6.2 mm | 高度 | 47.5 mm |
| 长度 | 57.8 mm | 重量 | 0.403534 oz |
| 导线线规 | 26 → 10 AWG | 端接方式 | Screw |
| 安装类型 | Straight | 安装样式 | DIN Rail |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 56.8 | 主要材料 | DINRail |
| 尺寸/外形 | 56.8mmLx6.2mmW | 剥线长度（范围） | 9mm |
| 端子宽度 | 6.2mm | 插针孔直径 | 6.2mm |
| 端接样式 | Screw | 连接器颜色 | Grey |
| 触点数 | 2 | 交叉孔直径 | 0.14to4mm^2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 螺纹/螺钉/孔尺寸 | M3 | 线规或范围 - AWG | 10-26 AWG |
| 线规或范围 - mm² | 0.14-6mm² | 额定扭矩（oz-in / mNm） | 0.6Nm(Min.) |
| 触点镀层厚度 - 柱 | 6.2mm | ||
产品信息
| 制造商 | 0.14-6mm² | 类型 | Universal Terminal Blocks |
| 连接器性别 | F | 系列 | UT |
| 产品特性 | Universal | 层数 | 1 |
| 基础产品编号 | UT4-MTD | ||
环境参数
| 工作温度 | +110°C | ||
相关型号
0801733
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINRail;Steel;Silver;7.50mm;35mm;2m
1051003
Phoenix Contact
Terminal Block Tools & Accessories 6.2mm BLANK STRIPS OF TEN MARKERS EACH Single Covers, Color Transparent CONN ACC MARKER STRIP UNPRINTED Phoenix Contact 1051003 Marker Strip Terminal Block, Series: ZB ZACK STRIP, UNPRINTED ZBMarkingStrip;TermBlk;6.2mm;Blank;White Marker; Width:6mm; for labelling by user Phoenix Contact ZB 系列 标记条
1205053
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers MED. SCREWDRIVER ScrewDriver, Bladed, Matches All Screw Terminal Blocks Up To 4.0mm Connection Cross Section, Blade 0.6 X 3.5mm, Without VDE Approval SCREWDRIVER SLOT 0.6X3.5MM 7.13" Tool, Driver ScrewDriver;180mm;0.6mm;3.5mm;100mm;35g
1207640
Phoenix Contact
取り付け用金具類 NS 35/ 7.5 PERF 755MM Connector Accessories Ns 35 DIN Rail Straight Steel Silver DIN RAIL 35X7.5MM SLOTTED 29.7" DIN rail,perforated,steel,35x7.5x755mm Mounting Hardware NS 35/ 7.5 PERF 755MM DinRail,NS35,Height:7.5mm,length:755mm DIN 导轨 顶帽式, NS35 穿孔型, 755mm x 35mm x 7.5mm
1201798
Phoenix Contact
取り付け用金具類 PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Un-Perforated, 2.3mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din-Rail,NS35/15-2,3UNPERF2000MM,1=2meters CustomcutDIN-Rail
3030925
Phoenix Contact
Terminal Block Tools & Accessories PAI-4 TEST ADAPTER Conn Test Adapter PL/PL 1/1 POS ST 1 Port TEST ADAPTER TERM BLOCK GRAY Test apaptor for 4mm test plug TEST ADAPTOR TESTADAPTER,COLOR:GRAY Phoenix Contact 灰色 测试连接器适配器, 公
1051016:0001
Phoenix Contact
Terminal Block Tools & Accessories 6.2mm HZ STRIP 1-10 Connector Accessories Zack Marker Strip 10 Section Printed Horizontally With the Numbers From 1 to 10 White Polyamide CONN ACC MARKER STRIP PREPRINT ZBMarkingStrip;TermBlk;Horiz;6mm;Nos1-10;1strip10labels

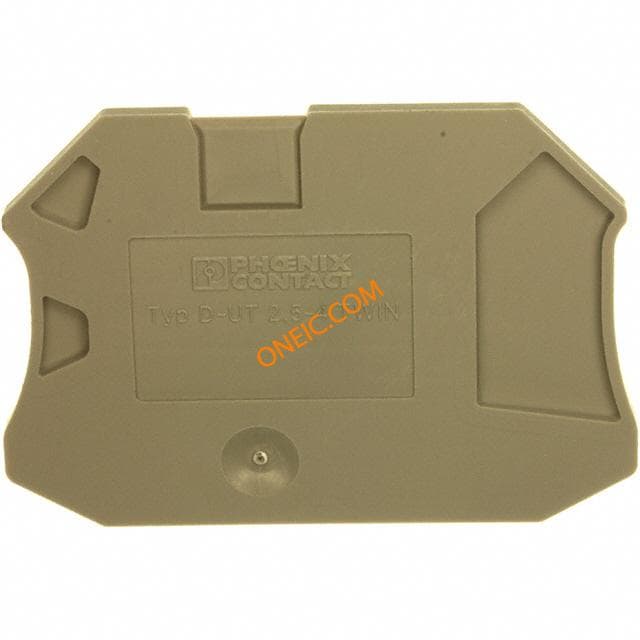

3047141
