点击放大查看

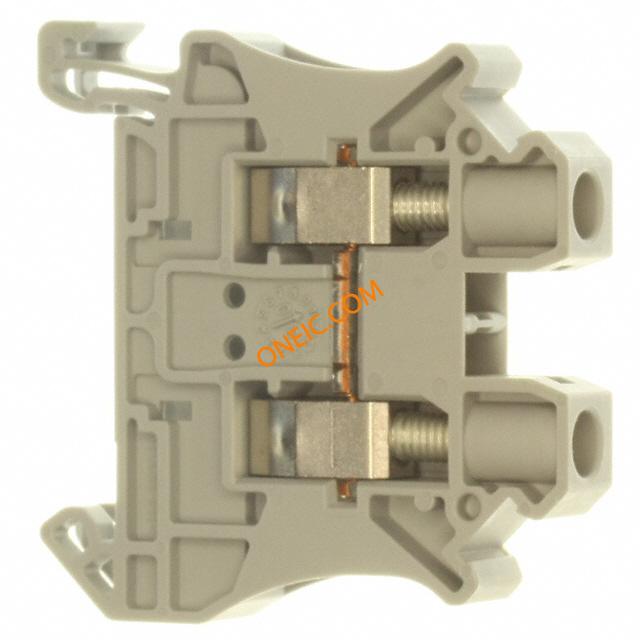

3044131
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UT 6 FEEDTHRU TERM BLOCK Conn Universal Terminal Blocks F 2 POS Screw ST 57A CONN TERM BLK MOD 24-8AWG GRAY Non-Fuse DIN Rail Terminal, 41A, 1000V, Grey ,Screw Down Termination Conn;TermBlk;FeedThru;Screw;2;24-8AWG;Gray;8.2mmW;41A(Nom);1000V Splice terminal: rail; ways:1; terminals:2; grey; 0.2÷6mm2; 57A Phoenix Contact UT 系列 灰色 馈通端子块 , 41A, 1000 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE UT | 零件号别名 | 6 UT |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | ATEX Ex | 抗辐射加固 | No |
| 认证机构 | cULus,CSA,VDE | 安全类别 | ATEX |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 50A | UL电压 | 600V |
| 电流 - IEC | 41A | IEC电压 | 1000V |
| 测试电压 | 8kV | 额定电压 | 1000 V |
| 极数 | 2Poles | 连接器阻抗 | rail |
| 最大额定电流 | 41A | 最小输入电压 | 1000V |
| 最小供电电压 | 1000V | 保护电压（VP）（2416） | 8kV |
机械参数
| 颜色 | Gray | 深度 | 8.2 mm |
| 宽度 | 8.2 mm | 高度 | 55 mm |
| 长度 | 47.7 mm | 重量 | 0.492072 oz |
| 导线线规 | 24 → 8 AWG | 端接方式 | Screw |
| 基体材料 | polyamide | 安装类型 | Straight |
| 电缆材料 | 0.2 → 10mm² | 安装样式 | DIN Rail |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 46.9 mm | 包装数量 | 50 |
| 主要材料 | DINRail | 尺寸/外形 | 8.2mmWx46.9mmLx55mm(Max.)H |
| 剥线长度（范围） | 10mm | 端子宽度 | 8.2mm |
| 端接排数 | 螺钉拧紧 | 端接样式 | Screw |
| 导线剥线长度 | 10mm | 连接器颜色 | Grey |
| 触点数 | 2 | 交叉孔直径 | 0.2to6mm^2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 8-24 AWG | 线规或范围 - mm² | 0.2-10mm² |
| 触点镀层厚度 - 柱 | 8.2mm | ||
产品信息
| 制造商 | 0.2-10mm² | SPG | 50 |
| 类型 | Universal Terminal Blocks | 连接器性别 | F |
| 系列 | UT | 产品特性 | Universal |
| 单元数量 | 1 | 叠层数 | 单层 |
| 层数 | 1 | 基础产品编号 | UT6 |
环境参数
| 工作温度 | +110°C | ||
