点击放大查看

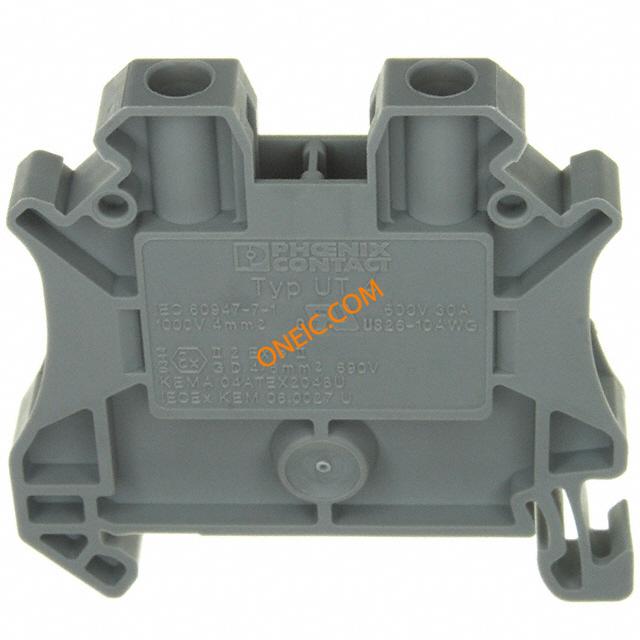

3044102
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UT 4 DIN RAIL TERM. Conn Universal Terminal Blocks F 2 POS Screw ST 41A CONN TERM BLK MOD 26-10AWG GRAY Non-Fuse DIN Rail Terminal, 32A, 1000V, Grey ,Screw Down Termination TERMINAL BLOCK, DIN, 4MM, GREY Conn;TermBlk;DINRail;FeedThru;Screw;2;26-10AWG;Gray;30ANom;600VNom Splice terminal: rail; ways:1; terminals:2; grey; 0.14÷4mm2; 41A Phoenix Contact UT 系列 灰色 馈通端子块 , 32A, 1000 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE UT | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 标准 | ATEX Ex |
| 海关税号 | 85369010 | 认证机构 | :EN 60079, EN 60241 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 30A | UL电压 | 600V |
| 电流 - IEC | 32A | IEC电压 | 1000V |
| 测试电压 | 8kV | 额定电压 | 1000 V |
| 极数 | :1 | 工作电压 | :800V |
| 连接器阻抗 | rail | 最大额定电流 | 32A |
| 最小输入电压 | 1000V | ||
机械参数
| 颜色 | Gray | 深度 | 6.2 |
| 间距 | :6.2mm | 宽度 | 6.2 mm |
| 高度 | 55 mm | 长度 | 47.7 mm |
| 重量 | 0.312175 oz | 导线线规 | 26 → 10 AWG |
| 端接方式 | Screw | 基体材料 | polyamide |
| 安装类型 | Straight | 端子类型 | :Screw |
| 连接器类型 | :Terminal Block, DIN Rail | 接触镀层 | :- |
| 安装样式 | DIN Rail | 排数 | 2 |
| 触头材料 | :- | 壳体材料 | Polyamide |
| 总长度 | 46.9 | 包装数量 | 50 |
| 主要材料 | DINRail | 剥线长度（范围） | 9mm |
| 端子宽度 | 6.2mm | 端接样式 | Screw |
| 导线剥线长度 | 9mm | 连接器颜色 | Grey |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 10-26 AWG |
| 线规或范围 - mm² | 0.14-6mm² | 第一连接器安装类型 | :DIN Rail |
产品信息
| SPG | 50 | 类型 | Universal Terminal Blocks |
| 连接器性别 | F | 系列 | UT |
| 产品特性 | Universal | 单元数量 | 1 |
| 层数 | 1 | 基础产品编号 | UT4 |
环境参数
| 工作温度 | +110°C | ||
