点击放大查看

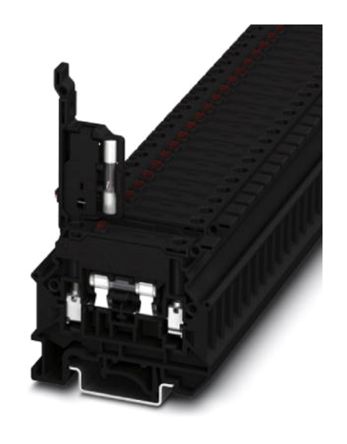

3000541
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | CONN TERM BLOCK DIN Rail Terminal Blocks UK 5-HESILED 60 N UK5-HESILED60N Fused DIN Rail Terminal |
| 分类 |
商业参数
| 商标名 | CLIPLINE UK | 其他名称 | UK 5-HESILED 60 N |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - IEC | 6.3A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 6.3A |
机械参数
| 颜色 | Black | 剥线长度（范围） | 8mm |
| 端子宽度 | 8.2mm | 端接排数 | 螺钉 |
| 端接样式 | Screw | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-24 AWG |
| 线规或范围 - mm² | 0.2-6mm² | ||
产品信息
| 类型 | Disconnect | 系列 | UK |
| 产品特性 | LED | 保险丝类型 | 5mm x 20mm |
| 断开类型 | Fuse, Lever | 层数 | 1 |
