1874497
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks SMSTB 2.5/ 9-ST- 5,08 BK Conn Terminal Block F 9 POS 5.08mm Screw 12A TERM BLOCK PLUG 9POS 5.08MM SMSTB25/9-ST-508BK |
| 分类 |
商业参数
| 产品 | Plugs | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 包装方式 | Bulk | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 安装类型 | Free Hanging (In-Line) |
| 接触镀层 | Tin | 插头进线方向 | 225° |
| 壳体材料 | Polyamide | 端接样式 | Screw |
| 触点数 | 9 | 位数 | 9 |
| 接线端子类型 | Plug, Female Sockets | 线规或范围 - AWG | 24-12 |
产品信息
| 类型 | Wire to Wire | 连接器性别 | F |
| 系列 | SMSTB | 产品特性 | Retention Latches (Non-Wire Side) |
| 层数 | 1 | 每层位数 | 9 |
相关型号
1788790
Phoenix Contact
Pluggable Terminal Blocks MSTBVK 2.5/ 9-G-5.08 Conn Terminal Block HDR 9 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG Header for PCB plug connector MSTBVK 2,5/ 9-G-5,08 MSTBVK25/9-G-508 Phoenix Contact MSTBVK 系列 绿色 印刷电路板管座 , 12A, 630 V
1757310
Phoenix Contact
Pluggable Terminal Blocks 5.08 9P HEADER 90DEG Conn Shrouded Header HDR 9 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 9POS R/A 5.08MM Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;9Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 9路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A

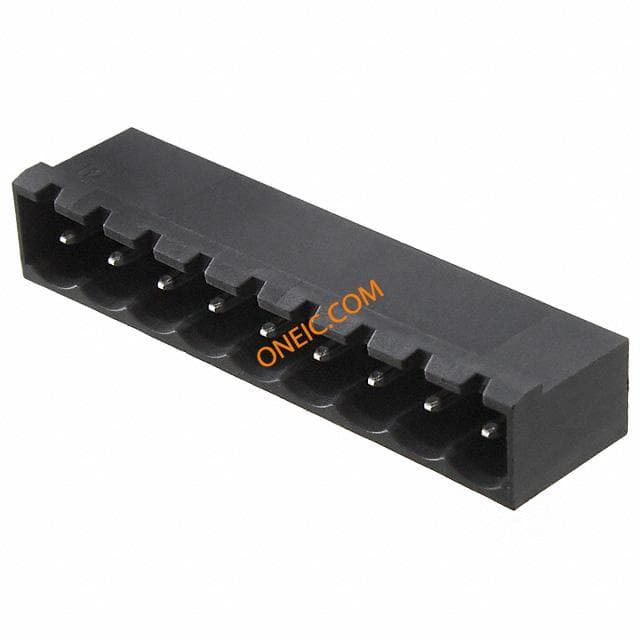

1746952
Phoenix Contact
Pluggable Terminal Blocks MSTBA 2.5/ 9-G-5.0 Conn Wire to Board HDR 9 POS 5.08mm TERM BLOCK HDR 9POS R/A 5.08MM Accessories, MSTBVA 2,5/13-G-5,08 AU MSTBA25/9-G-508BK
1762444
Phoenix Contact
Pluggable Terminal Blocks MDSTB 2 5/ 9-G1-5 08 Conn Shrouded Header HDR 18 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 18POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/ 9-G1-5,08 MDSTB25/9-G1-508 Phoenix Contact COMBICON MDSTB 系列 9路 5.08mm节距 PCB 接线端子块 , 焊接端接, 10A

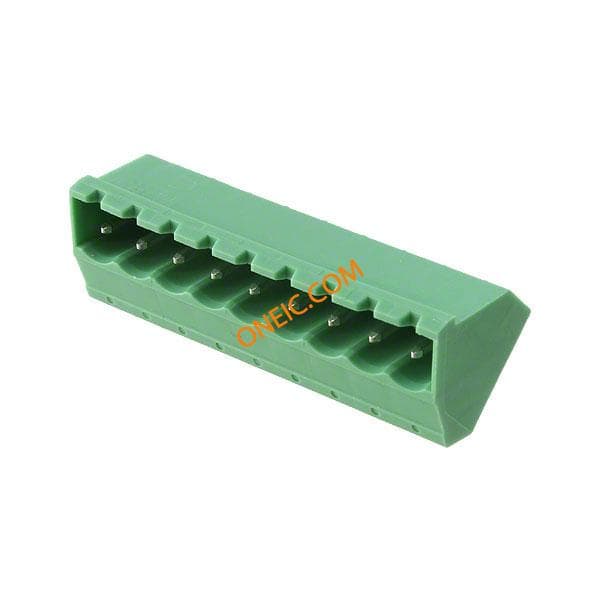

1767449
