1757310

点击放大查看

1757310

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks 5.08 9P HEADER 90DEG Conn Shrouded Header HDR 9 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 9POS R/A 5.08MM Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;9Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 9路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Headers交货时间20 Days
商标名COMBICON Control子类别Connector Headers and PCB Receptacles
零件号别名2.5/ 9-G-5.08 MSTBA产品类别Pluggable Terminal Blocks
标准包装数量100工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
标准EN-VDE认证机构UL,CUL,CSA
材料阻燃等级UL 94 V-0

电气参数

电流15A电压300V
额定电压250 V极数9Poles
输出电流12A最大额定电流12 A
最小输入电压320V保护电压（VP）（2416）4kV

机械参数

颜色Green深度12
间距0.200" (5.08mm)高度8.6
重量5.396916 oz包装方式Bulk
方向直角端接方式Solder
孔径1.4mm外壳颜色Green
安装类型Right Angle接触镀层Tin
安装样式SolderMount排数1
壳体材料Polybutylene Terephthalate总长度47.72
主要材料PCB尺寸/外形40.64mm
端接排数焊接插针孔直径5.08mm
端接样式Through Hole排针方向90°, Right Angle
触点数9位数9
接线端子类型Header, Male Pins, Shrouded (4 Side)绝缘材料 - 材质PBT
法兰下方引脚尺寸1x1mm

产品信息

类型Shrouded Header级别SingleLevel
连接器性别HDR系列MSTBA
产品特性90DegCAD图纸3D CAD 模型
制造商全称COMBICON行业别名MSTBA 2, 5/ 9-G-5, 08
层数1基础产品编号MSTBA2,5/9-G-5,08
每层位数9

文档与媒体

PDF 文档
1757310

相关型号

1777358

1777358

Phoenix Contact

Pluggable Terminal Blocks FRONT-MSTB 2.5/ 9- Conn Terminal Block F 9 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 9POS STR 5.08MM Printed-circuit board connector FRONT-MSTB 2,5/ 9-ST-5,08 FRONT-MSTB25/9-ST-508 Phoenix Contact COMBICON FRONT-MSTB 系列 5.08mm 节距 9 路 母 绿色 插头, 螺钉端接

¥115.7360
详情
1874497

1874497

Phoenix Contact

Pluggable Terminal Blocks SMSTB 2.5/ 9-ST- 5,08 BK Conn Terminal Block F 9 POS 5.08mm Screw 12A TERM BLOCK PLUG 9POS 5.08MM SMSTB25/9-ST-508BK

¥50.5240
详情
1808887

1808887

Phoenix Contact

プラグ着脱可能ターミナルブロック MSTBC 2.5/ 9-ST-5.08 Conn Wire to Wire F 9 POS 5.08mm Crimp ST Cable Mount TERM BLOCK PLUG 9POS STR 5.08MM Printed-circuit board connector MSTBC 2,5/ 9-ST-5,08 Pluggable Terminal Blocks MSTBC 2.5/ 9-ST-5.08 MSTBC25/9-ST-508

¥12.8520
详情
1826351

1826351

Phoenix Contact

Pluggable Terminal Blocks 5.08 9P PLUG 45DEG Conn Terminal Block F 9 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG 9POS 5.08MM Printed-circuit board connector SMSTB 2,5/ 9-ST-5,08 Conn;TermBlk;Plug;Screw;9;5.08mm;30-12AWG;10A;300V;PA

¥46.1040
详情

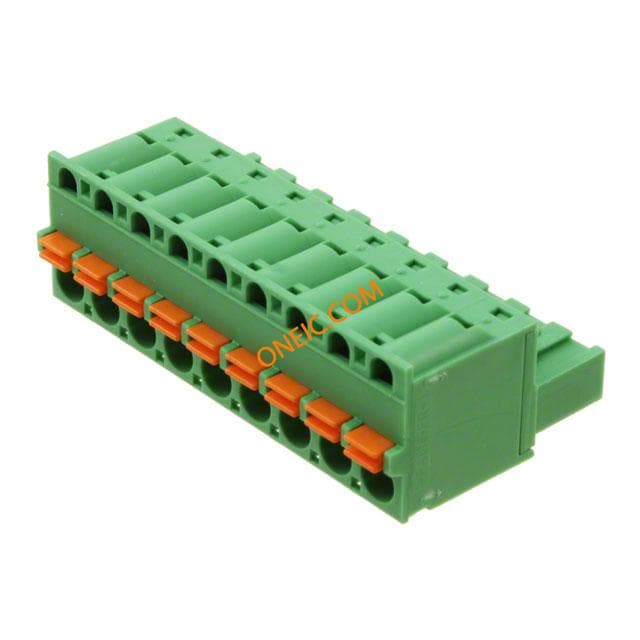

1873126
