点击放大查看

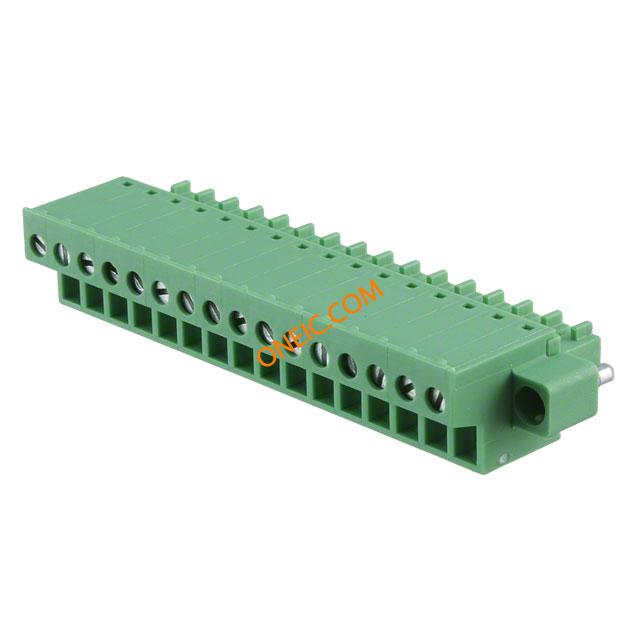

1850990
| 制造商 | |
| 描述 | Pluggable Terminal Blocks FRNT-MC 1 5/16-STF-3 Conn Terminal Block F 16 POS 3.81mm Screw ST Panel Mount 8A TERM BLOCK PLUG 16POS STR 3.81MM Printed-circuit board connector FRONT-MC 1,5/16-STF-3,81 Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 16, Connection type: Screw ... Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 16, Connection type: Screw connection, Color: green FRONT-MC15/16-STF-381 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Plugs | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 8A | 电压 | 300V |
| 额定电压 | 160 V | 最大额定电流 | 8 A |
| 最小输入电压 | 160V | ||
机械参数
| 颜色 | Green | 深度 | 21.7 |
| 间距 | 3.81 mm | 高度 | 12.3 |
| 重量 | 3.492122 oz | 包装方式 | Bulk |
| 导线线规 | 16-30 AWG | 端接方式 | Screw |
| 安装类型 | Panel Mount | 接触镀层 | Tin |
| 排数 | 1 | 插头进线方向 | 180° |
| 壳体材料 | Polyamide | 总长度 | 71.35 |
| 端接样式 | Screw | 触点数 | 16 |
| 位数 | 16 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 28-16 | ||
产品信息
| 类型 | Wire to Wire | 连接器性别 | F |
| 系列 | MC | 产品特性 | Flange |
| 层数 | 1 | 每层位数 | 16 |
相关型号

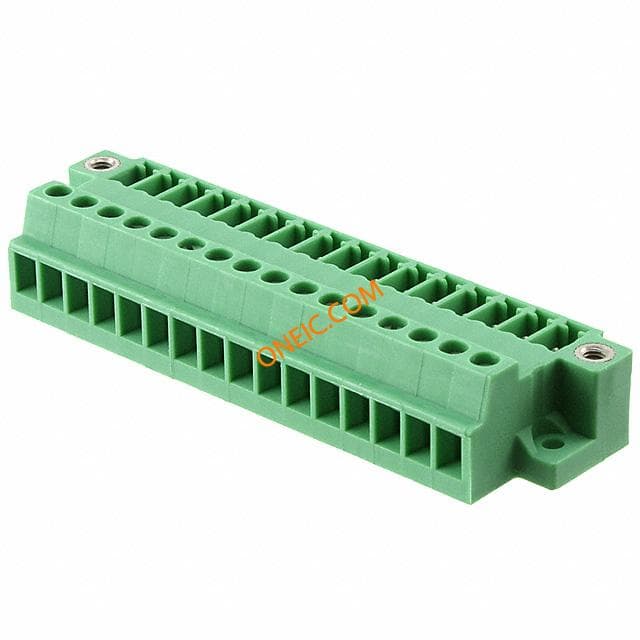

1833166
Phoenix Contact
Pluggable Terminal Blocks MCVU 1 5/16-GFD-3 81 Conn Terminal Block F 16 POS 3.81mm Screw 8A TERM BLOCK RCPT 16POS 3.81MM Plug MCVU 1,5/16-GFD-3,81 PluggableTerminalBlocks
¥245.8200
详情

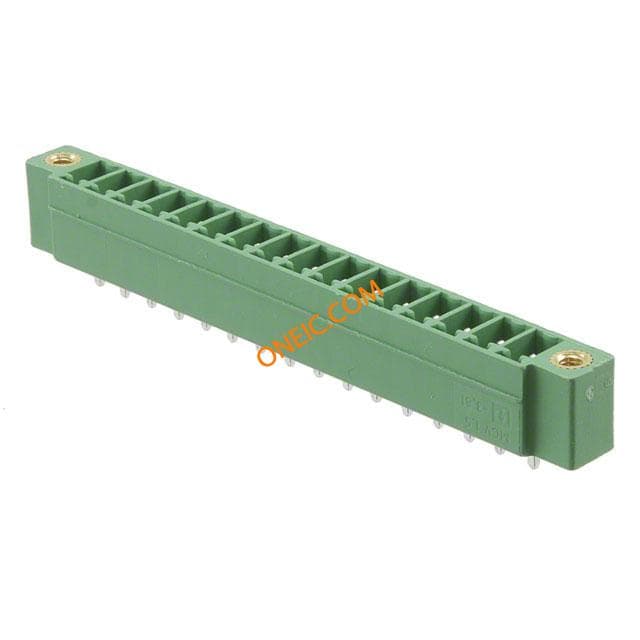

1830732
