1830732
| 制造商 | |
| 描述 | Pluggable Terminal Blocks MCV 1 5/16-GF-3 81 Conn Shrouded Header HDR 16 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 16POS VERT 3.81MM Header MCV 1,5/16-GF-3,81 MCV15/16-GF-381 |
| 分类 |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 8A | 电压 | 300V |
| 额定电压 | 160 V | 最大额定电流 | 8 A |
| 最小输入电压 | 160V | 最小供电电压 | 160V |
机械参数
| 颜色 | Green | 深度 | 7.25 mm |
| 间距 | 0.150" (3.81mm) | 高度 | 9.2 mm |
| 重量 | 4 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Straight | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 1 |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 71.35 mm |
| 端接样式 | Through Hole | 排针方向 | Vertical |
| 触点数 | 16 | 位数 | 16 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | MCV | 产品特性 | Flange |
| 层数 | 1 | 每层位数 | 16 |
文档与媒体
相关型号
1850990
Phoenix Contact
Pluggable Terminal Blocks FRNT-MC 1 5/16-STF-3 Conn Terminal Block F 16 POS 3.81mm Screw ST Panel Mount 8A TERM BLOCK PLUG 16POS STR 3.81MM Printed-circuit board connector FRONT-MC 1,5/16-STF-3,81 Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 16, Connection type: Screw ... Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 16, Connection type: Screw connection, Color: green FRONT-MC15/16-STF-381
1897681
Phoenix Contact
Pluggable Terminal Blocks QC 0 5/16-STF-3 81 Conn Terminal Block F 16 POS 3.81mm ST Panel Mount 6A TERM BLOCK PLUG 16POS STR 3.81MM QC05/16-STF-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 16 路 母 绿色 插头, IDC端接

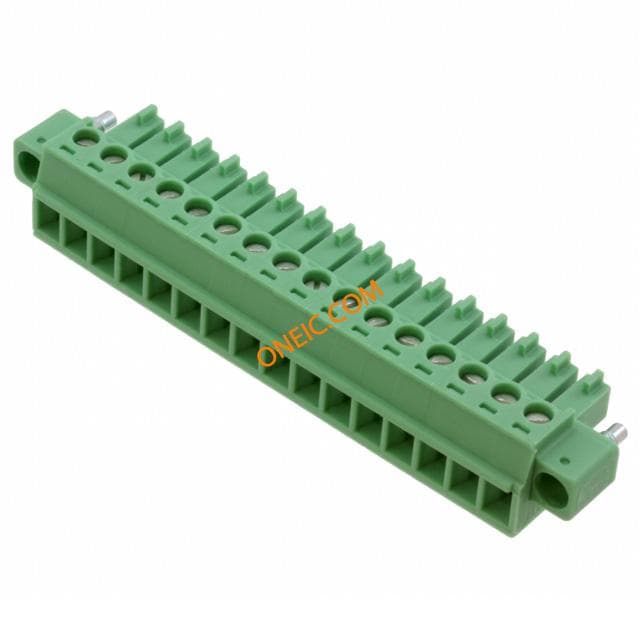

1827842
