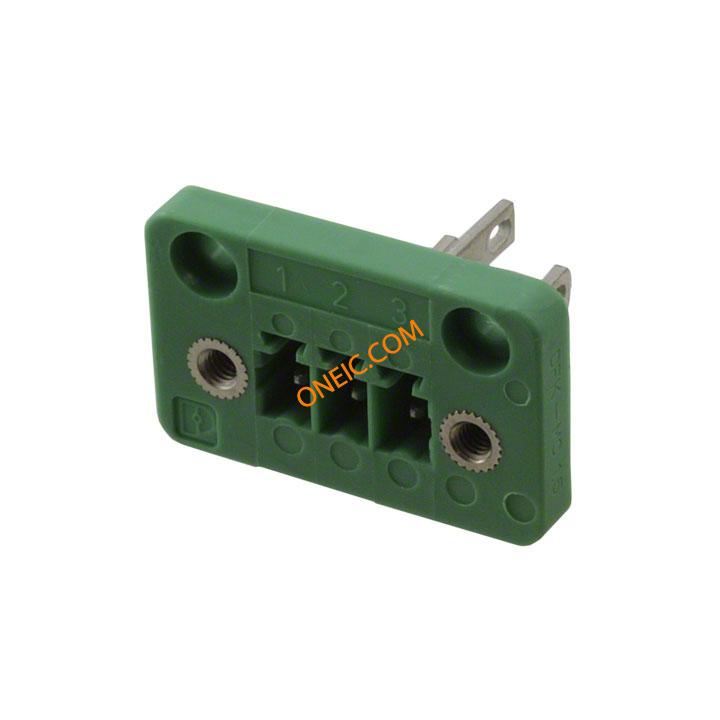

1829358
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 3.81mm 3P HDR W/FLG FEED-THROUGH Conn Wire to Wire HDR 3 POS 3.81mm Solder Lug ST Wall Mount PAN MNT HEADER 3.81MM SOLD 3POS Header for PCB plug connector DFK-MC 1,5/ 3-GF-3,81 PLUGCOMPONENT,PITCH:3.81MM,POS3 |
| 分类 |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 - UL | 8A | UL电压 | 300V |
| 额定电压 | 160 V | 最大额定电流 | 8 A |
| 最小输入电压 | 160V | 最小供电电压 | 160V |
机械参数
| 颜色 | Green | 深度 | 20.4 mm |
| 间距 | 0.150" (3.81mm) | 宽度 | 1.017" (25.82mm) |
| 高度 | 16.2 mm | 重量 | 7 oz |
| 端接方式 | Solder Lug | 安装类型 | Straight |
| 接触镀层 | Tin | 安装样式 | Panel / Box - Feed Through |
| 排数 | 1 | 面板厚度 | 0.020 ~ 0.158" (0.5 ~ 4.0mm) |
| 壳体材料 | Polyamide | 总长度 | 25.82 mm |
| 面板安装类型 | Screw Mount - Front Flange | 触点数 | 3 |
| 线规或范围 - AWG | 28-16 | 后面板接线方式 | Quick Connect - 0.110" (2.80mm), Solder Eyelet |
| 前面板接线方式 | Header, Male Pins | ||
产品信息
| 类型 | Wire to Wire | 连接器性别 | HDR |
| 系列 | DFK-MC | 产品特性 | Threaded Mating Lock |
| 层数 | 1 | 每层位数 | 3 |
文档与媒体
相关型号
1897555
Phoenix Contact
Pluggable Terminal Blocks QC 0.5/ 3-STF-3.81 Conn Terminal Block F 3 POS 3.81mm ST Panel Mount 6A TERM BLOCK PLUG 3POS STR 3.81MM Printed-circuit board connector QC 0,5/ 3-STF-3,81 QC05/3-STF-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 3 路 母 绿色 插头, IDC端接
1734634
Phoenix Contact
Terminal Block Tools & Accessories CODING SECTION CP-MSTB Connector Accessories Coding Section Is Inserted Into The Slot On The Plug Or Inverted Header Red TERM BLK PLUG CODE SECTION RED CP-MSTB KEYINGPROFILE,REDINSULATINGMATERIAL

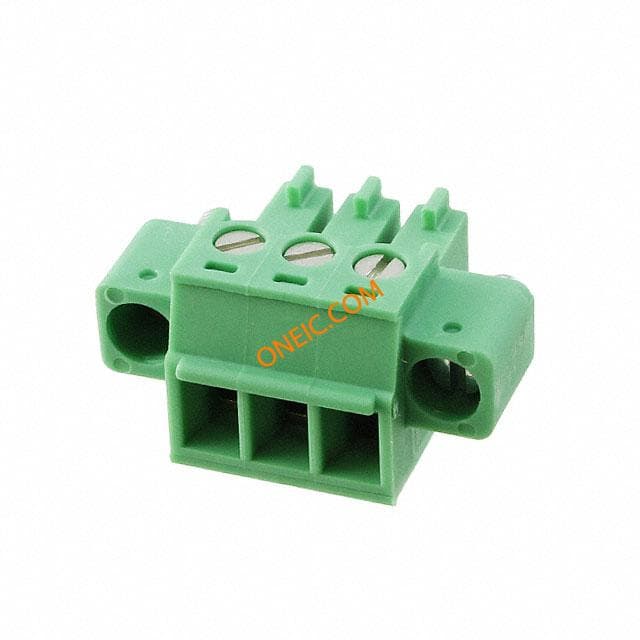

1827716
