1803497

点击放大查看

1803497

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks 3.81 9P HEADER 180D Conn Shrouded Header HDR 9 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 9POS VERT 3.81MM Header for PCB plug connector MCV 1,5/ 9-G-3,81 HEADER, VERTICAL, 3.81MM, 9WAY Conn;TermBlk;PCB;Header;SnglLvl;Sldr;9Pole;3.81mmPitch;COMBICON Phoenix Contact MINI COMBICON MCV 系列 3.81mm 节距 9 路 公 绿色 直 PCB 管座, 通孔, 焊接端接
分类
连接器解决方案接线端子螺丝接线端子
对参数有疑问？问 AI 助手

商业参数

产品Headers商标名COMBICON Control
产品类别Pluggable Terminal Blocks标准包装数量100
工厂包装数量50

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant标准CSACertified,cULListed,ULListed
海关税号85369010认证机构UL,CUL,CSA
材料阻燃等级UL 94 V-0

电气参数

电流8A电压300V
量程（°/s）:PHOENIX - MCV Series额定电压160 V
极数9Poles输出电流8A
标称电压160V最大额定电流8 A
最小输入电压160V最小供电电压160V
保护电压（VP）（2416）2.5kV

机械参数

颜色Green深度7.25 mm
间距0.150" (3.81mm)高度9.2 mm
长度7 mm重量4 oz
包装方式Bulk端接方式Solder
引脚间距:3.81mm孔径1.2mm
外壳颜色Green安装类型Straight
接触镀层Tin安装样式Through Hole
排数1材料表面处理:-
触头材料:-壳体材料Polybutylene Terephthalate
总长度35.68 mm主要材料PCB
尺寸/外形35.68mmLx18.7mmWx11.1mmH插针孔直径3.81mm
端接样式Through Hole排针方向Vertical
触点数9接触件端接:Through Hole Vertical
位数9接线端子类型Header, Male Pins, Shrouded (4 Side)
绝缘材料 - 材质PBT法兰下方引脚尺寸0.8x0.8mm

产品信息

类型Shrouded Header级别SingleLevel
连接器性别HDR系列MCV
制造商全称COMBICON层数1
基础产品编号MCV1,5/9-G-3,81每层位数9

文档与媒体

PDF 文档
1803497
PDF 文档
6251.pdf

相关型号

1897461

1897461

Phoenix Contact

Pluggable Terminal Blocks 9P 3.81mm 180DEG Conn Terminal Block F 9 POS 3.81mm ST Cable Mount 6A TERM BLOCK PLUG 9POS STR 3.81MM QC05/9-ST-381 Phoenix Contact MINI COMBICON QC 系列 3.81mm 节距 9 路 母 绿色 插头, IDC端接

¥58.8880
详情
1827046

1827046

Phoenix Contact

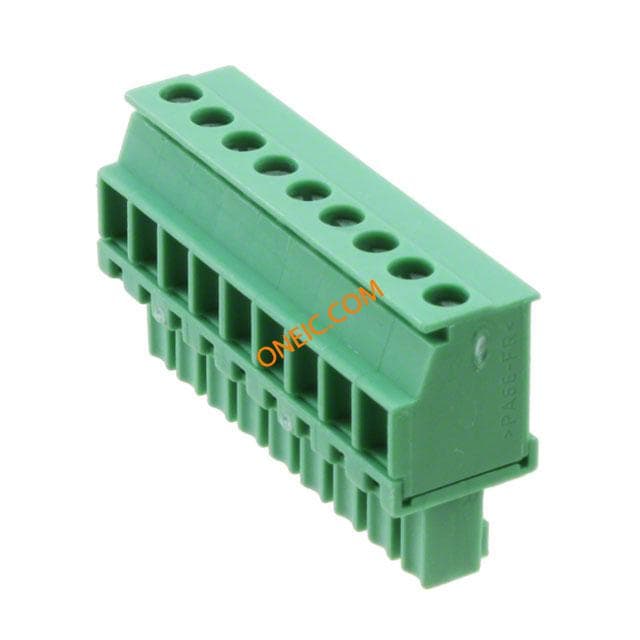

プラグ着脱可能ターミナルブロック 3.81 9P PLUG 270DEG Conn Terminal Block F 9 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 9POS 3.81MM Printed-circuit board connector MCVW 1,5/ 9-ST-3,81 Pluggable Terminal Blocks 3.81 9P PLUG 270DEG Conn Terminal Blocks F 9 POS 3.81mm Screw ST Cable Mount 8A PLUG, FREE, R/A, 3.81MM, 9WAY Conn;TermBlk;Plug;Screw;9;3.81mm;30-14AWG;8A;300V;PA;M2

¥54.3600
详情
1875496

1875496

Phoenix Contact

Pluggable Terminal Blocks IMCV 1.5/ 9-G-3.81 Conn Wire to Board HDR 9 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 9POS VERT 3.81MM Header for PCB plug connector IMCV 1,5/ 9-G-3,81 Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, ... Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Pitch: 3.81 mm, Color: green, Metal surface: Sn, Assembly: Soldering IMCV15/9-G-381 Phoenix Contact COMBICON IMCV 系列 3.81mm节距 9路 印刷电路板接线端子块, 焊接端接, 8A

¥36.9920
详情
1851119

1851119

Phoenix Contact

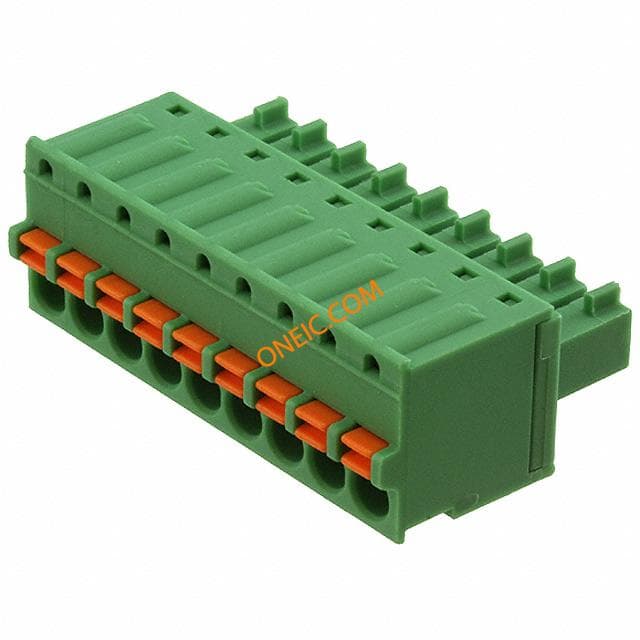

Pluggable Terminal Blocks FK-MCP1 5/ 9-ST-3 81 Conn Terminal Block F 9 POS 3.81mm ST Cable Mount 8A TERM BLOCK PLUG 9POS STR 3.81MM Printed-circuit board connector FK-MCP 1,5/ 9-ST-3,81 FK-MCP15/9-ST-381 Phoenix Contact MINI COMBICON FK-MCP 系列 3.81mm 节距 9 路 母 绿色 插头, 弹簧笼端接

¥73.5080
详情
1827198

1827198

Phoenix Contact

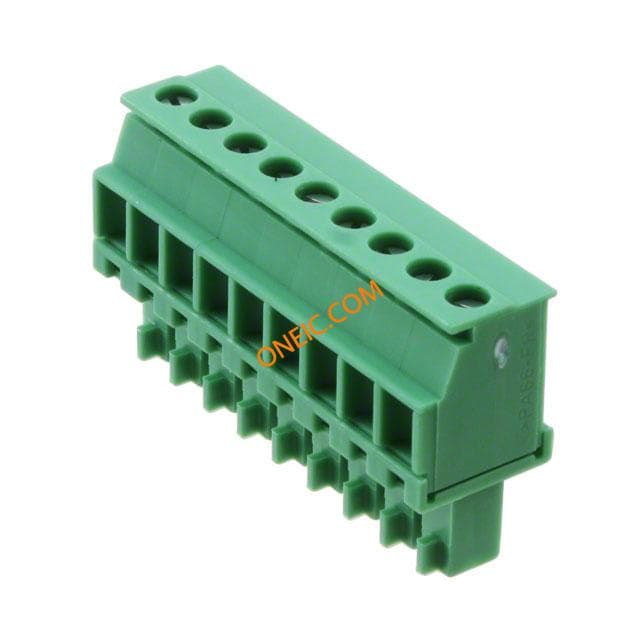

Pluggable Terminal Blocks 3.81 9P PLUG 90DEG Conn Terminal Block F 9 POS 3.81mm Screw ST Cable Mount 8A TERM BLOCK PLUG 9POS 3.81MM Printed-circuit board connector MCVR 1,5/ 9-ST-3,81 PLUG, FREE, R/A, 3.81MM, 9WAY Conn;TermBlk;Plug;Screw;9;3.81mm;30-14AWG;8A;300V;PA;M2
