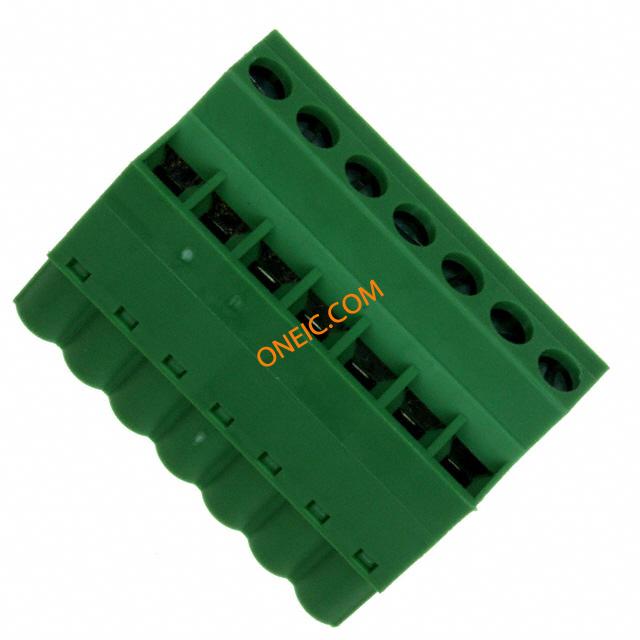

1779466
| 制造商 | |
| 描述 | プラグ着脱可能ターミナルブロック FRONT-MSTB 2 5/ 7-ST Conn Terminal Block F 7 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 7POS STR 5MM Printed-circuit board connector FRONT-MSTB 2,5/ 7-ST Pluggable Terminal Blocks FRONT-MSTB 2 5/ 7-ST FRONT-MSTB25/7-ST Phoenix Contact COMBICON FRONT-MSTB 系列 5mm 节距 7 路 母 绿色 插头, 螺钉端接 |
| 分类 |
商业参数
| 产品 | Plugs | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Terminal Blocks |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 27.2 |
| 间距 | 0.197" (5.00mm) | 高度 | 15 |
| 重量 | 1.323 lbs | 材料（通用） | 聚酰胺，镀锡 |
| 包装方式 | Bulk | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 安装类型 | Cable Mount |
| 连接器类型 | 母座 | 接触镀层 | Tin |
| 排数 | 1 | 插头进线方向 | 180° |
| 壳体材料 | Polyamide | 总长度 | 35 |
| 端接排数 | 螺钉 | 端接样式 | Screw |
| 触点数 | 7 | 位数 | 7 |
| 接线端子类型 | Plug, Female Sockets | 线规或范围 - AWG | 24-12 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | MSTB | 产品特性 | Retention Latches (Non-Wire Side) |
| 行业别名 | FRONT-MSTB 2, 5/ 7-ST | 层数 | 1 |
| 每层位数 | 7 | ||
