点击放大查看
1762745
| 制造商 | |
| 描述 | Pluggable Terminal Blocks MDSTB 2 5/ 7-G1 Conn Shrouded Header HDR 14 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 14POS R/A 5MM Header for PCB plug connector MDSTB 2,5/ 7-G1 MDSTB25/7-G1 Phoenix Contact COMBICON MDSTB 系列 7路 5mm节距 PCB 接线端子块 , 焊接端接, 10A |
| 分类 |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 10 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 22 |
| 间距 | 5 mm | 高度 | 28.5 |
| 重量 | 1.323 lbs | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Right Angle | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | 锡 | 壳体材料 | Polyamide |
| 总长度 | 37 | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 排针方向 | 90°, Right Angle |
| 触点数 | 7 | 位数 | 14 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | MDSTB | 层数 | 2 |
| 每层位数 | 7 | ||
文档与媒体
相关型号
1752551
Phoenix Contact
Pluggable Terminal Blocks MSTB 2.5/ 7-ST AU TERM BLOCK PLUG 7POS STR 5MM Misc Products MSTB25/7-STAU
1779466
Phoenix Contact
プラグ着脱可能ターミナルブロック FRONT-MSTB 2 5/ 7-ST Conn Terminal Block F 7 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 7POS STR 5MM Printed-circuit board connector FRONT-MSTB 2,5/ 7-ST Pluggable Terminal Blocks FRONT-MSTB 2 5/ 7-ST FRONT-MSTB25/7-ST Phoenix Contact COMBICON FRONT-MSTB 系列 5mm 节距 7 路 母 绿色 插头, 螺钉端接
1792579
Phoenix Contact
プラグ着脱可能ターミナルブロック 5.00 7P PLUG 270D Conn Terminal Block F 7 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 7POS 270DEG 5MM Printed-circuit board connector MVSTBW 2,5/ 7-ST Pluggable Terminal Blocks 5.00 7P PLUG 270D Conn;TermBlk;Plug;Screw;7;5mm;30-12AWG;10A;300V;PA
1768817
Phoenix Contact
プラグ着脱可能ターミナルブロック 5.00 7P PLUG 45DEG Conn Terminal Block F 7 POS 5mm Screw Cable Mount 12A TERM BLOCK PLUG 7POS 225DEG 5MM Printed-circuit board connector SMSTB 2,5/ 7-ST Pluggable Terminal Blocks 5.00 7P PLUG 45DEG Conn;TermBlk;Plug;Screw;7;5mm;30-12AWG;10A;300V;PA
1792061
Phoenix Contact
Pluggable Terminal Blocks 5.00 7P PLUG 90DEG Conn Terminal Block F 7 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 7POS 90DEG 5MM Printed-circuit board connector MVSTBR 2,5/ 7-ST Conn Terminal Blocks F 7 POS 5mm Screw ST Cable Mount 12A Conn;TermBlk;Plug;Screw;7;5mm;30-12AWG;10A;300V;PA
1754546
Phoenix Contact
Pluggable Terminal Blocks 5.00 7P PLUG 180DEG Conn Terminal Block F 7 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 7POS STR 5MM Printed-circuit board connector MSTB 2,5/ 7-ST Conn;TermBlk;Plug;Screw;7;5mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON MSTB 系列 5mm 节距 7 路 母 绿色 直 插头, 插入式, 螺钉端接

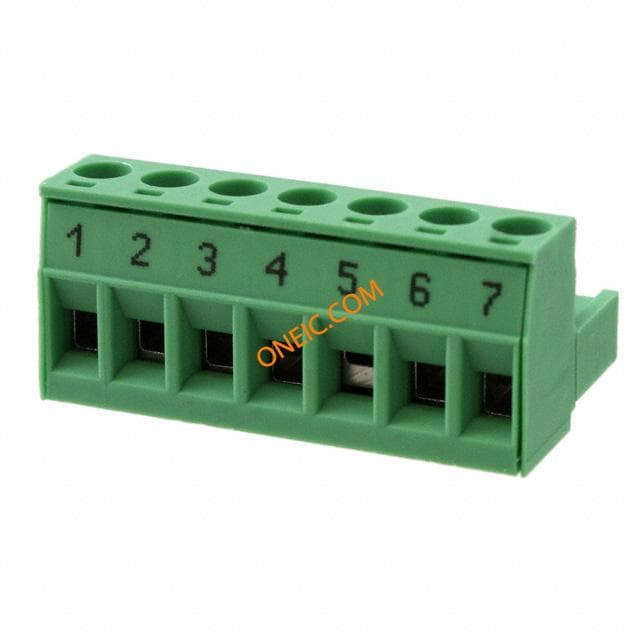

1876398
