点击放大查看

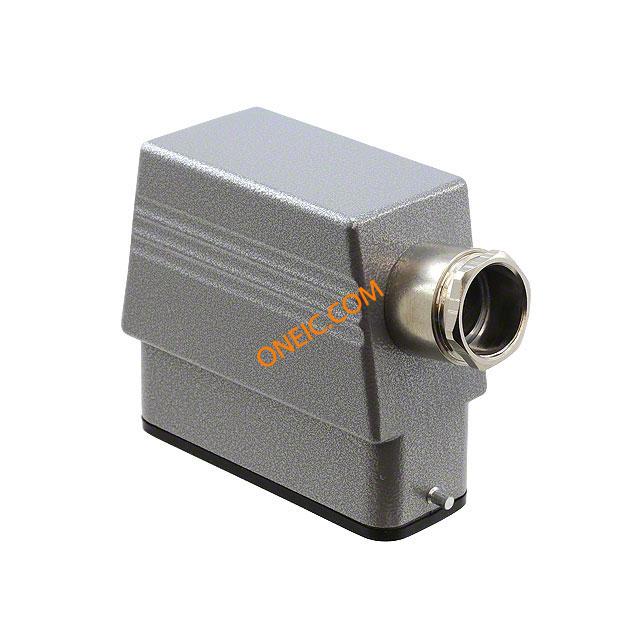

1772421
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-D 25-TFL-72/ M1PG16S Connector Accessories Sleeve Housing HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-D 25-TFL-72/M1PG16S HC-D25-TFL-72/M1PG16S Phoenix Contact HC-D 系列 连接器外壳 , PG16螺纹, 适用于A16，HC-D25 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Accessories | 标准包装规格 | 1 |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | D25 | 重量 | 8.197669 oz |
| 包装方式 | Bulk | 螺纹尺寸 | PG16 |
| 外壳颜色 | Gray | 连接器类型 | Hood |
| 外壳涂层 | Powder Coated | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 3.130" L x 1.161" W x 2.834" H (79.50mm x 29.50mm x 72.00mm) | 端接样式 | Screw |
产品信息
| 类型 | Sleeve Housing | 样式 | Side Entry |
| 系列 | HC-TFL | 产品子类型 | Housings |
| 锁定位置 | Side Clip on Base Bottom | 附件类型 | 外壳 |
| 行业别名 | HC-D 25-TFL-72/M1PG16S | 适用产品/相关产品 | A16，HC-D25 |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
