点击放大查看

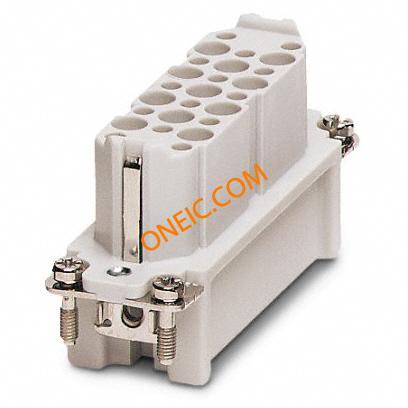

1772405
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-D 25-EBUC Conn HEAVYCON Insert F 25 POS Crimp ST Panel Mount FEMALE INSERT D25 SERIES 25POS Contact insert HC-D 25-EBUC HC-D25-EBUC |
| 分类 |
商业参数
| 交货时间 | 34 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Rectangular | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 10A |
| 最小输入电压 | 250V | ||
机械参数
| 尺寸 | D25 | 深度 | 34.5 |
| 高度 | 22.8 | 重量 | 1.340411 oz |
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | CK 1.6-ED | 安装类型 | Straight |
| 连接器类型 | Insert without Contacts | 接触镀层 | Silver |
| 排数 | 3 | 插入力 | Female |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 总长度 | 72 | 端接样式 | Crimp |
| 第一触头极性 | F | 触点数 | 25 |
| 位数 | 25 | 线规或范围 - AWG | 26-14 |
产品信息
| 类型 | HEAVYCON Insert | 连接器性别 | Female |
| 系列 | Heavycon | 产品子类型 | Inserts |
| 行业别名 | HC-D 25-EBUC | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
相关型号
1604904
Phoenix Contact
Heavy Duty Power Connectors HC-D25-TFL-72/01M25G Heavycon Sleeve Housing D25, For Single Locking Latch, Height 72Mm, With Support 1X M25, Straight Conductor Exit SLEEVE HSNG D25 FOR SGL LOCK Housing for heavy-duty plug connectors HC-D 25-TFL-72/O1M25G HC-D25-TFL-72/O1M25G Connector Housing
1663446
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 2.5mm Ag Turned 1.6 Crimp Contact, Individual Female Contact, Core Diameter 2.5mm Square, Silver-Plated CRIMP CONTACT SOCKET 14AWG Crimp contact CK1,6-ED-2,50BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 2.5mm Ag TURNED1.6CRIMPCONTACTFEMALE
1672754
Phoenix Contact

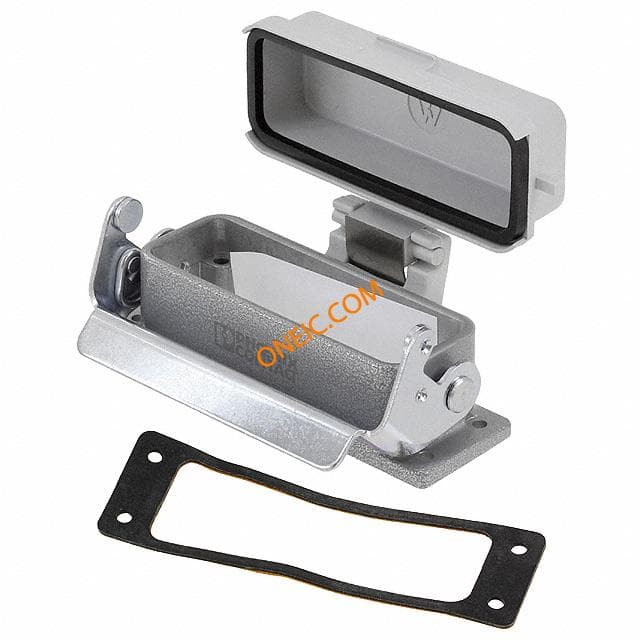

ヘビーデューティパワーコネクタ HC-D 25-AMLD HEAVYCON Panel Mounting Base D25, With Single Locking Latch, Height 26mm, With Cover HEAVYCON PANEL MOUNTING BASE Housing for heavy-duty plug connectors HC-D 25-AMLD Heavy Duty Power Connectors HC-D 25-AMLD HEAVYCONPanelMountingBaseD25;SingleLockingHatch;Height=26mm
