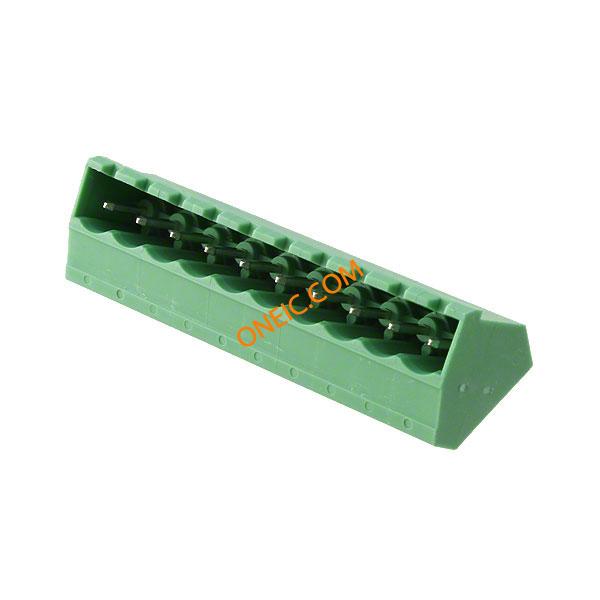

1767452

点击放大查看

1767452

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks SMSTBA 2 5/10-G-5 08 Conn Shrouded Header HDR 10 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 10POS 5.08MM Header for PCB plug connector SMSTBA 2,5/10-G-5,08 SMSTBA25/10-G-508 Phoenix Contact COMBICON SMSTBA 系列 10路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Headers交货时间20 Days
商标名COMBICON Control子类别Connector Headers and PCB Receptacles
产品类别Pluggable Terminal Blocks标准包装数量50
工厂包装数量50

合规参数

RoHSRoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL 94 V-0

电气参数

电流15A电压300V
额定电压250 V最大额定电流12 A
最小输入电压320V

机械参数

颜色Green深度16.5
间距5.08 mm高度14.8
重量5.502738 oz包装方式Bulk
端接方式Solder外壳颜色Green
安装类型Through Hole接触镀层Tin
安装样式Through Hole排数1
触头材料锡壳体材料Polybutylene Terephthalate
总长度52.8端接排数焊接
端接样式Through Hole排针方向45°
触点数10位数10
接线端子类型Header, Male Pins, Shrouded (4 Side)

产品信息

类型Wire to Board连接器性别HDR
系列SMSTBA行业别名SMSTBA 2, 5/10-G-5, 08
层数1每层位数10

文档与媒体

在线文档
1767452
PDF 文档
1767452

相关型号

1764303

1764303

Phoenix Contact

Pluggable Terminal Blocks MSTB 2 5/10-STZ-5 08 Conn Terminal Block F 10 POS 5.08mm Screw RA 12A TERM BLOCK PLUG 10POS STR 5.08MM COMBICON PCB plugs MSTB 2,5/10-STZ-5,08 MSTB25/10-STZ-508 Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 10 路 母 绿色 插头, 螺钉端接

¥64.6680
详情
1769094

1769094

Phoenix Contact

Pluggable Terminal Blocks MSTBP 2.5/10-ST-5.08 Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTBP 2,5/10-ST-5,08 Plugcomponent,Nominalcurrent:12A(10Positions)5.08pitch

¥59.0920
详情

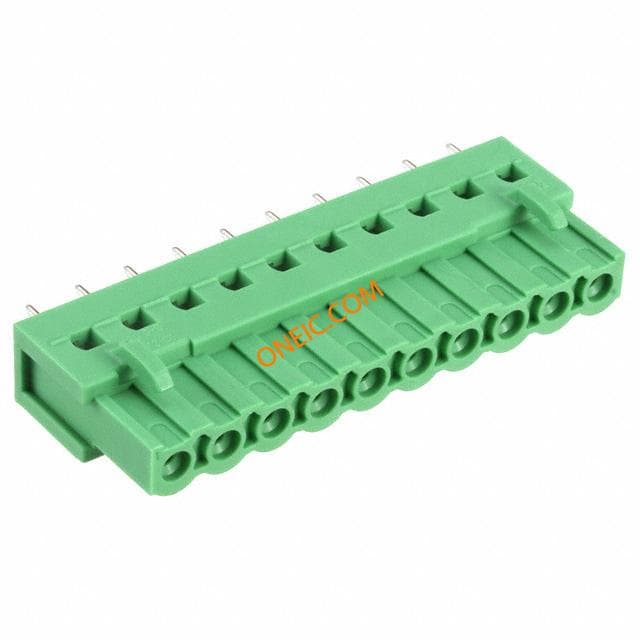

1786022

1786022

Phoenix Contact

Pluggable Terminal Blocks ICV 2 5/10-G-5 08 Conn Wire to Board HDR 10 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 10POS VERT 5.08MM Inverted hdr,5.08mm pitch,vertical,10way ICV25/10-G-508 Phoenix Contact COMBICON ICV 系列 10路 5.08mm节距 (1排) 直 PCB 接线端子块 , 焊接端接, 12A, 通孔

¥43.3160
详情
1777361

1777361

Phoenix Contact

Pluggable Terminal Blocks FRONT-MSTB 2 5/10-ST Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Non-Fused Terminal Block Cable Mount 10 Way, Screw Down, 320V Conn Terminal Blocks F 10 POS 5.08mm Screw ST Cable Mount 12A FRONT-MSTB25/10-ST-508

¥108.6640
详情
1826364

1826364

Phoenix Contact

Pluggable Terminal Blocks 5.08 10P PLUG 45DEG Conn Terminal Block F 10 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG 10POS 5.08MM Printed-circuit board connector SMSTB 2,5/10-ST-5,08 Conn Terminal Blocks F 10 POS 5.08mm Screw Cable Mount 12A Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw ... Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw connection, Color: green Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA

¥56.7800
详情
1792320

1792320

Phoenix Contact

Pluggable Terminal Blocks 5.08 10P PLUG 90DEG TERM BLOCK PLUG 10POS 5.08MM Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A PLUG, FREE, 5.08MM, 10WAY Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V

¥27.1800
详情
暂无图片

1752865

Phoenix Contact

Pluggable Terminal Blocks MSTB 2.5/ 10-ST-5,08 AU TERM BLOCK PLUG 10POS STR 5.08MM Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw ... Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw connection, Color: green MSTB25/10-ST-508AU

¥63.7840
详情
1792838

1792838

Phoenix Contact

Pluggable Terminal Blocks 5.08 10P PLUG 270DEG Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 10POS 5.08MM Non-Fused Terminal Block Cable Mount 10 Way, Screw Down, 250V Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V

¥42.6360
详情
1757093

1757093

Phoenix Contact

Pluggable Terminal Blocks 5.08 10P PLUG 180DEG Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Conn Terminal Blocks F 10 POS 5.08mm Screw RA Cable Mount 12A Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V

¥36.6520
详情
1758403

1758403

Phoenix Contact

Pluggable Terminal Blocks 5.08mm PRE-PRINTED 10P 1-10 LFT TO RGHT Conn Terminal Block F 10 POS 5.08mm Screw 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTB 2,5/10-ST-5,08 BD:1-10 Conn;TermBlk;Plug;Screw;10;5.08mm;Green;12A;250V;Pre-Printed Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 10 路 母 绿色 插头, 插入式, 螺钉端接

¥42.5000
详情

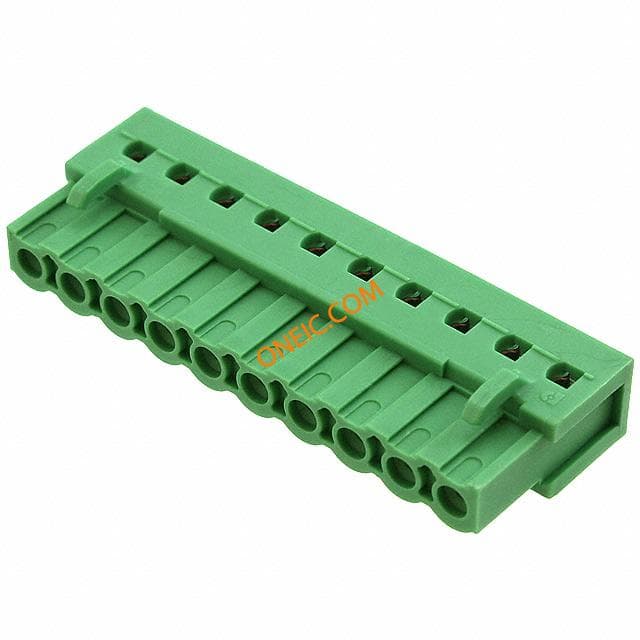

1786488

1786488

Phoenix Contact

Pluggable Terminal Blocks IC 2 5/10-G-5 08 Conn Wire to Board HDR 10 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 5.08MM Phoenix Contact IC Series 5.08mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 12A Header, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 10, Assembly: Soldering IC25/10-G-508 Phoenix Contact COMBICON IC 系列 5.08mm节距 10路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A , 通孔

¥48.0760
详情

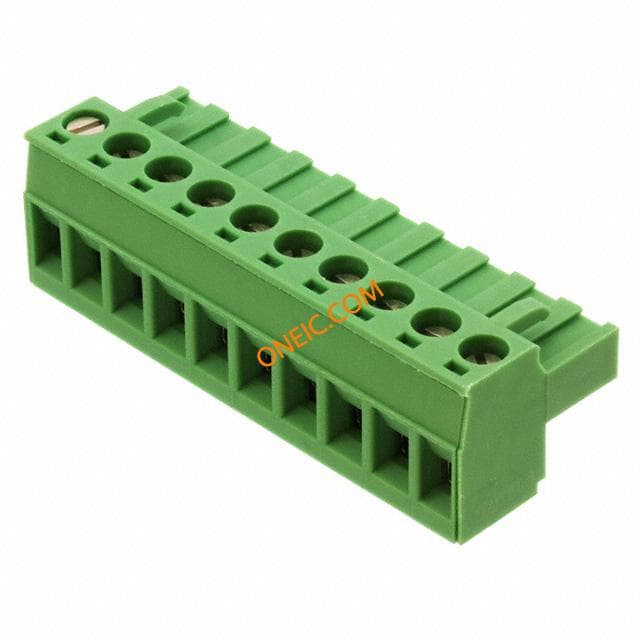

1781069
