1765030

点击放大查看

1765030

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks MSTBHK 2 5/10-G-5 08 Conn Terminal Block HDR 10 POS 5.08mm Screw RA 12A TERM BLK PLUG-IN 10POS 5.08MM GN Header MSTBHK 2,5/10-G-5,08 Conn;TermBlk;Header;DINRail;10;5.08mm;24-12AWG;Green;12A;250V Phoenix Contact 10 路 无熔丝端子块, DIN 轨安装, 螺钉端接, 320 V
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Headers交货时间20 Days
商标名COMBICON Control子类别Connector Terminal Blocks
产品类别Pluggable Terminal Blocks标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
认证机构cULus,CSA,VDE材料阻燃等级UL94 V-0

电气参数

电流 - UL10AUL电压300V
电流 - IEC12AIEC电压300V
额定电压250 V极数10Poles
最大额定电流12 A最小输入电压250V

机械参数

颜色Gray间距5.08 mm
长度2.059" (52.30mm)重量7.336984 oz
材料（通用）聚酰胺导线线规24-12
端接方式Screw高度（最大）1.091" (27.70mm)
外壳颜色Green安装类型Right Angle
接触镀层Tin排数1
壳体材料Polyamide总长度52.8
主要材料DINRail剥线长度（范围）7mm
端子宽度29.1mm端接排数螺钉
插针孔直径5.08mm端接样式Plug Receptacles, Screw
触点数10位数10
绝缘材料 - 材质Polyamide (PA), Nylon线规或范围 - AWG12-30 AWG
线规或范围 - mm²0.2-2.5mm²

产品信息

类型Terminal Block连接器性别HDR
系列MSTBCAD图纸3D CAD 模型
线路数量10行业别名MSTBHK 2, 5/10-G-5, 08
层数1基础产品编号MSTBHK2,5/10-G-5,08

文档与媒体

PDF 文档
1765030

相关型号

1755477

1755477

Phoenix Contact

Terminal Block Tools & Accessories MSTB-BL Connector Accessories Cap TERMINAL BLOCK KEYING CAP GREEN Keying cap, for forming sections, plugs onto header pin, green insulating material Keying Cap, For Forming Sections, Plugs Onto Header Pin MSTB-BL

¥0.7208
详情
1764303

1764303

Phoenix Contact

Pluggable Terminal Blocks MSTB 2 5/10-STZ-5 08 Conn Terminal Block F 10 POS 5.08mm Screw RA 12A TERM BLOCK PLUG 10POS STR 5.08MM COMBICON PCB plugs MSTB 2,5/10-STZ-5,08 MSTB25/10-STZ-508 Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 10 路 母 绿色 插头, 螺钉端接

¥64.6680
详情
1769094

1769094

Phoenix Contact

Pluggable Terminal Blocks MSTBP 2.5/10-ST-5.08 Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTBP 2,5/10-ST-5,08 Plugcomponent,Nominalcurrent:12A(10Positions)5.08pitch

¥59.0920
详情
1401637

1401637

Phoenix Contact

ターミナルブロック・ツールとアクセサリ E/MBK END BRACKET Connector Accessories End Clamp Straight Polyamide Gray TERMINAL BLOCK END BRACKET End bracket E/MBK Terminal Block Tools & Accessories E/MBK END BRACKET Mn35 Digital Multimeter Ac/Dc Volts, Dc Amps, Resistance, Temp EndClamp;TermBlk;Gray;22mmLx6.2mmWx11.4mmH Phoenix Contact E/MBK 系列 端夹

¥5.4400
详情
1777361

1777361

Phoenix Contact

Pluggable Terminal Blocks FRONT-MSTB 2 5/10-ST Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Non-Fused Terminal Block Cable Mount 10 Way, Screw Down, 320V Conn Terminal Blocks F 10 POS 5.08mm Screw ST Cable Mount 12A FRONT-MSTB25/10-ST-508

¥108.6640
详情

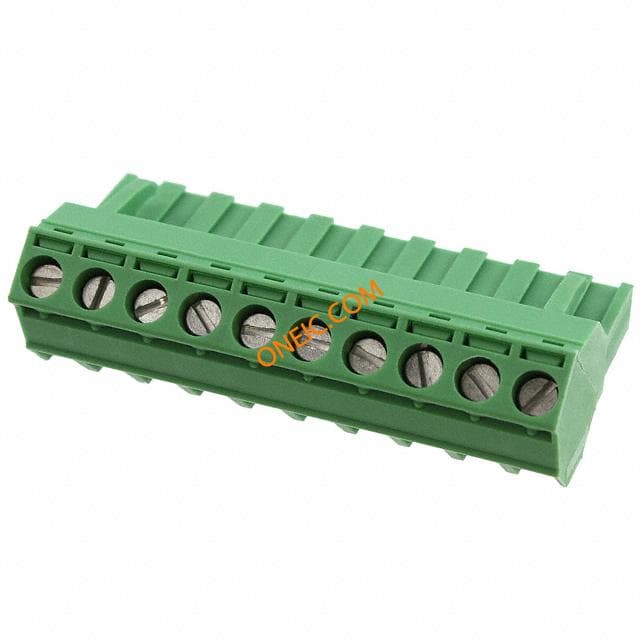

1826364

1826364

Phoenix Contact

Pluggable Terminal Blocks 5.08 10P PLUG 45DEG Conn Terminal Block F 10 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG 10POS 5.08MM Printed-circuit board connector SMSTB 2,5/10-ST-5,08 Conn Terminal Blocks F 10 POS 5.08mm Screw Cable Mount 12A Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw ... Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw connection, Color: green Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA

¥56.7800
详情
1792320

1792320

Phoenix Contact

Pluggable Terminal Blocks 5.08 10P PLUG 90DEG TERM BLOCK PLUG 10POS 5.08MM Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A PLUG, FREE, 5.08MM, 10WAY Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V

¥27.1800
详情
暂无图片

1752865

Phoenix Contact

Pluggable Terminal Blocks MSTB 2.5/ 10-ST-5,08 AU TERM BLOCK PLUG 10POS STR 5.08MM Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw ... Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw connection, Color: green MSTB25/10-ST-508AU

¥63.7840
详情
1792838

1792838

Phoenix Contact

Pluggable Terminal Blocks 5.08 10P PLUG 270DEG Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 10POS 5.08MM Non-Fused Terminal Block Cable Mount 10 Way, Screw Down, 250V Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V

¥42.6360
详情
1757093

1757093

Phoenix Contact

Pluggable Terminal Blocks 5.08 10P PLUG 180DEG Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5.08MM Conn Terminal Blocks F 10 POS 5.08mm Screw RA Cable Mount 12A Conn;TermBlk;Plug;Screw;10;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V

¥36.6520
详情

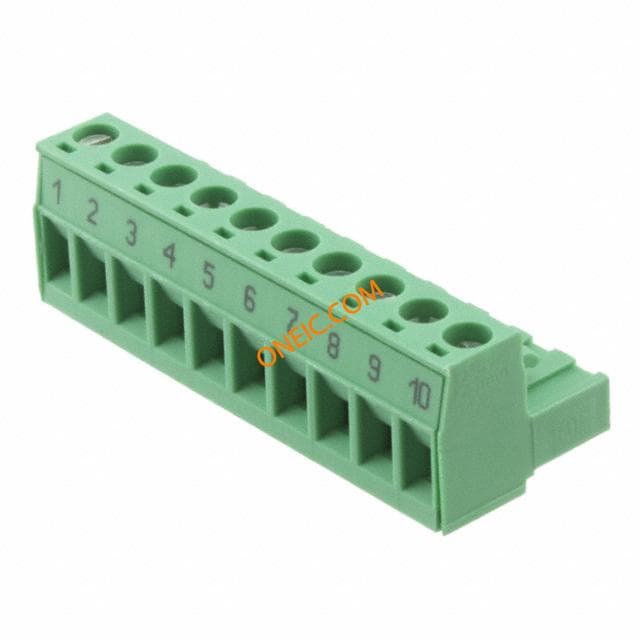

1758403

1758403

Phoenix Contact

Pluggable Terminal Blocks 5.08mm PRE-PRINTED 10P 1-10 LFT TO RGHT Conn Terminal Block F 10 POS 5.08mm Screw 12A TERM BLOCK PLUG 10POS STR 5.08MM Printed-circuit board connector MSTB 2,5/10-ST-5,08 BD:1-10 Conn;TermBlk;Plug;Screw;10;5.08mm;Green;12A;250V;Pre-Printed Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 10 路 母 绿色 插头, 插入式, 螺钉端接

¥42.5000
详情
1734401

1734401

Phoenix Contact

Terminal Block Tools & Accessories CODING ELEMENT PRICED PER CLIP Connector Accessories Coding Element Inserted Into The Recess In The Header Or The Inverted Plug Red TERM BLOCK HEADER CODING ELEMENT CR-MSTB CODINGSECTION,REDINSULATINGMATERIAL

¥0.4284
详情

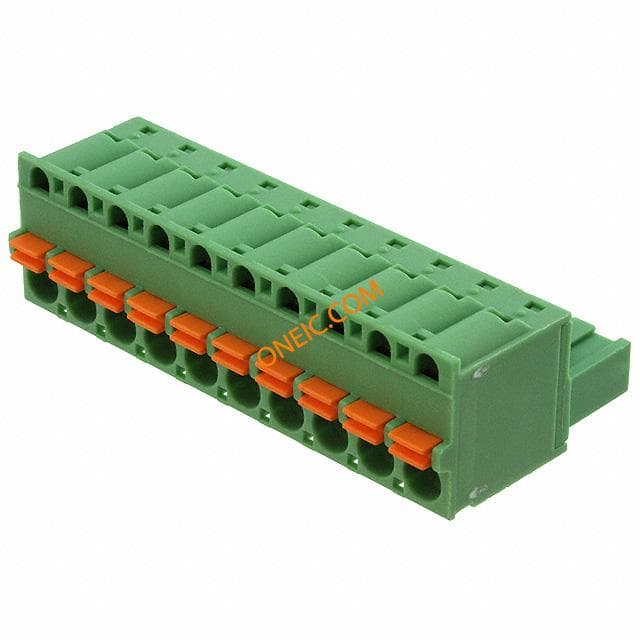

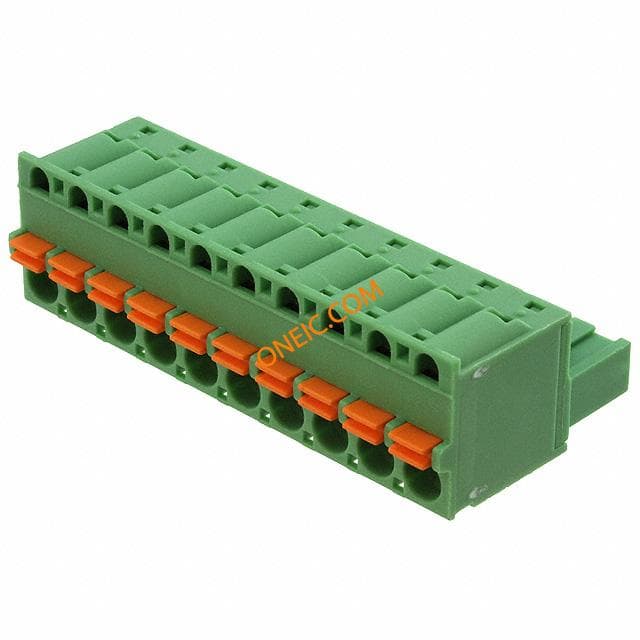

1873139
