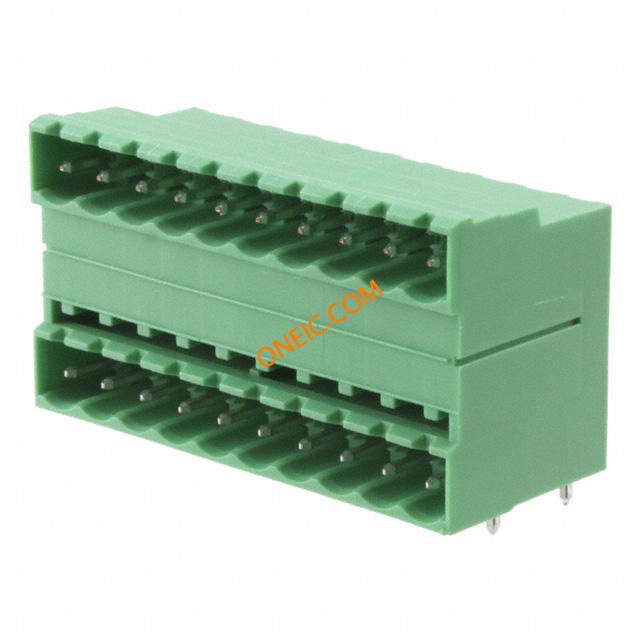

1762457

点击放大查看

1762457

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks MDSTB 2 5/10-G1-5 08 5.08mm DBL 10P HDR Conn Shrouded Header HDR 20 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 20POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/10-G1-5,08 MDSTB25/10-G1-508 Phoenix Contact COMBICON MDSTB 系列 5.08mm节距 10路 印刷电路板接线端子块, 焊接端接, 10A
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品Headers交货时间20 Days
商标名COMBICON Control子类别Connector Headers and PCB Receptacles
零件号别名2,5/10-G1-5,08 MDSTB产品类别Pluggable Terminal Blocks
标准包装数量50工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL 94 V-0

电气参数

电流15A电压300V
额定电压250 V最大额定电流10 A
最小输入电压320V最小供电电压320V

机械参数

颜色Green深度22 mm
间距0.200" (5.08mm)高度28.5 mm
重量5.679108 oz包装方式Bulk
端接方式Solder外壳颜色Green
安装类型Right Angle接触镀层Tin
安装样式Through Hole排数2
触头材料锡壳体材料Polyamide
总长度52.8 mm端接排数焊接
端接样式Through Hole排针方向90°, Right Angle
触点数20位数20
接线端子类型Header, Male Pins, Shrouded (4 Side)

产品信息

类型Shrouded Header连接器性别HDR
系列MDSTB行业别名MDSTB 2, 5/10-G1-5, 08
层数2每层位数10

文档与媒体

PDF 文档
1762457
