点击放大查看

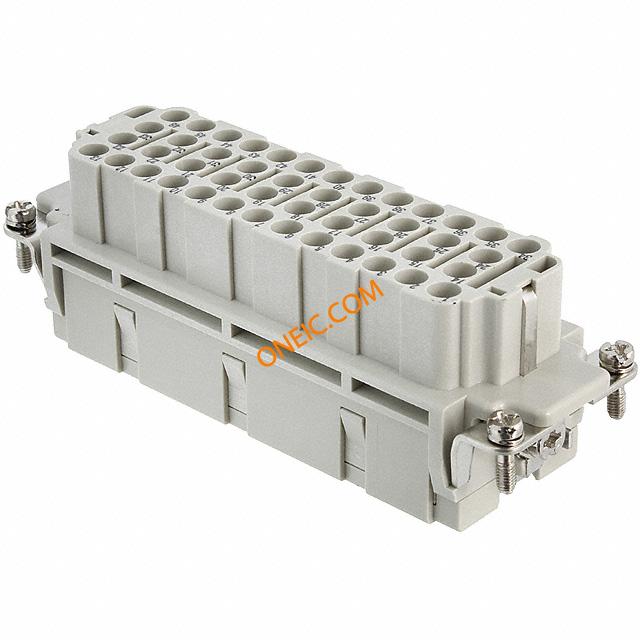

1687493
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors Female BB46 46P Crimp Conn HEAVYCON Insert F 46 POS Crimp ST Panel Mount CONN FMALE INSERT 46POS HEAVYCON HEAVYCON female insert, BB46 series, 46-pos., crimp connection FEMALEINSERT,46-POS.,CRIMPCONNECTION |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Rectangular | 标准包装规格 | 1 |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 500V | 最大额定电流 | 16A |
| 最小输入电压 | 500V | ||
机械参数
| 尺寸 | B24 | 深度 | 36.2 |
| 高度 | 34 | 重量 | 3.245204 oz |
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | CK 2.5-ED | 安装类型 | Straight |
| 连接器类型 | Insert without Contacts | 接触镀层 | Silver |
| 排数 | 4 | 插入力 | Female |
| 触头材料 | Copper Alloy | 壳体材料 | Polycarbonate |
| 总长度 | 111 | 端接样式 | Crimp |
| 第一触头极性 | F | 触点数 | 46 |
| 位数 | 46 | 线规或范围 - AWG | 20-12 |
产品信息
| 类型 | HEAVYCON Insert | 连接器性别 | Female |
| 产品子类型 | Inserts | 行业别名 | HC-BB 46-EBUC |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
1645370
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-TFL-76/ O1STM32S HEAVYCON Sleeve Housing B24, For Single Locking Latch HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 24-TFL-76/O1STM32S Heavy Duty Power Connectors HC-B 24-TFL-76/ O1STM32S HC-B24-TFL-76/O1STM32S
1772078
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-KML-79/ M1PG21 Connector Accessories Coupling Housing Aluminum Gray HEAVYCON COUPLING HOUSING Housing for heavy-duty plug connectors HC-B 24-KML-79/M1PG21 Heavy Duty Power Connectors HC-B 24-KML-79/ M1PG21 HC-B24-KML-79/M1PG21
1645752
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-SML-84/ O1M32 HEAVYCON Box Mounting Base B24, With Single Locking Latch BOX MOUNT BASE B24 SNGL LATCH Housing for heavy-duty plug connectors HC-B 24-SML-84/O1M32 Heavy Duty Power Connectors HC-B 24-SML-84/ O1M32 HC-B24-SML-84/O1M32
1771969
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B24-SMQ-67/M1PG21 Box Mounting Base, With Double Locking Latch, Height 67mm, With Screw Connection, 1X PG21 BOX MOUNT BASE DBL LOCKING LATCH Housing for heavy-duty plug connectors HC-B 24-SMQ-67/M1PG21 Heavy Duty Power Connectors HC-B24-SMQ-67/M1PG21 Boxmountingbase,withdoublelockinglatch,height67mm
1604860
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B24-TMQ-76/O1M32G Misc Products SLEEVE HSNG B24 W/DOUBLE LOCK Heavy Duty Power Connectors HC-B24-TMQ-76/O1M32G HC-B24-TMQ-76/O1M32G
1604835
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B24-SMQ-67/01M25 Misc Products BOX MNT BASE B24 W/DOUBLE LOCK Housing for heavy-duty plug connectors HC-B 24-SMQ-67/O1M25 Heavy Duty Power Connectors HC-B24-SMQ-67/01M25 HC-B24-SMQ-67/O1M25 Connector Housing
1663679
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 2.5 Crimp Fem Diam. 1.5mm, Ag Turned 2.5 Crimp Contact, Individual Male Contact, Core Diameter 1.5mm Square, Silver-Plated CRIMP CONTACT SOCKET 16AWG Crimp contact CK2,5-ED-1,50BU AG Heavy Duty Power Connectors Turn 2.5 Crimp Fem Diam. 1.5mm, Ag Contact F Crimp ST Cable Mount Individual Turned2.5CrimpContact;IndividualFemaleContact;CoreDiameter1.5mm^2
1645367
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-TFL-76/ O1STM32G HEAVYCON Sleeve Housing B24, For Single Locking Latch, Height 76mm, Without Support 1X M32, Straight Conductor Exit HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 24-TFL-76/O1STM32G Heavy Duty Power Connectors HC-B 24-TFL-76/ O1STM32G HC-B24-TFL-76/O1STM32G
1642807
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-TFQ-76/O1 STM32G-EMV Heavycon Sleeve Housing B24, For Double Locking Latch, Height 76Mm, With Thread M32, Straight Cable Outlet, Emc Version SLEEVE HSNG B24 DBL LOCK LATCH EMC housing for heavy-duty plug connectors HC-B 24-TFQ-76/O1STM32G-EMV Heavy Duty Power Connectors HC-B 24-TFQ-76/O1 STM32G-EMV HC-B24-TFQ-76/O1STM32G-EMV
1604830
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B24-SFQD-67/O1M25 Heavycon Box Mounting Base B24, For Double Locking Latch, Height BOX MNT BASE B24 FOR DOUBLE LOCK Housing for heavy-duty plug connectors HC-B 24-SFQD-67/O1M25 Heavy Duty Power Connectors HC-B24-SFQD-67/O1M25 HEAVYCON box mounting base B24, for double locking latch, height 67 mm, with support 1xM25, with cover HC-B24-SFQD-67/O1M25 Connector Housing
1771930
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-AML Panel Mounting Base, With Single Locking Latch, Height 27mm PNL MNT BASE B24 LOCKING LATCH Housing for heavy-duty plug connectors HC-B 24-AML Heavy Duty Power Connectors HC-B 24-AML HEAVYCONpanelmountingbaseB24
1663695
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 2.5 Crimp Fem Diam. 3.00mm, Ag Contact SKT Crimp ST Cable Mount TURNED 2.5 CRIMP CONTACT FEMALE Crimp contact CK2,5-ED-3,00BU AG Heavy Duty Power Connectors Turn 2.5 Crimp Fem Diam. 3.00mm, Ag CK25-ED-300BUAG
1460373
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-TMB-100/ O1STM32G-EEE HEAVYCON SLEEVE HOUSING Heavy Duty Power Connectors HC-B 24-TMB-100/ O1STM32G-EEE HC-B24-TMB-100/O1STM32G-EEE
1676860
Phoenix Contact
Heavy Duty Power Connectors HC-CBU Keying Socket For Coding Up To 16 Plug Connectors KEYING SOCKET FOR CODING 16 PLUG Keying element HC-CBU KEYINGPEGFORCODING16PLUGCONNECTORS
1690341
Phoenix Contact
Heavy Duty Power Connectors HC-B24-TMS-100/ 01STM32G-EMV Heavycon Advance Emv Sleeve Housing B24, With Screw Locking, Height 100 Mm, With 1X M32 Thread, Straight Cable Outlet SLEEVE HOUSING B24 100 MM HC-B24-TMS-100/O1STM32G-EMV
1586950
Phoenix Contact
Heavy Duty Power Connectors HC-B 24-SMLD-67 /M1M25 Box Mounting Base With Single Locking Latch Height 67mm Withscrew Connection 1X M25 With Protective Cover CONN BOX MNT BASE W/CVR B24 M25 HC-B24-SMLD-67/M1M25 Connector Housing
1674846
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 2.5 Crimp Fem Diam. 4.00mm, Au Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET Crimp contact CK2,5-ED-4,00BU AU Heavy Duty Power Connectors Turn 2.5 Crimp Fem Diam. 4.00mm, Au CK25-ED-400BUAU Phoenix Contact HC-M 系列 母座 压接触点 , 额定电流 5mA/ 5 V
1604858
Phoenix Contact
Heavy Duty Power Connectors HC-B24-TMQ-76/01M25G HEAVYCON Sleeve Housing B24, For Double Locking Latch HEAVYCON SLEEVE HOUSING HEAVYCON sleeve housing B24, with double locking latch, height 76 mm, with support 1x M25, straight conductor exit HC-B24-TMQ-76/O1M25G

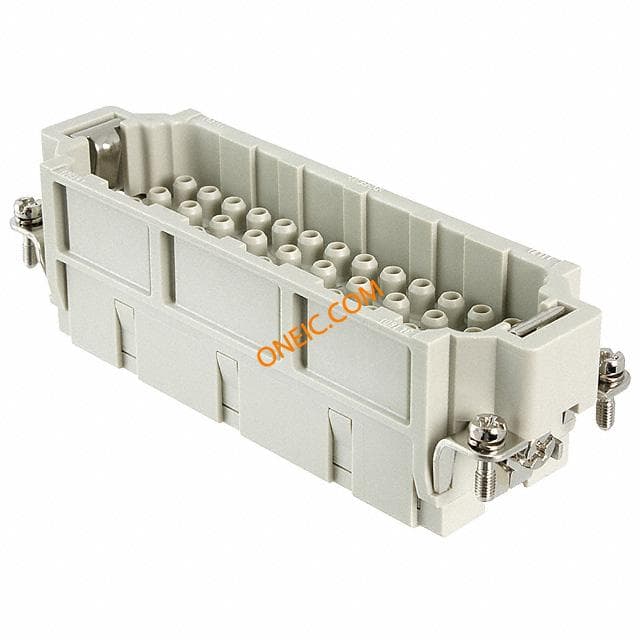

1687503
