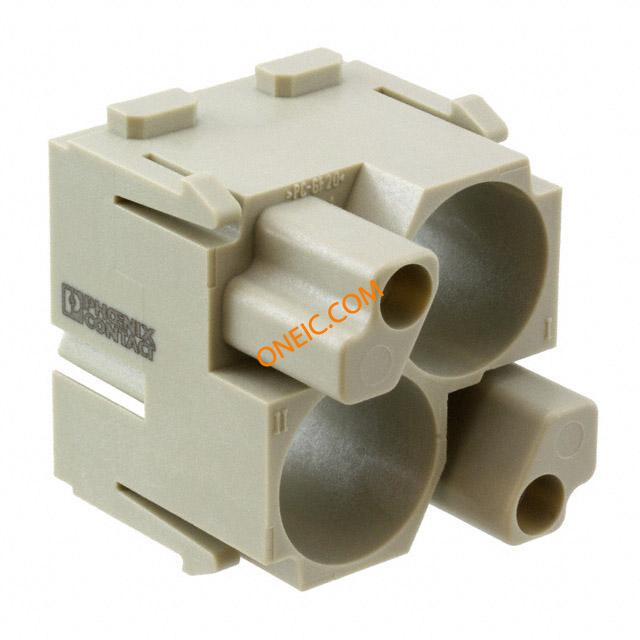

1678570
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors EMC Insert Female 2P For HC-M-EMV HEAVYCON Contact Insert Module, Series M EMV, Female, 2- POS, For HC-M-EMV Male Contacts HEAVYCON HOUSING MODULE FML 2POS EMC contact carriers HC-M-EMV-MOD-BU |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 重量 | 0.533695 oz | 包装方式 | Bulk |
| 连接器类型 | Module | 插入力 | Female |
| 壳体材料 | Polycarbonate (PC) | 触点数 | 2 |
产品信息
| 样式 | Bottom Entry | 系列 | Heavycon |
| 产品子类型 | Inserts | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
