点击放大查看

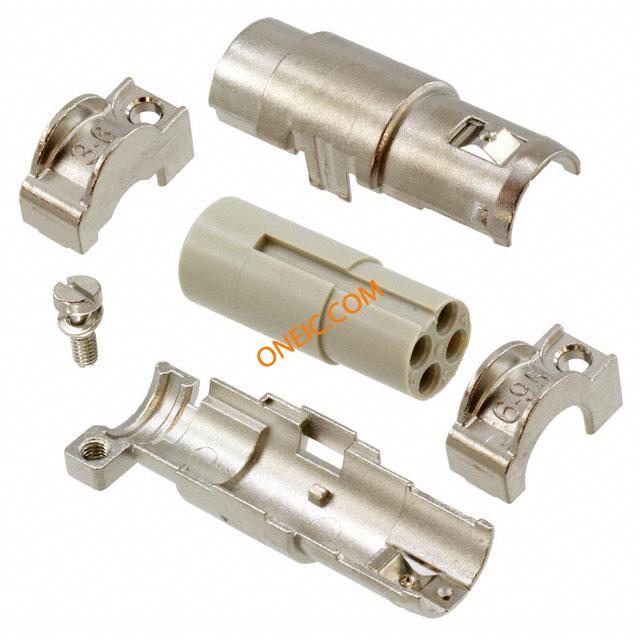

1636091
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Standard Circular Connector EMC Insert Female 4P W/4-9 mm Wire Diam. Conn Circular SKT 4 POS ST Cable Mount 4 Terminal 1 Port HEAVYCON INSERT MODULE FML 4POS Contact insert HC-M-EMV-BU/3-9,5 HEAVYCON EMC connector, female insert, 4-pos., to connect shielded conductors with 4-9 mm external conductor diameter HC-M-EMV-BU/3-95 Phoenix Contact 触点模块 |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 50V | 最大额定电流 | 10A |
机械参数
| 重量 | 1 oz | 包装方式 | Bulk |
| 导线线规 | 26-14 | 外壳样式 | Plug |
| 触头类型 | CK 1.6-ED | 安装类型 | Cable Mount |
| 连接器类型 | Module without Contacts | 接触镀层 | Silver |
| 安装样式 | Wire | 外壳材料（壳体） | Plastic |
| 触头材料 | Copper Alloy | 壳体材料 | Polycarbonate (PC) |
| 端接样式 | Crimp | 第一触头极性 | SKT |
| 触点数 | 4 | 位数 | 4 |
产品信息
| 类型 | Circular | 连接器性别 | Female |
| 系列 | EMC | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Connectors | 附件类型 | 触点插件 |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
相关型号
1672440
Phoenix Contact
Heavy Duty Power Connectors CK1.6-ED-0.75BU AU Sensor Cable, Straight Female Connector M 8, 3POS, Cable Length 1.5m CRIMP CONTACT SOCKET 18AWG Crimp contact CK1,6-ED-0,75BU AU Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 0.75mm Au CK16-ED-075BUAU
1636088
Phoenix Contact
Circular Metric Connectors EMC Insert Male 4P W/4-9 mm Wire Diam. Conn Circular SKT 4 POS ST Cable Mount 4 Terminal 1 Port HEAVYCON INSERT MODULE ML 4POS Contact insert HC-M-EMV-ST/3-9,5 HC-M-EMV-ST/3-95 Phoenix Contact 触点模块
1663446
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 2.5mm Ag Turned 1.6 Crimp Contact, Individual Female Contact, Core Diameter 2.5mm Square, Silver-Plated CRIMP CONTACT SOCKET 14AWG Crimp contact CK1,6-ED-2,50BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 2.5mm Ag TURNED1.6CRIMPCONTACTFEMALE
1884115
Phoenix Contact
ヘビーデューティパワーコネクタ Rolled Fem Cont. Ag, 0.5mm-1.5mm Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 20-16AWG Crimp contact, 1.6mm, female Crimp contact CK1,6-ER-1,50BU AG Heavy Duty Power Connectors Rolled Fem Cont. Ag, 0.5mm-1.5mm CK16-ER-150BUAG Phoenix Contact VC-D 系列 母座 滚压触点 , 适用于大负荷电源连接器
1663394
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 0.14-0.37mm Ag Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 26-22AWG Crimp contact CK1,6-ED-0,37BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 0.14-0.37mm Ag CK16-ED-037BUAG
1884128
Phoenix Contact
ヘビーデューティパワーコネクタ Rld. 1.6 Crimp Fem Cont. Diam. 0.5 mm Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 26-20AWG Crimp contact CK1,6-ER-0,50BU AG Heavy Duty Power Connectors Rld. 1.6 Crimp Fem Cont. Diam. 0.5 mm CK16-ER-050BUAG

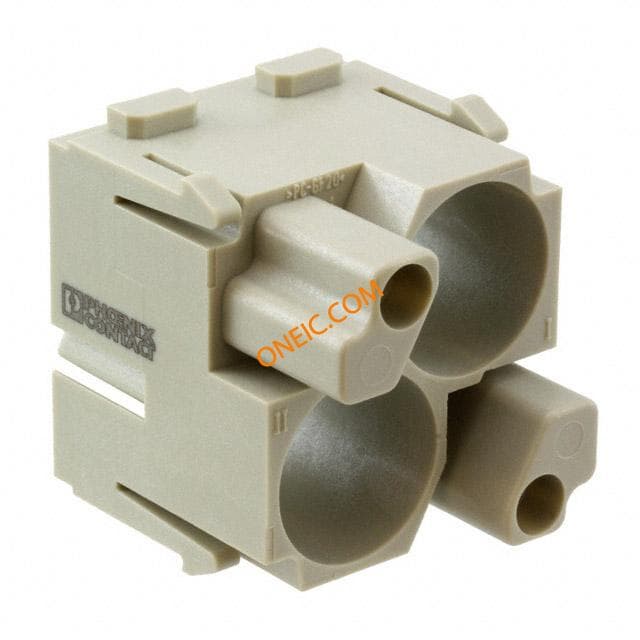

1678570
