1636376
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors Male K6/36 6 Power 36 Control, Crimp Conn HEAVYCON Insert F 6Power/36Signal POS Crimp ST Panel Mount MALE INSERT K6/36 SERIES HC-K6/36-ESTC Phoenix Contact HC 系列 42P+E 公插 触点插件 , 额定电流 40A/ 160 V |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 160 V | 最大额定电流 | 40A |
| 最小输入电压 | 690V/160V | ||
机械参数
| 尺寸 | B16 | 深度 | 39 |
| 高度 | 34 | 重量 | 2.409212 oz |
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | CK 1.6-ED, CK 4.0-ED | 安装类型 | Straight |
| 连接器类型 | Insert without Contacts | 接触镀层 | Silver |
| 排数 | 3/6 | 触头材料 | Copper Alloy |
| 壳体材料 | Polycarbonate | 总长度 | 84.5 |
| 端接样式 | Crimp | 第一触头极性 | F |
| 触点数 | 6Power/36Signal | 位数 | 6+36+Ground |
产品信息
| 类型 | HEAVYCON Insert | 连接器性别 | Male |
| 系列 | HC | 极性 | 42P+E |
| CAD图纸 | 3D CAD 模型 | 附件类型 | 触点插件 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
相关型号
1673850
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-TFL-76/ O1PG29S Sleeve Housing, For Single Locking Latch, Height 76mm, Without Screw Connection, 1X PG29, Lateral Cable Entry HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 16-TFL-76/O1PG29S HC-B16-TFL-76/O1PG29S

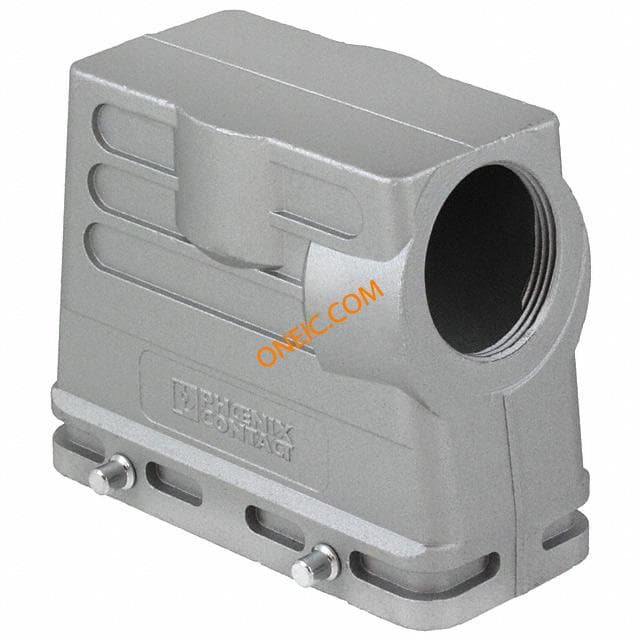

1642593
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-TFQ-76/O1 STM32S-EMV HEAVYCON B16 Sleeve Housing, For Double Locking Latch HEAVYCON SLEEVE HOUSING HC-B16-TFQ-76/O1STM32S-EMV
1604806
Phoenix Contact
Heavy Duty Power Connectors HC-B16-TFQ-45/O1M25G Misc Products SLEEVE HSNG B16 FOR DOUBLE LOCK Housing for heavy-duty plug connectors HC-B 16-TFQ-45/O1M25G HC-B16-TFQ-45/O1M25G
1674927
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 2.5mm Au Contact PIN Crimp ST Cable Mount TURNED 1.6 CRIMP CONTACT MALE Crimp contact CK1,6-ED-2,50ST AU CK16-ED-250STAU Phoenix Contact HC-M 系列 公插 压接触点 , 额定电流 0.005A/ 5 V, 适用于HC-D、HC-DD、HC-M-12、HC-M-EMC、VC-D
1636389
Phoenix Contact
Heavy Duty Power Connectors Female K6/36 6 Power 36 Control, Crimp Conn HEAVYCON Insert F 6Power/36Signal POS Crimp ST Panel Mount FEMALE INSERT K6/36 SERIES Contact insert HC-K 6/36-EBUC HC-K6/36-EBUC Phoenix Contact HC 系列 42P+E 母座 触点插件 , 额定电流 40A/ 160 V

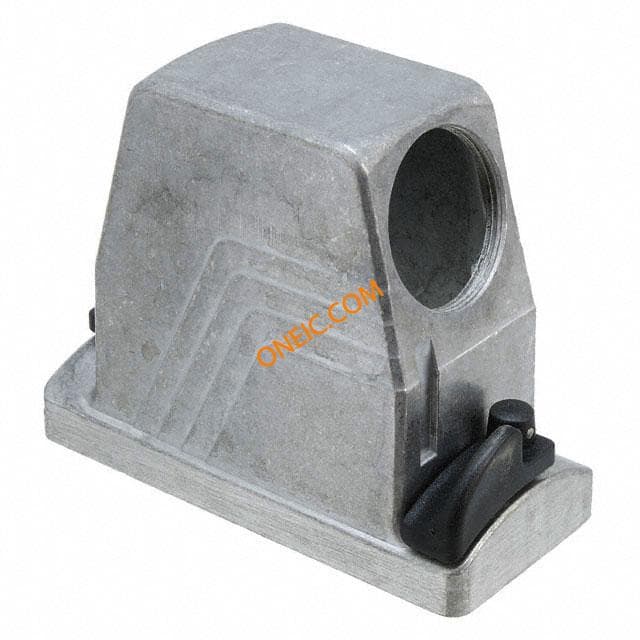

1460372
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-TMB-100/ O1STM40S-EEE HEAVYCON SLEEVE HOUSING HC-B16-TMB-100/O1STM40S-EEE

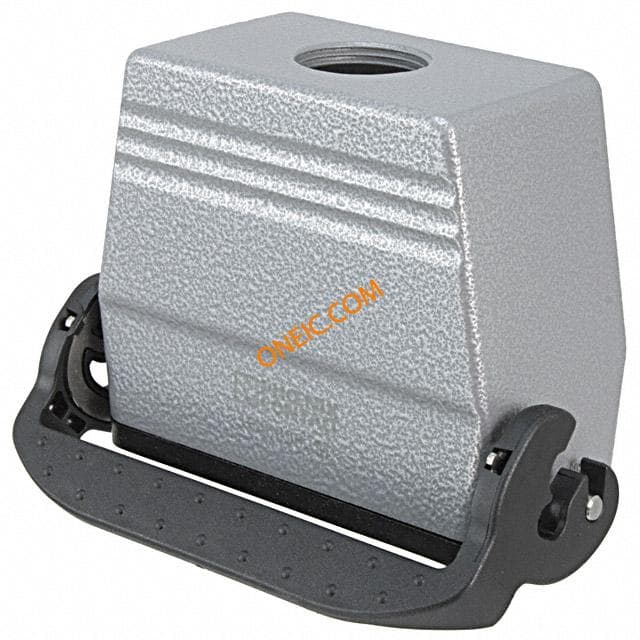

1646890
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B16-KML-80/ 01STM25 Heavycon Coupling Housing B16, With Single Locking Latch, Height 80Mm, With Thread 1Xm25 HEAVYCON COUPLING HOUSING B16 Heavy Duty Power Connectors HC-B16-KML-80/ 01STM25 HC-B16-KML-80/O1STM25
1775570
Phoenix Contact
Heavy Duty Power Connectors HC-B16TMQ-76/M1PG29S Connector Accessories Sleeve Housing Aluminum Gray SLEEVE HOUSING DBL LOCKING LATCH Housing for heavy-duty plug connectors HC-B 16-TMQ-76/M1PG29S HC-B16-TMQ-76/M1PG29S
1663239
Phoenix Contact
Heavy Duty Power Connectors Turn 4.0 Crimp Male Diam. 1.5mm, Ag Contact PIN Crimp ST Cable Mount TURNED 4 CRIMP CONTACT MALE Crimp contact CK4,0-ED-1,50ST AG CK40-ED-150STAG

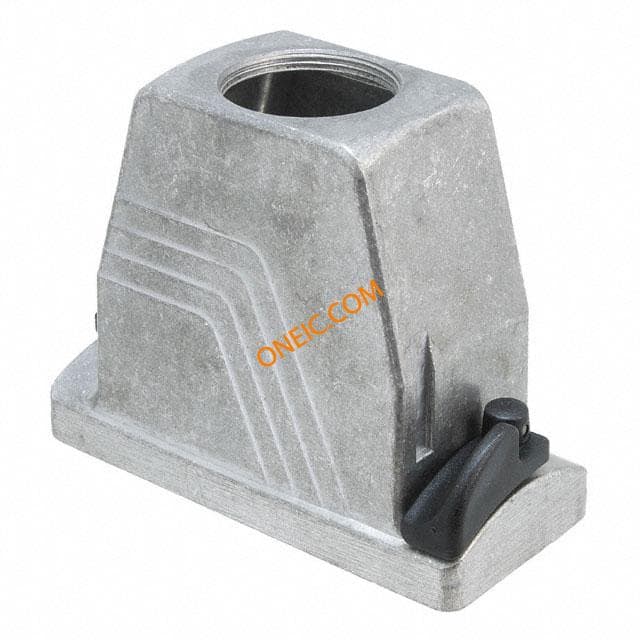

1460371
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 16-TMB-100/ O1STM40G-EEE HC-B 16-TMB-100/O1STM40G-EEE HEAVYCON SLEEVE HOUSING Heavy Duty Power Connectors HC-B 16-TMB-100/ O1STM40G-EEE HC-B16-TMB-100/O1STM40G-EEE

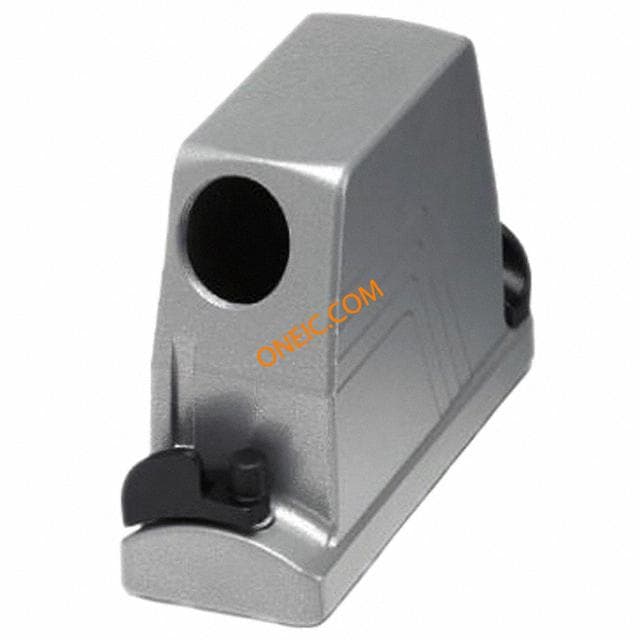

1690244
Phoenix Contact
Heavy Duty Power Connectors HC-B16-TMS-100/ 01STM32S-STA Misc Products HEAVYCON SLEEVE HOUSING HC-B16-TMS-100/O1STM32S-STA
1771545
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B16-TMQ76/M1PG21G Connector Accessories Sleeve Housing SLEEVE HOUSING DBL LOCKING LATCH Housing for heavy-duty plug connectors HC-B 16-TMQ-76/M1PG21G Heavy Duty Power Connectors HC-B16-TMQ76/M1PG21G HC-B16-TMQ-76/M1PG21G
1673711
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-SMLD-67/ O1PG21 Box Mounting Base, With Single Locking Latch, Height 67 Mm, With A Support 1X Pg21, With A Protective Cover BOX MOUNTING BASE 67 MM HC-B16-SMLD-67/O1PG21 Phoenix Contact HC-B 系列 连接器外壳
1663352
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.75mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 18AWG Crimp contact CK1,6-ED-0,75ST AG TURNED1.6CRIMPCONTACTMALE
1771671
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-SFQD-67/ M2PG21 Misc Products BOX MOUNTING BASE 67 MM HC-B16-SFQD-67/M2PG21 Phoenix Contact HC-B 系列 连接器外壳 , PG21螺纹
1580498
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 16-TMSO1 STM25G/M20G-EEE HEAVYCON ADVANCE SLEEVE HOUSING B16 WITH HIGH-GRADE STEEL HEAVYCON SLEEVE HOUSING Heavy Duty Power Connectors HC-B 16-TMSO1 STM25G/M20G-EEE Connector Accessories Sleeve Housing HC-B16-TMSO1STM25G/M20G-EEE

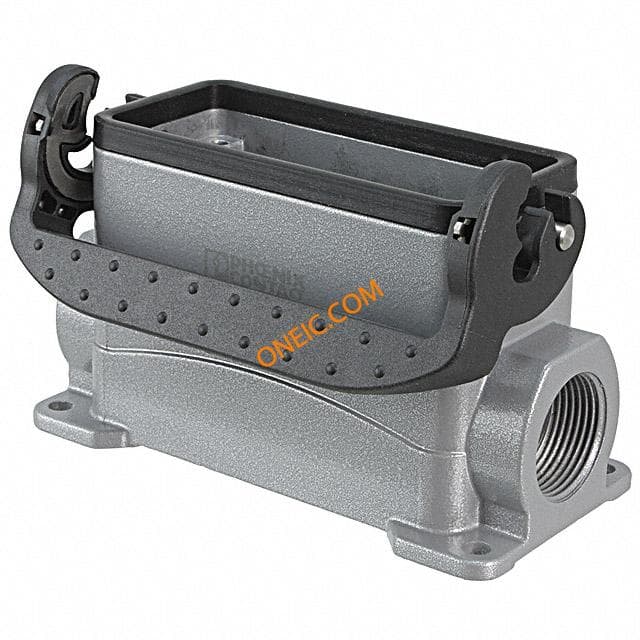

1604785
