点击放大查看

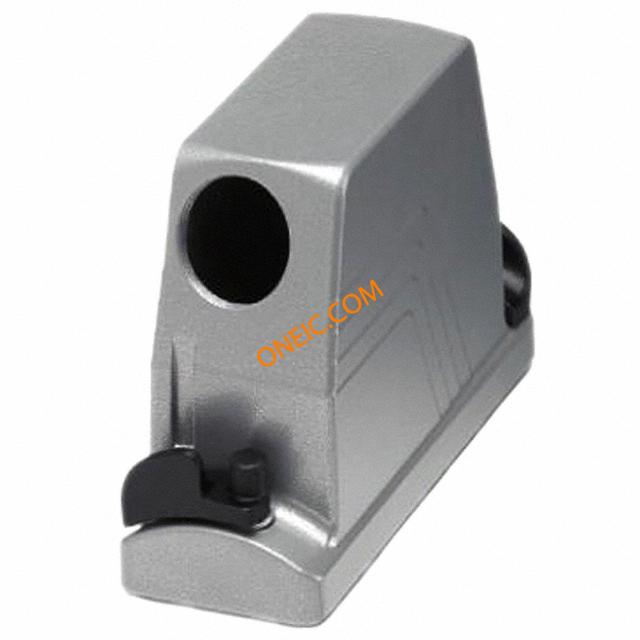

1690244
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-B16-TMS-100/ 01STM32S-STA Misc Products HEAVYCON SLEEVE HOUSING HC-B16-TMS-100/O1STM32S-STA |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | B16 | 重量 | 13.351195 oz |
| 包装方式 | Bulk | 螺纹尺寸 | M32 |
| 外壳颜色 | Gray | 连接器类型 | Hood |
| 外壳涂层 | Powder Coated | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 4.961" L x 2.244" W x 3.940" H (126.00mm x 57.00mm x 100.00mm) | 端接样式 | Screw |
产品信息
| 样式 | Side Entry | 系列 | Heavycon Advance |
| 产品子类型 | Housings | 锁定位置 | Screw Locks on Hood |
环境参数
| 防护等级 | IP65/68/69K - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40°C ~ 125°C |
