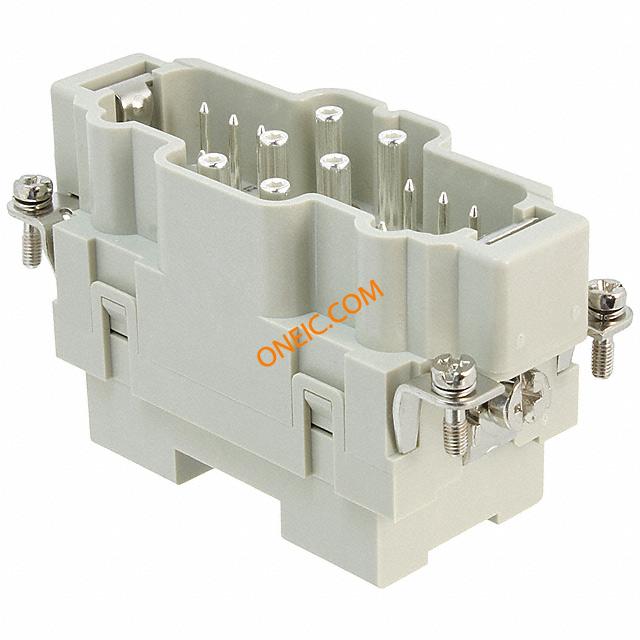

1636350
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ Male K6/12 W/6 Power 12 Control, Screw Conn Shrouded Header M 6Power/12Signal POS ST Panel Mount CONN MALE INSERT 6PWR 12 CONT Contact insert HC-K 6/12-ESTS Heavy Duty Power Connectors Male K6/12 W/6 Power 12 Control, Screw HC-K6/12-ESTS Phoenix Contact HC 系列 18P+E 公插 触点插件 , 额定电流 40A/ 400 V |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 230 V, 690 V | 最大额定电流 | 10 A, 40 A |
| 最小输入电压 | 690V/230V | ||
机械参数
| 尺寸 | B16 | 深度 | 47.2 |
| 高度 | 34 | 重量 | 5.269930 oz |
| 包装方式 | Bulk | 安装类型 | Panel Mount |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 插入力 | Male | 触头材料 | Copper Alloy |
| 壳体材料 | Polycarbonate | 总长度 | 84.5 |
| 端接样式 | Screw | 触点数 | 6Power/12Signal |
| 位数 | 6+12+Ground | 线规或范围 - AWG | 12-10, 24-14 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | M |
| 系列 | Heavycon | 极性 | 18P+E |
| CAD图纸 | 3D CAD 模型 | 产品子类型 | Inserts |
| 附件类型 | 触点插件 | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
1771697
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-SMLD-67/ M2PG21 Box Mounting Base, With Single Locking Latch, Height 67mm, With Screw Connection, 2X PG21, With Protective Covers BOX MOUNTING BASE Housing for heavy-duty plug connectors HC-B 16-SMLD-67/M2PG21 HC-B16-SMLD-67/M2PG21 Phoenix Contact HC-B 系列 连接器外壳 , PG21螺纹
1673850
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-TFL-76/ O1PG29S Sleeve Housing, For Single Locking Latch, Height 76mm, Without Screw Connection, 1X PG29, Lateral Cable Entry HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 16-TFL-76/O1PG29S HC-B16-TFL-76/O1PG29S
1775693
Phoenix Contact
Heavy Duty Power Connectors HC-B 32-AMQ HEAVYCON Panel Mounting Base B32, With Double Locking Latch, Height 30mm PNL MNT BASE B32 DBL LOCK LATCH Housing for heavy-duty plug connectors HC-B 32-AMQ PANELMOUNTINGBASEB3230MM
1636363
Phoenix Contact

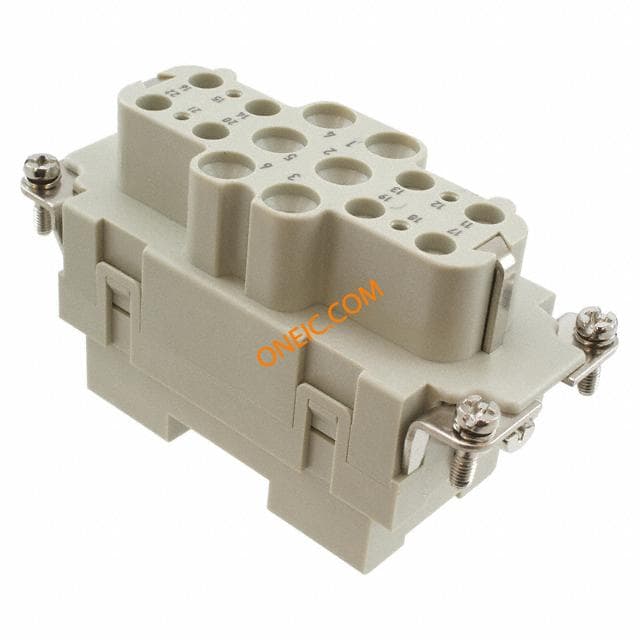

Heavy Duty Power Connectors Fem K6/12 W/6 Power 12 Control, Screw Conn HEAVYCON Insert F 6Power/12Signal POS Screw ST Panel Mount CONN FMALE INSERT 6PWR 12 CONT Contact insert HC-K 6/12-EBUS HC-K6/12-EBUS Phoenix Contact HC 系列 18P+E 母座 触点插件 , 额定电流 40A/ 400 V
