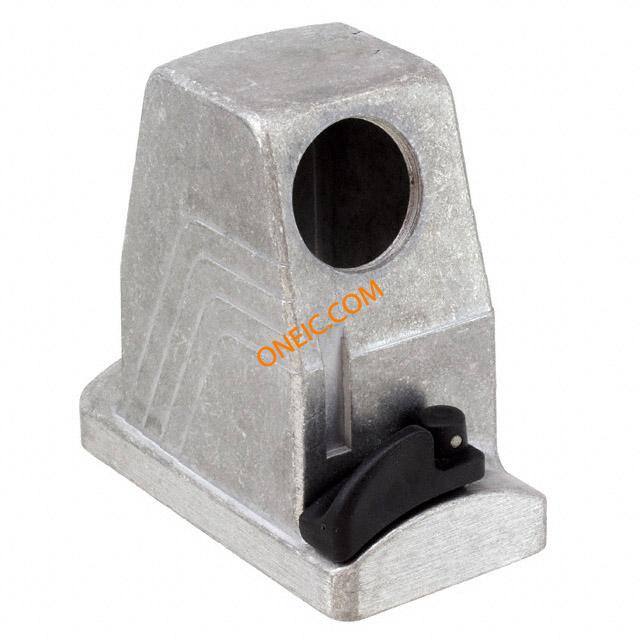

点击放大查看
1460368
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ HC-B 10-TMB-100/ O1STM32S-EEE HEAVYCON SLEEVE HOUSING Heavy Duty Power Connectors HC-B 10-TMB-100/ O1STM32S-EEE HC-B10-TMB-100/O1STM32S-EEE |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 尺寸 | B10 | 包装方式 | Bulk |
| 螺纹尺寸 | M32 | 连接器类型 | Hood |
| 壳体材料 | Aluminum, Die Cast | 尺寸/外形 | 4.134" L x 2.244" W x 3.940" H (105.00mm x 57.00mm x 100.00mm) |
| 端接样式 | Screw | ||
产品信息
| 样式 | Side Entry | 系列 | B10 |
| 产品特性 | Salt Water Resistant | 产品子类型 | Housings |
| 锁定位置 | Bayonet Lock on Hood | 附件类型 | Sleeve Housing |
环境参数
| 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40°C ~ 125°C |
文档与媒体
