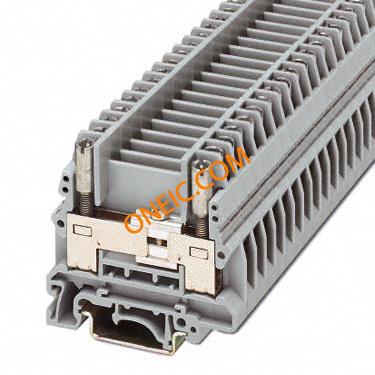

点击放大查看
0309086
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks URTK/S-BEN Conn Terminal Block M 2 POS Screw ST 57A TERM BLOCK WITH UNIVERSAL FOOT COMPONENTTERMINALBLOCKWIDTH8.2MM Splice terminal: rail; ways:1; terminals:2; 0.5÷10mm2; polyamide |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Connector Terminal Blocks |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 50A | UL电压 | 300V |
| 电流 - IEC | 41A | IEC电压 | 500V |
| 测试电压 | 6kV | 额定电压 | 500 V |
| 极数 | 1 | 连接器阻抗 | rail |
| 最大额定电流 | 57 A | 最小输入电压 | 500V |
机械参数
| 颜色 | Gray | 深度 | 8.2 |
| 宽度 | 8.2 mm | 高度 | 66 |
| 长度 | 61 mm | 重量 | 0.03 kg |
| 导线线规 | 20 | 端接方式 | Screw |
| 基体材料 | polyamide | 安装类型 | Straight |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 61 | 包装数量 | 50 |
| 剥线长度（范围） | 10mm | 端子宽度 | 8.1mm |
| 端接样式 | Screw | 导线剥线长度 | 10mm |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 8-26 AWG |
| 线规或范围 - mm² | 0.5-10mm² | ||
产品信息
| SPG | 50 | 类型 | Terminal Block |
| 连接器性别 | M | 断开类型 | Switch, Slide |
| 单元数量 | 50 | 行业别名 | URTK/S-BEN |
| 层数 | 1 | ||
