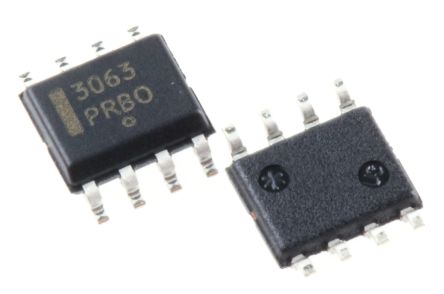

NCP3063DR2G
| 制造商 | onsemi |
| 描述 | Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 3V to 40V 8-Pin SOIC N T/R IC REG BUCK BOOST INV ADJ 8SOIC Voltage Regulators - Switching Regulators 1.5 A DCDC SW REG SWITCH REG, STEP UP/DOWN, 1.5A, SMD REGULATOR,SWITCHDC/DC1.5A,8PINSOIC , 反相 升压/降压转换器, 1.5A, 可调输出, 150 kHz, 8针 SOIC封装 Switching Voltage Regulators 1.5 A DCDC SW REG |
| 分类 |
商业参数
| 其他名称 | NCP3063DR2GOSTR | 产品类别 | Voltage Regulators - Switching Regulators |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 2500 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
电气参数
| PWM类型 | Hybrid | 频率 | :150Hz |
| 效率 | 85.5(Min) % | 输出类型 | Adjustable |
| 稳压器类型 | :Step Down, Step-Up & Voltage-Inverting Regulator | 额定电压 | 3 V |
| 电源调整率 | 1.5|2|8 mV | 负载调整率 | 1.6|5|9 mV |
| 振荡器类型 | 150kHz | 输出电流 | 1.5 A |
| 供电电压 | 3 to 40 V | 输出数量 | 1 |
| 开关稳压器 | Yes | 开关频率 | 190 kHz |
| 同步整流 | No | 最小输入电压 | 1.25 V ~ 40 V |
| 输入逻辑低电平 | -100nA | ||
机械参数
| 宽度 | 4(Max) | 重量 | 0.0001 |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC N | 材料表面处理 | :- |
| 总长度 | 5(Max) | 包装数量 | SOIC N |
| 位数 | 8 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 8-SOIC N | ||
产品信息
| 类型 | Non-Inverting|Inverting|Step Up|Step Down | 基本单元 | :3063 |
| 印刷电路板数量 | 8 | ||
环境参数
| 工作温度 | 0 to 70 °C | 可用温度范围 | 0to+70°C |
文档与媒体
