点击放大查看

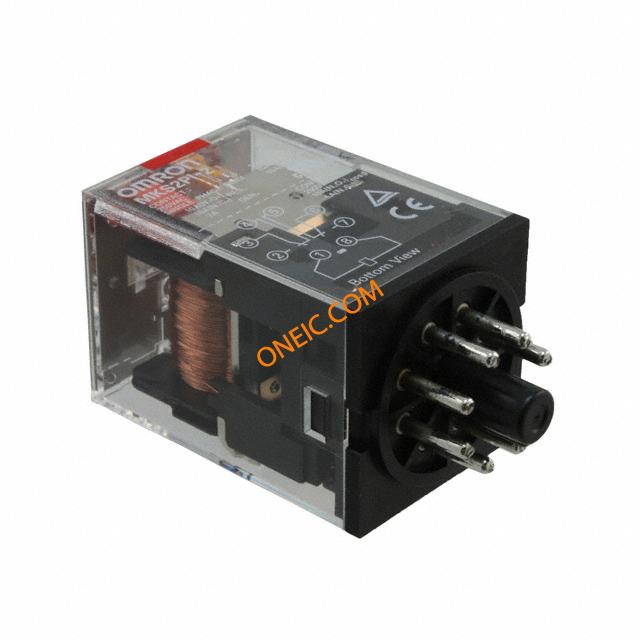

MKS2PI-2 AC24
| 制造商 | Omron Corporation |
| 描述 | General Purpose Relays DPDT Test 1-8 Ry Octal GP RELAY GEN PURPOSE DPDT 10A 24V 欧姆龙(OMRON) 功率继电器 |
| 分类 |
商业参数
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 2.3 VA |
| 线圈电流 | 96.3mA | 释放时间 | 20ms |
| 线圈电阻 | 48.4 Ohms | 供电电压 | 24VAC |
| 开关电压 | 250VAC, 30VDC - Max | Vgs(th)（最大）@ Id | 7.2 VAC |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 19.2 VAC | 触点额定电流 | 10A |
机械参数
| 包装方式 | Bulk | 触点形式 | DPDT (2 Form C) |
| 安装类型 | Socketable | 触头材料 | Silver Tin Indium (AgSnIn) |
| 端接样式 | Plug In, 8 Pin (Octal) | ||
产品信息
| 产品特性 | Mechanical Indicator, Test Button | 继电器类型 | General Purpose |
环境参数
| 动作时间 | 20ms | 工作温度 | -40°C ~ 60°C |
文档与媒体
