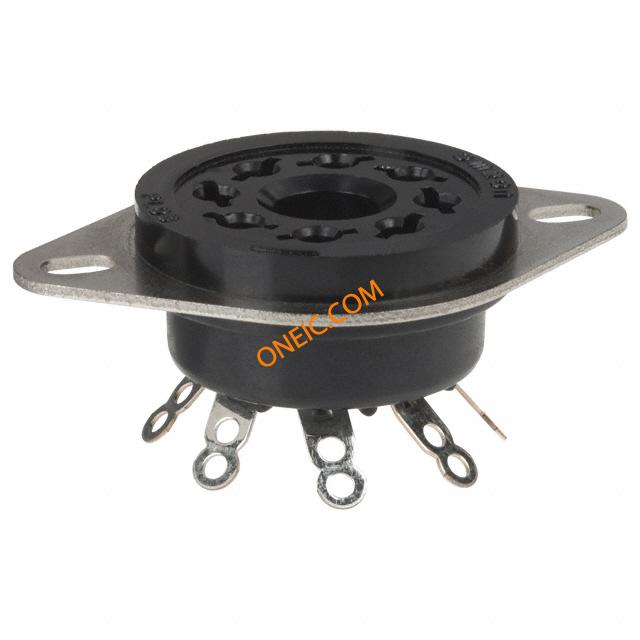

点击放大查看
PL08
| 制造商 | Omron Corporation |
| 描述 | Relay Sockets & Hardware 8 PIN OCTAL SOCKET Conn Relay Socket SKT 8 POS Solder ST Thru-Hole RELAY SOCKET DPDT PANEL MT MK RELAY SOCKET SOCKET, CHASSIS, 8 PIN ACCESSORY,RELAY;SOLDER;CHASSIS;MK2POLE;-10TODEGC;GENERALPURPOSE 欧姆龙(OMRON) 共用插座 Socket; PIN:8; Mounting: soldered; Series: MK2 SOCKET -MK2P RELAY |
| 分类 |
商业参数
| 交货时间 | 56 Days | 其他名称 | Z836 |
| 子类别 | Connector Socket | 零件号别名 | 1181272 |
| 产品类别 | Relay Sockets & Hardware | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 标准 | ULRecognized,CSACertified,CEMarked |
| 海关税号 | 85366910 | ||
电气参数
| 额定电压 | :250VAC | 最大额定电流 | :10A |
机械参数
| 深度 | 33.52 | 重量 | 0.014 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Through Hole | 端子类型 | :Solder Lug |
| 连接器类型 | :Solder Lug | 安装样式 | DIN Rail |
| 引脚数 | :8 | 总长度 | 50.54 |
| 包装数量 | 10 | 端接样式 | Solder Lug |
| 外径 | :29mm | 触点数 | 8 |
| 接触件端接 | :Solder | 位数 | 8 |
| 安装面板厚度 | :40mm | ||
产品信息
| SPG | 10 | 类型 | Relay Socket |
| 连接器性别 | SKT | 系列 | MK2P |
| 继电器类型 | GeneralPurpose | 附件类型 | Socket, Round Back Connecting |
| 电气寿命 | round socket | 单元数量 | 1 |
| 应用细节 | Use with MK2P series relays | 有铅工艺兼容 | :Yes |
| 适用产品/相关产品 | MK Series, DPDT | ||
环境参数
| 可用温度范围 | -10to+40°C | ||
