XS5C-D4S2
| 制造商 | |
| 描述 | Conn M12 Circular F 4 POS Crimp RA Cable Mount 4 Terminal 1 Port CONN SOCKET RT ANG 4POS SEALED Circular Metric Connectors Socket, Angled 5 Pin Screw-on 6mm Dia Cbl WATERPROOF SENSOR CONNECTOR Circular Connector Connector Type: Receptacle, Female Sockets Number of Positions: 4 Shell Size - Insert: M12-4 Mounting Type: Free Hanging (In-Line), Right Angle Fastening Type: Bayonet Lock |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Circular |
| 零件号别名 | 1825514 684392 | 产品类别 | Circular Metric Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366990 | ||
电气参数
| 额定电压 | 250VDC | 最大额定电流 | 4A |
机械参数
| 深度 | 39.6 | 重量 | 0 |
| 直径 | 20 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 触头类型 | 4Signal | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 安装样式 | Free Hanging |
| 触头材料 | Phosphor Bronze | 总长度 | 35.9 |
| 端接样式 | Screw | 第一触头极性 | F |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | M12-4 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 接触镀层厚度 | 16µin (0.40µm) | 第一连接器安装类型 | :Free Hanging |
产品信息
| 类型 | M12 Circular | 连接器性别 | RCP |
| 系列 | XS5 | 产品子类型 | Connectors |
| 附件类型 | :Right Angle Sensor Connector | 有铅工艺兼容 | :Yes |
| 适用产品/相关产品 | :Omron Sensors | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -25°C ~ 70°C |
文档与媒体
相关型号
XS5G-D423
omron electronics
Conn M12 Circular M 4 POS Solder ST Cable Mount 4 Terminal 1 Port CONN PLUG STRAIGHT 4POS W/PINS Circular Metric Connectors Plug Straight 4pin Solder for 4mmCable WATERPROOF SENSOR CONNECTOR
XS2Z-14
omron electronics
Connector Accessories Dust Cover Rubber Black COVER DUST M12 FOR CONNECTORS Circular Metric Connectors Sensor I/O Connector
XS2Z-22
omron electronics
Connector Accessories Dust Cover Brass Nickel Finish CONN WATERPROOF COVER FOR XS Circular Metric Connectors Accessories for XS Connector 欧姆龙(OMRON) 其它传感器附件
XS5G-D422
omron electronics
Conn M12 Circular M 4 POS Solder RA Cable Mount 4 Terminal 1 Port CONN PLUG RT ANG 4POS W/PINS Circular Metric Connectors Plug Angled 4pin Solder for 6mmCable
XS5G-D4S1
omron electronics
Conn Circular PIN 4 POS Screw ST Cable Mount 4 Terminal 1 Port CONN PLUG STRAIGHT 4POS SEALED Circular Metric Connectors Plug Straight 4pin Screw for 6mmCable 欧姆龙(OMRON) 连接电缆 Circular Connector Connector Type: Plug, Male Pins Number of Positions: 4 Shell Size - Insert: M12-4 Mounting Type: Free Hanging (In-Line) Fastening Type: Bayonet Lock
XS5G-D4S7
omron electronics
Conn M12 Circular M 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN PLUG STRAIGHT 4POS SCREW-ON Circular Metric Connectors Plug Straight 4pin Screw for Cable 8mm
XS5G-D4S9
omron electronics
Conn M12 Circular M 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN PLUG STRAIGHT 4POS SCREW-ON Circular Metric Connectors Plug Straight 4pin Screw for 7mmCable
XS2Z-15
omron electronics
Connector Accessories Dust Cover Polyvinyl chloride Red COVER DUST M12 FOR CONNECTORS Circular Metric Connectors Sensor I/O Connector
XS5G-D4S2
omron electronics
Conn M12 Circular M 4 POS Crimp RA Cable Mount 4 Terminal 1 Port CONN PLUG RT ANG 4POS SEALED Circular Metric Connectors Plug Angled 4pin Screw for 6mmCable Circular Connector Connector Type: Plug, Male Pins Number of Positions: 4 Shell Size - Insert: M12-4 Mounting Type: Free Hanging (In-Line), Right Angle Fastening Type: Bayonet Lock
XS5G-D421
omron electronics
Conn Circular PIN 4 POS Solder ST Cable Mount 4 Terminal 1 Port Circular Metric Connectors Plug Straight 4pin Solder for 6mmCable CONN PLUG STRAIGHT 4POS W/PINS WATERPROOF SENSOR CONNECTOR

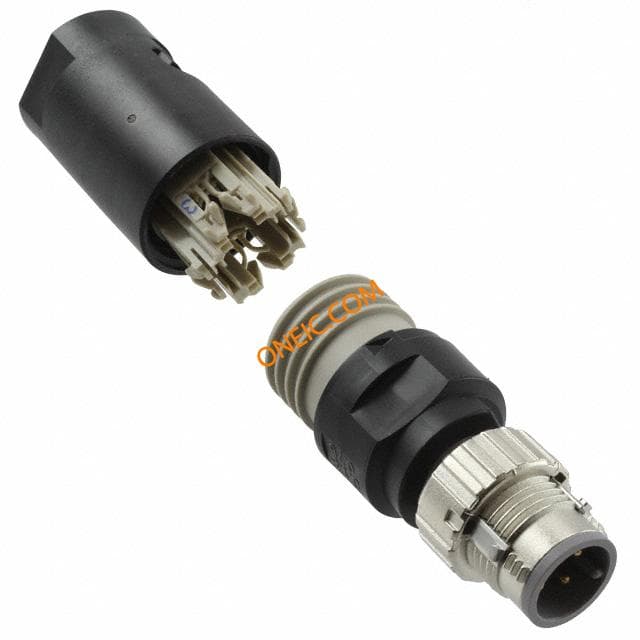

XS5G-D418
