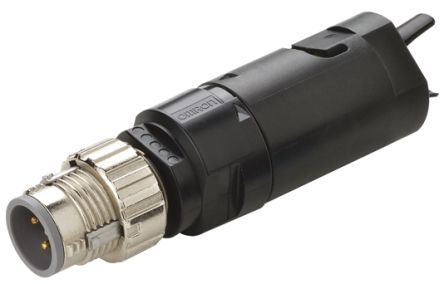

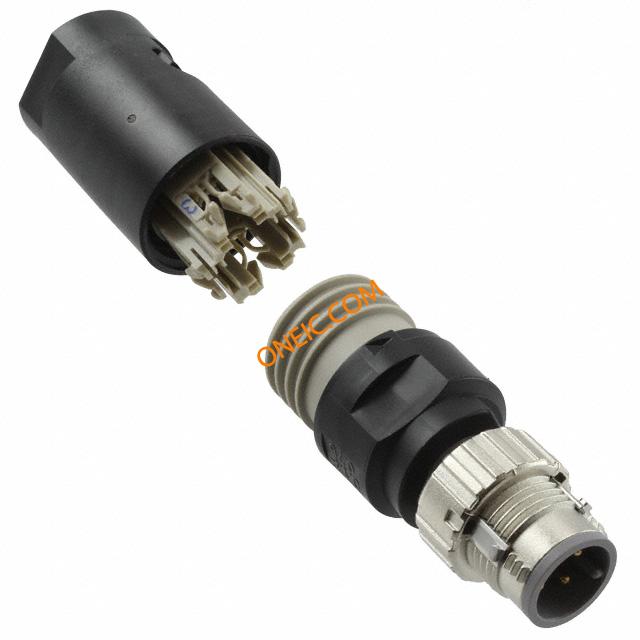

XS5G-D418
| 制造商 | |
| 描述 | CONN PLUG STRGHT 4POS PIN IDC Circular Metric Connectors M12 Plug Field Assemble IDC XS5G-D418 4PIN PLUG CONNECTOR, SENSOR Omron XS5G 系列 4路 电缆安装 直向 连接器 插头 , 公触点, 锁接合 |
| 分类 |
商业参数
| 其他名称 | OR1176 | 零件号别名 | 728916 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250VDC | 最大额定电流 | 4A |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | IDC Block | 安装类型 | Free Hanging (In-Line) |
| 电缆直径 | 6 mm | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 壳体材料 | Brass | 端接样式 | IDC |
| 第一触头极性 | Pin (Male) | 位数 | 4 |
| 外壳尺寸-插件 | M12-4 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 接触镀层厚度 | 5.9µin (0.15µm) | ||
产品信息
| 产品子类型 | Connectors | 适用产品/相关产品 | :Sensors |
环境参数
| 密封等级 | IP 67 | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -25°C ~ 70°C | ||
文档与媒体
相关型号
XS5C-D423
omron electronics
Conn M12 Circular F 4 POS Solder ST Cable Mount 4 Terminal 1 Port CONN RCPT STRAIGHT 4POS W/SKTS Circular Metric Connectors Socket Straight 4Pin Solder, 4mm Dia Cbl WATERPROOF SENSOR CONNECTOR
XS5C-D4S7
omron electronics
Conn M12 Circular F 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN SOCKET 4POS STR SCREW-ON Circular Metric Connectors Socket Straight 4Pin Screw-on 8mm Dia Cbl
XS5C-D421
omron electronics
Conn Circular SKT 4 POS Solder ST Cable Mount 4 Terminal 1 Port CONN RCPT STRAIGHT 4POS W/SKTS Circular Metric Connectors Socket Straight 4Pin Solder, 6mm Dia Cbl WATERPROOF SENSOR CONNECTOR SOCKET;SOCKETSTRGHT4PINSLDER6MDIACBL
XS5C-D4S2
omron electronics
Conn M12 Circular F 4 POS Crimp RA Cable Mount 4 Terminal 1 Port CONN SOCKET RT ANG 4POS SEALED Circular Metric Connectors Socket, Angled 5 Pin Screw-on 6mm Dia Cbl WATERPROOF SENSOR CONNECTOR Circular Connector Connector Type: Receptacle, Female Sockets Number of Positions: 4 Shell Size - Insert: M12-4 Mounting Type: Free Hanging (In-Line), Right Angle Fastening Type: Bayonet Lock
XS5C-D422
omron electronics
Conn M12 Circular F 4 POS Solder RA Cable Mount 4 Terminal 1 Port CONN RCPT RT ANG 4POS W/SKTS Circular Metric Connectors Socket, Angled 5 Pin Solder, 6mm Dia Cbl
XS5C-D4S1
omron electronics
Conn Circular SKT 4 POS Screw ST Cable Mount 4 Terminal 1 Port Circular Metric Connectors Socket Straight 4Pin Screw-on 6mm Dia Cbl CONN SOCKET STRAIGHT 4POS SEALED 欧姆龙(OMRON) 其它传感器附件 Circular Connector Connector Type: Receptacle, Female Sockets Number of Positions: 4 Shell Size - Insert: M12-4 Mounting Type: Free Hanging (In-Line) Fastening Type: Bayonet Lock
XS2Z-13
Omron Electronics
Circular Metric Connectors Connector COVER DUST M12 FOR CONNECTORS Connector Accessories Dust Cover
XS5C-D4C1
omron electronics
Conn M12 Circular F 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN SOCKET 4POS STR CRIMP Circular Metric Connectors Socket Straight 4Pin Crimp, 6mm Dia Cbl
XS2Z-11
omron electronics
Connector Accessories Water Resistive Cover COVER WATER-RESIST M12 FOR CONN Circular Metric Connectors Connector 欧姆龙(OMRON) 其它传感器附件
XS5C-D418
Omron
M12 SOCKET FIELD ASSEMBLE IDC CONN RCPT STRGHT 4POS SKT IDC Circular Metric Connectors M12 Socket Field Assemble IDC XS5C-D418 4PIN SOCKET CONNECTOR, SENSOR Omron XS5C 系列 4路 电缆安装 直向 连接器 插座 , 母触点, 锁接合
