点击放大查看

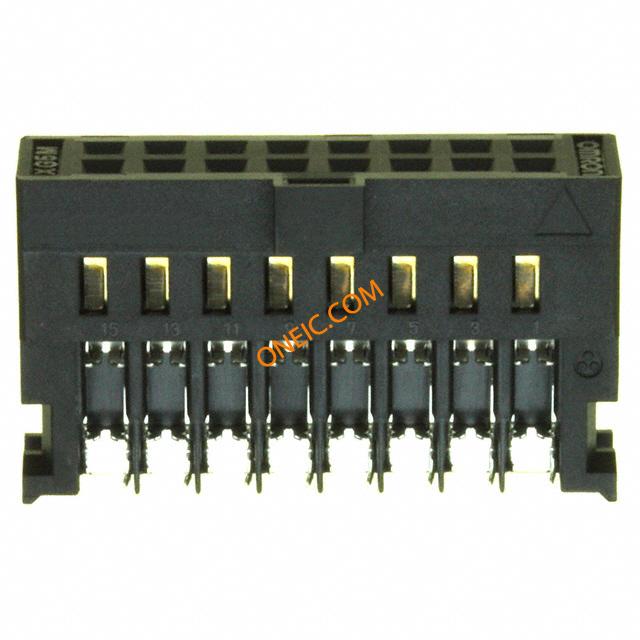

XG5M-1632-N
| 制造商 | |
| 描述 | ヘッダ & ワイヤハウジング IDC 2Row Socket 16P Size1 1PolarizeGuide Conn Housing SKT 16 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 16POS AWG24 Headers & Wire Housings IDC 2Row Socket 16P Size1 1PolarizeGuide WIRE-BOARD CONN, SOCKET, 16POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 89 Days | 子类别 | Connector Discrete Wire Housing |
| 零件号别名 | 1756276 427595 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 120 | 工厂包装数量 | 120 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 300 V | 最大额定电流 | 3 A |
| 最小输入电压 | 300VAC | ||
机械参数
| 颜色 | Black | 深度 | 14.4 |
| 间距 | 0.100" (2.54mm) | 高度 | 7.1 |
| 重量 | 0 | 包装方式 | Bulk |
| 导线类型 | Discrete | 导线线规 | 24 AWG |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 安装样式 | Wire | 排数 | 2 |
| 触头材料 | :Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 24.9 | 电缆端接方式 | IDC |
| 端接样式 | IDC | 触点数 | 16 |
| 接触件端接 | :IDC / IDT | 位数 | 16 |
| 接触镀层厚度 | 5.9µin (0.15µm) | ||
产品信息
| 类型 | Housing | 连接器性别 | SKT |
| 系列 | XG5 | 产品特性 | Closed End, Polarizing Key |
| 产品子类型 | Receptacles / Sockets - Housings | 有铅工艺兼容 | :Yes |
