点击放大查看

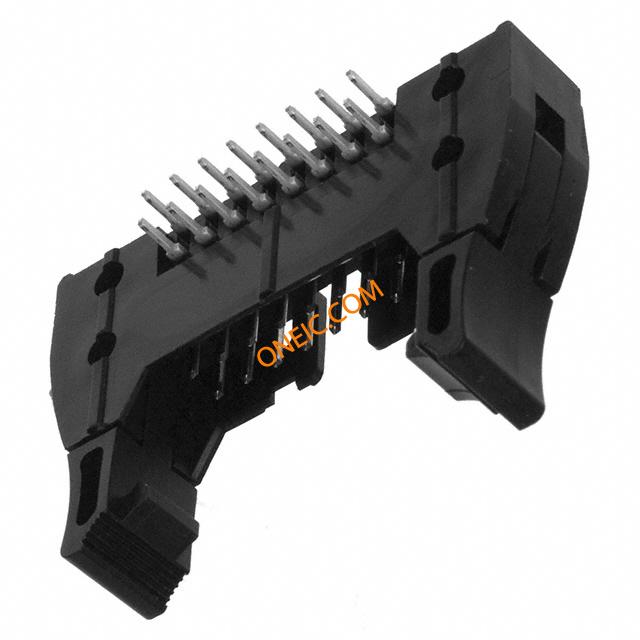

XG4A-1634
| 制造商 | |
| 描述 | Headers & Wire Housings Plug Long Lock 16P RightAngle 1Polarize CONN PLUG 16POS 3A RT ANGL DIP Conn Ejector Header PL 16 POS 2.54mm Solder RA Thru-Hole 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1753103 385240 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 70 | 工厂包装数量 | 70 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 300 V | 开关功能 | Latched |
| 最大额定电流 | 3 A | 绝缘电阻 | 1000 MOhms |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Latch, Long/Eject Hooks |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 16 |
| 位数 | 16 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 类型 | Shrouded | 系列 | XG4 |
| 产品子类型 | Plugs - PCB | 行业别名 | XG4A-1634 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 55 C to + 105 C | ||
