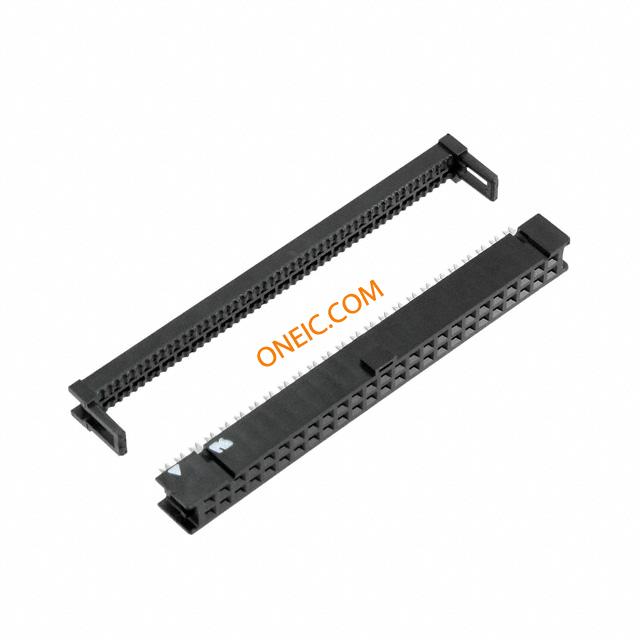

XG4M-5030-T

制造商	Omron Corporation
描述	Conn IDC Connector SKT 50 POS 2.54mm IDT RA Cable Mount CONN SOCKET 50POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 50Pin 1Polar 欧姆龙(OMRON) 其它传感器附件
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	89 Days	子类别	Connector Headers and PCB Receptacles
零件号别名	1756226 427548	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	40

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

额定电压	250 V	接触电阻	20
最大额定电流	1 A	最小输入电压	250VAC

机械参数

颜色	Black	间距	2.54 mm
高度	16.1	包装方式	Bulk
导线类型	Ribbon Cable	导线线规	28 AWG
排间距	0.100" (2.54mm)	端接方式	IDT
触头类型	Female Socket	外壳颜色	Black
安装类型	Cable Mount	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Cable
排数	2	触头材料	Phosphor Bronze
壳体材料	Polybutylene Terephthalate	总长度	68.1
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Socket (Female)	触点数	50
位数	50	接触镀层厚度	5.9µin (0.15µm)

产品信息

类型	IDC Connector	连接器性别	SKT
系列	XG4	产品特性	Feed Through; Polarizing Key, Strain Relief
产品子类型	Receptacles / Sockets - Housings

文档与媒体

PDF 文档

How to Read Date Codes

PDF 文档

XG4_0913.pdf

PDF 文档

en-xg4.pdf
