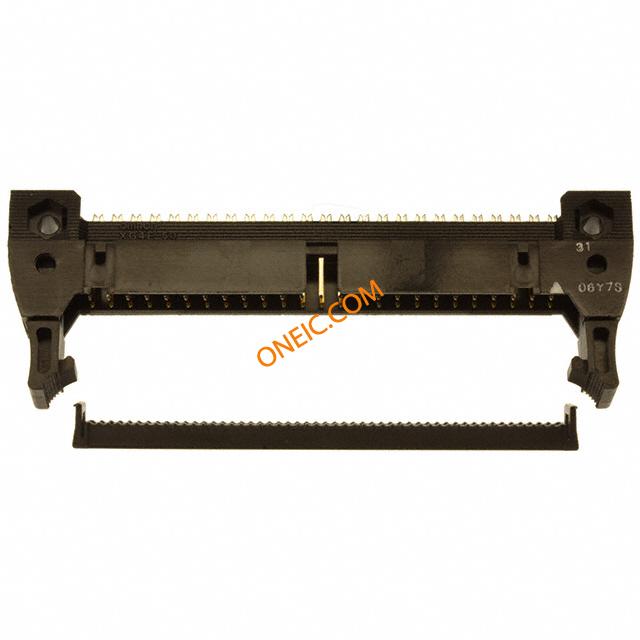

点击放大查看
XG4E-5031
| 制造商 | |
| 描述 | Headers & Wire Housings LongLock Plug 50Pin OpenCover 1Polarized Conn IDC Connector PL 50 POS 2.54mm IDT RA Cable Mount CONN PLUG 50POS 1A OPENEND COVER WIRE-BOARD CONNECTOR PLUG, 50POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 89 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1756258 427521 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 30 | 工厂包装数量 | 30 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :OMRON - XG4 Series | 额定电压 | 250 V |
| 接触电阻 | 20 | 最大额定电流 | 1 A |
| 绝缘电阻 | 1000 MOhms | 最小输入电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 8.2 |
| 间距 | 0.100" (2.54mm) | 高度 | 33.1 |
| 重量 | 0 | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 28 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 连接器类型 | Plug |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch, Long/Eject Hooks |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 82.8 | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Pin (Male) |
| 触点数 | 50 | 接触件端接 | :IDC / IDT |
| 位数 | 50 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | PL |
| 系列 | XG4 | 产品特性 | Feed Through |
| 产品子类型 | Plugs - Housings | ||
环境参数
| 工作温度 | - 55 C to + 105 C | ||
