点击放大查看

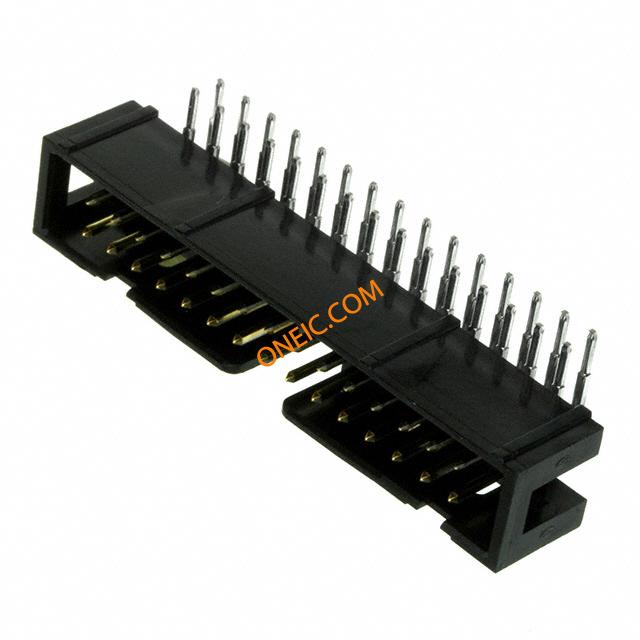

XG4C-3034
| 制造商 | |
| 描述 | Headers & Wire Housings MIL BoxType Plug 30P RightAngle 1Polarize CONN PLUG 30POS 3A RT ANGL DIP Conn Shrouded Header PL 30 POS 2.54mm Solder RA Thru-Hole |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1756249 427498 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 70 | 工厂包装数量 | 70 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 300 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Through Hole | 触点数 | 30 |
| 位数 | 30 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 类型 | Shrouded | 系列 | XG4 |
| 产品子类型 | Headers | 加载位置数 | All |
文档与媒体
相关型号
XG5M-3032-N
omron electronics
Conn Housing SKT 30 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 30POS AWG24 Headers & Wire Housings IDC 2Row Socket 30P Size1 1PolarizeGuide 欧姆龙(OMRON) 其它传感器附件
XG5M-3035-N
omron electronics
Conn Housing SKT 30 POS 2.54mm Crimp ST CONN IDC SOCKET 30POS AWG28-26 Headers & Wire Housings IDC 2Row Socket 30P Size2 1PolarizeGuide
XG4M-3030
Omron Electronics
ヘッダ & ワイヤハウジング OpenCoverSocket 30P NoStrainRelief 1Polr Conn IDC Connector SKT 30 POS 2.54mm IDT RA Cable Mount CONN SOCKET 30POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 30P NoStrainRelief 1Polr 欧姆龙(OMRON) 其它传感器附件
XG4M-3030-U
Omron Electronics
Headers & Wire Housings Socket+NoLockStrain ReliefSet 30Pin 1Plr CONN SOCKT 30POS STRN RLF W/LOCK Conn IDC Connector SKT 30 POS 2.54mm IDT RA Cable Mount
XG4Z-0002
Omron Electronics
Headers & Wire Housings Top Lock Lever XG4C Plug to XG4-5 Socket LEVER LOCK FOR XG4 PLUG Connector Accessories Lock Lever Polyamide Natural 欧姆龙(OMRON) 其它传感器附件
XG4M-3030-T
Omron Electronics
Headers & Wire Housings Socket+StrainRelief Set 30Pin 1Polar CONN SOCKET 30POS W/ STRAIN RLF Conn IDC Connector SKT 30 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件
XG4H-3031
Omron Electronics
Board to Board & Mezzanine Connectors BtoB Socket 30Pin Straight 1Polarize CONN SOCKET 30POS STRAIGHT PCB Conn Socket Strip SKT 30 POS 2.54mm Solder ST Thru-Hole 欧姆龙(OMRON) 其它传感器附件

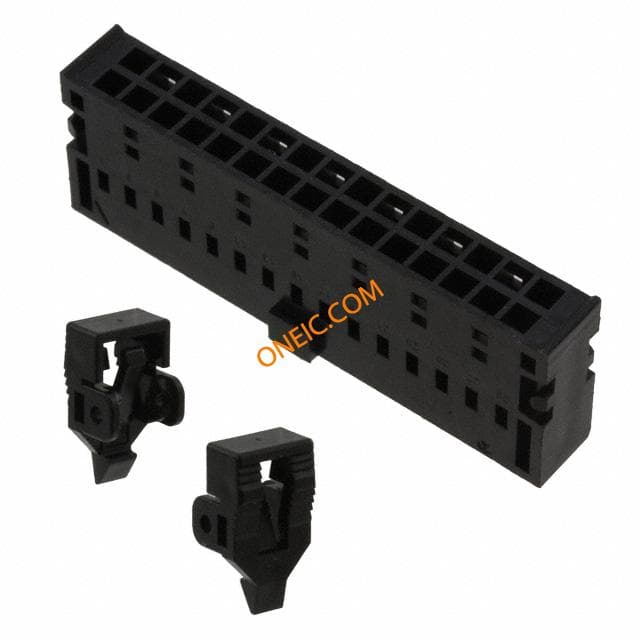

XG5N-301-U
