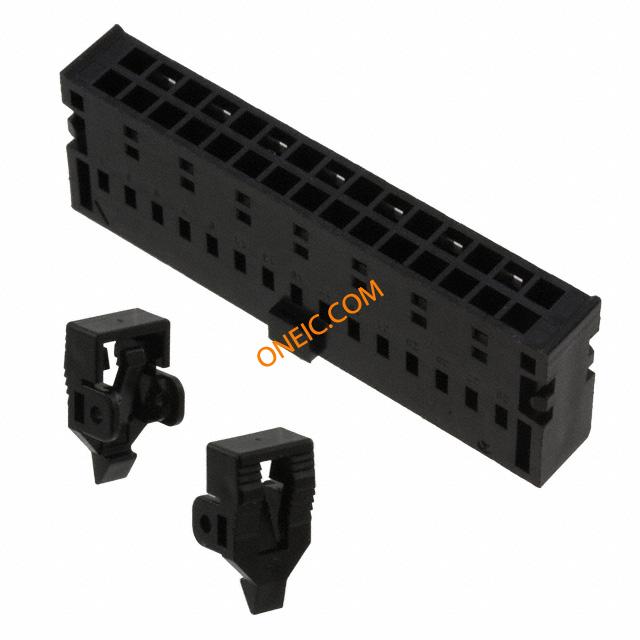

点击放大查看
XG5N-301-U
| 制造商 | |
| 描述 | CONN SOCKET 30POS IDC W/ LOK |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 100 | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock/Eject Hooks |
| 排数 | 2 | 接触件端接 | Crimp |
| 位数 | 30 | ||
产品信息
| 备注 | Contacts Not Provided | ||
文档与媒体
PDF 文档
