A6DR-0100
| 制造商 | |
| 描述 | DIP Switches / SIP Switches 10 PN SEALD SIDE ACT Switch DIP ON OFF SPST 10 Piano 0.1A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Box SWITCH DIP 10POS SIDE SEALED 30V DIP Switch 10P PCB Piano, 0.1 A @ 5 V dc, 10-Way, -20 to +70°C Switch DIP ON OFF SPST 10 Piano 0.1A 30VDC PC Pins 5000Cycle 2.54mm Thru-Hole Box SWITCH DIP 10POS SIDE ACT SEALED Switch: DIP-SWITCH; Poles number:10; ON-OFF; 0.03A/30VDC; 100MΩ DIP Switches Actuator Type : - Construction: Unsealed Contact Configuration : 10 Pole Contact Rating : 100mA, 5 VDC Service Life (Electrical): 2K Oper. Min. Service Life (Mechanical): 5K Oper. Min. Switch Type : DIP Termination Configuration : PCB DIL switch THD 10P, A6DR-0100, Omron Electronic Components |
| 分类 |
商业参数
| 交货时间 | 96 Days | 其他名称 | A6DR0100 |
| 子类别 | Switch DIP | 零件号别名 | 363496 |
| 产品类别 | DIP Switches / SIP Switches | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电路 | SPST | 测试电压 | 500 |
| 额定电压 | 30 | 极数 | 10 |
| 开关电压 | ON-OFF | 接触电阻 | <100 mOhm |
| 开关容量 | 30 mA@ 30 VDC | 最大额定电流 | 100 mA |
| 绝缘电阻 | >100 MOhm | 开关功能/额定值 | ON OFF |
| 触点额定电流 | 0.1 A @ 5 V dc | 触点额定值 @ 电压 | 100 mA |
| 直流触点额定值（阻性负载） | 0.03 A / 30 VDC | ||
机械参数

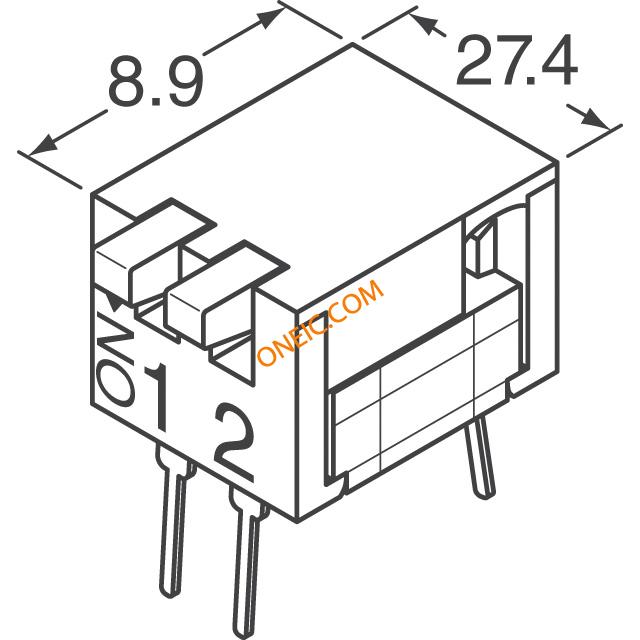

| 尺寸 | 27.4 x 10.75 x 6.4 mm | 深度 | 10.75 |
| 间距 | 2.54 | 高度 | 7.4 |
| 长度 | 27.4 | 重量 | 3.04 g |
| 包装方式 | Box | 方向 | Side Actuated |
| 柱间距 | 2.54 mm | 致动器类型 | Switch |
| 基体材料 | PBT | 安装类型 | Through Hole |
| 端子类型 | PC Pins | 执行器水平位置 | Raised |
| 接触镀层 | Gold | 封装形式 | DIP-10 |
| 驱动力 | side, short lever | 触头材料 | Beryllium Copper |
| 总长度 | 27.4mm | 连接器间距 | 2.54mm |
| 端接样式 | Solder Pin | 按钮样式/尺寸 | Piano |
| 位数 | 10 | 开关驱动电平 | SPST |
| 典型触点布局 | 10P | 执行器距PCB垂直高度 | Raised |
产品信息
| 类型 | Switches | 设计类型 | Through-Hole |
| 系列 | A6D | 可清洗 | Yes |
| CAD图纸 | 3D CAD Model | 开关类型 | DIP |
| 电路类型 | SPST | 卡标准 | DIP Switch |
| 电气寿命 | 2000cycles | 单元数量 | 1 |
| 开关特性 | "piano" long actuator | 行业别名 | A6DR-0100 |
| 连接方式 | THD | ||
环境参数
| 机械寿命 | 5000Operations | 工作温度 | - 20 C to + 70 C |
文档与媒体
