4606X-101-103LF
| 制造商 | |
| 描述 | Res Thick Film NET 10K Ohm 2% 3/4W ±100ppm/°C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk RES ARRAY 10K OHM 5 RES 6SIP 5-bussed thick film resistor,10K 0.2W Resistor Networks & Arrays 6pins 10Kohms Bussed Res Thick Film NET 10K Ohm 2% 0.75W(3/4W) ?100ppm/C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk Res Thick Film NET 10K Ohm 2% 0.75W(3/4W) ±100ppm/°C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk RESISTOR NETWORK, 10K Resistor;10Kilohms;0.75W;2%;100V(Max.);100ppm/DegC Resistor network SIL 10 kOhm ± 2 %, 4606X-101-103LF, Bourns |
| 分类 |
商业参数
| 产品类别 | Resistor Networks & Arrays | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85332100 | 抗辐射加固 | No |
| 军用标准 | Not Required | ||
电气参数
| 电路 | BussedNetwork | 容差 | ±2% |
| 电阻 | 10 KOhm | 最大功率 | 0.2W |
| 额定功率 | 3/4 W | 额定电压 | 100 V |
| 电路模式 | BUS | 电阻值 | 10 kOhms |
| 每元件功率 | 200mW | 电阻值（欧姆） | 10k |
| 元件数量 | :5 | 峰值脉冲功率 | 1/5 W |
| 电阻数量 | 5 | 电阻公差 | :± 2% |
| 基极电阻（R1） | :Radial Leaded | 绝缘电阻 | :10Mohm |
机械参数
| 深度 | 2.49mm | 宽度 | :2.49mm |
| 高度 | 0.200" (5.08mm) | 长度 | 15.19mm |
| 重量 | 0.025 | 底座类型 | :SIP |
| 包装方式 | Bulk | 引脚间距 | 2.54 mm |
| 柱间距 | 2.54 mm | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | 6 |
| 封装形式 | 6-SIP | 冷却的封装 | SIP |
| 总长度 | 15.19 mm | 尺寸/外形 | 0.598" L x 0.098" W (15.19mm x 2.49mm) |
| 端接样式 | SIP | 引线长度 | :3.43mm |
| 触点数 | 6 | 电阻材料 | :Thick Film Array |
| 位数 | 6 | 供应商器件封装 | 6-SIP |
产品信息
| 类型 | Network | 系列 | 4600X |
| 技术 | Thick Film | 电路类型 | Bussed |
| 失效率 | Not Required | 制造商全称 | 4600XSeries |
| 产品子类型 | Networks | ||
环境参数
| 工作温度 | -55 to 125 °C | 温度系数 | ±100 ppm/°C |
| 典型温度系数 | :50ppm/°C | ||
文档与媒体
相关型号
4606X-101-103LF
bourns
Res Thick Film NET 10K Ohm 2% 3/4W ±100ppm/°C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk RES ARRAY 10K OHM 5 RES 6SIP 5-bussed thick film resistor,10K 0.2W Resistor Networks & Arrays 6pins 10Kohms Bussed Res Thick Film NET 10K Ohm 2% 0.75W(3/4W) ?100ppm/C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk Res Thick Film NET 10K Ohm 2% 0.75W(3/4W) ±100ppm/°C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk RESISTOR NETWORK, 10K Resistor;10Kilohms;0.75W;2%;100V(Max.);100ppm/DegC Resistor network SIL 10 kOhm ± 2 %, 4606X-101-103LF, Bourns

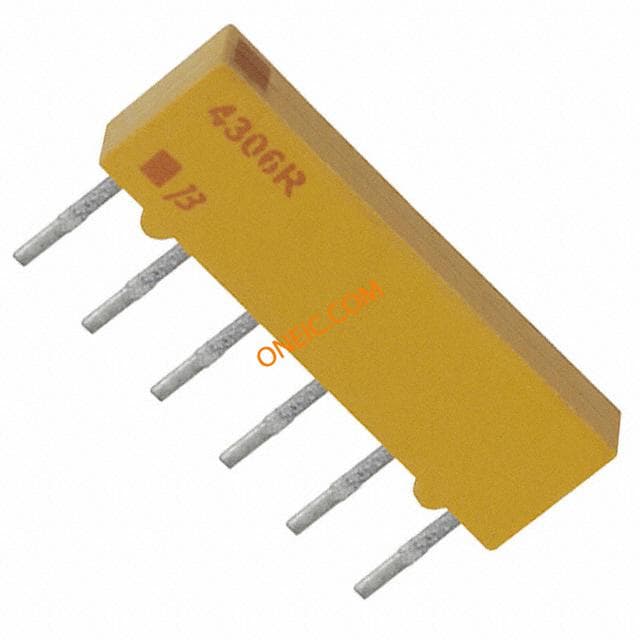

4306R-101-103LF
