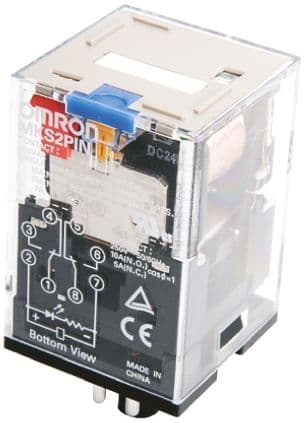

MKS2PIDC12
| 制造商 | Omron Corporation |
| 描述 | RELAY GEN PURPOSE DPDT 10A 12V MKSRELAY |
| 分类 |
商业参数
| 最小起订量 | 60 | 单位包装 | 10 |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 1.4 W |
| 线圈电流 | 112mA | 释放时间 | 20ms |
| 线圈电阻 | 107 Ohms | 供电电压 | 12VDC |
| 开关电压 | 250VAC, 30VDC - Max | Vgs(th)（最大）@ Id | 1.8 VDC |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 9.6 VDC | 触点额定电流 | 10A |
机械参数
| 包装方式 | Bulk | 触点形式 | DPDT (2 Form C) |
| 安装类型 | Socketable | 触头材料 | Silver Tin Indium (AgSnIn) |
| 端接样式 | Plug In, 8 Pin (Octal) | ||
产品信息
| 产品特性 | Mechanical Indicator, Test Button | 继电器类型 | General Purpose |
环境参数
| 动作时间 | 30ms | 工作温度 | -40°C ~ 60°C |
相关型号

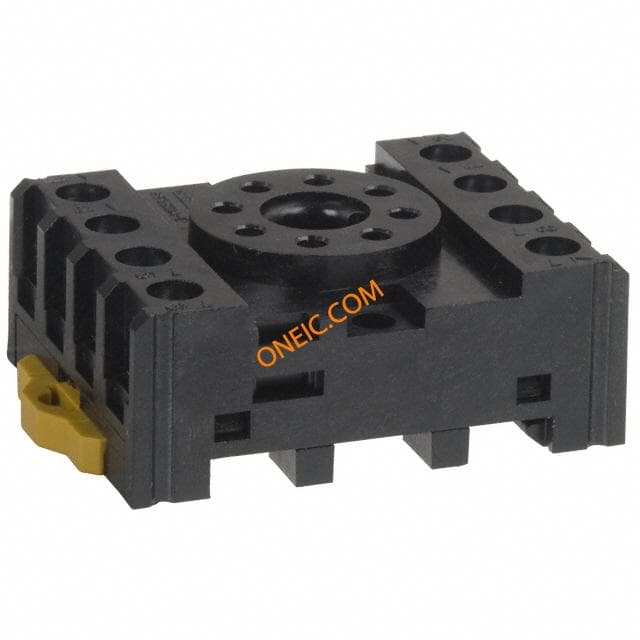

PF083A-E
Omron Industrial
Relay Sockets & Hardware DPDT SOCKET MK Conn Relay Socket SKT 8 POS Solder ST Thru-Hole SOCKET RELAY 8 OCTAL TRACK MNT Relay Socket For Use With Various Series SOCKET, DIN/SURFACE, 8 PIN, RELAY RELAY SOCKET ACCESSORY,RELAY;SOCKET;1;SURFACE/RAIL;MK1AND2POLE;-10TODEGC Socket; PIN:8; Mounting: DIN; Series: MK2 SOCKET -MK2P RELAY Base for the hat rail, PF083A-E, Omron Electronic Components 继电器插座, 适用于各种系列

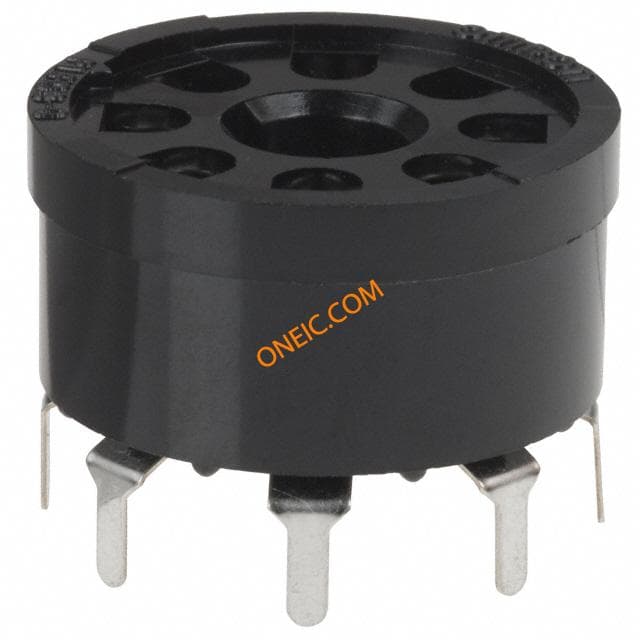

PLE08-0
