点击放大查看

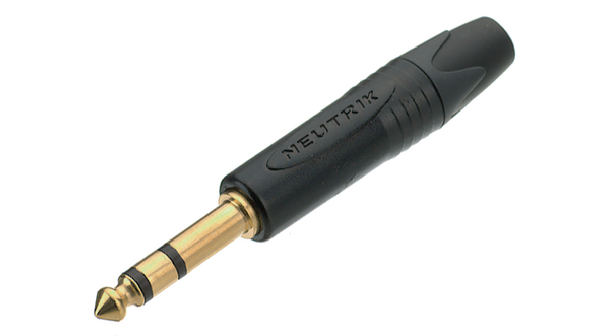

NP3X-B
| 制造商 | |
| 描述 | Phone Connectors 3P 1/4PLUG BLK SHEL GOLD CONTACTS Conn 1/4" Phone Plug PL 3 POS Solder ST Cable Mount 3 Terminal 1 Port The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
3 pole 1/4" professional phone plug, gold contacts, black shell Product Highlights:
Extra slim 1/4" plug for highest packing density Robust diecast shell in stylish design Improved chuck type strain relief for reliable cable retention Sleek design for best handling convenience PLUG, 6.35MM, BLACK/GOLD, 3POLE Plug,Phone;18AWG;Solder;4to7;ZnAl4Cu1;Nickel/Chrome;3.66in.;14.5mm Plug; Jack 6.3 mm; male; stereo; straight; for cable; soldering Jack plug 6.35 mm 3P, NP3X-B, Neutrik |
| 分类 |
商业参数
| 产品类别 | Phone Connectors | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 50 V | 供电电压 | 1/4 in |
| 绝缘电阻 | :2.0Gohm | 开关功能/额定值 | Not Switched |
| 连接器类型 - 电压输入 | stereo | ||
机械参数
| 颜色 | Black Chrome | 重量 | 1 oz |
| 壳体颜色 | black | 方向 | Horizontal |
| 引脚直径 | :6.35mm | 安装类型 | :Cable |
| 电缆直径 | 4...7mm | 连接器类型 | :Phono (RCA) Plugs |
| 接触镀层 | Nickel | 安装样式 | Cable |
| 本体材料 | :Metal | 触头材料 | Brass |
| 包装数量 | 100 | 连接器 - 电缆 | plug |
| 端接样式 | Solder | 连接器颜色 | :Black |
| 触点数 | 3 (TRS, Stereo) | 接触件端接 | :Solder |
| 最大电缆长度 | 1mm2 | 法兰下方引脚尺寸 | :6.35mm |
| 触点材料 - 镀层 | gold plated | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 100 | 连接器性别 | Male |
| 系列 | :X | 单元数量 | 1 |
环境参数
| 工作温度 | -20...65°C | ||
