点击放大查看

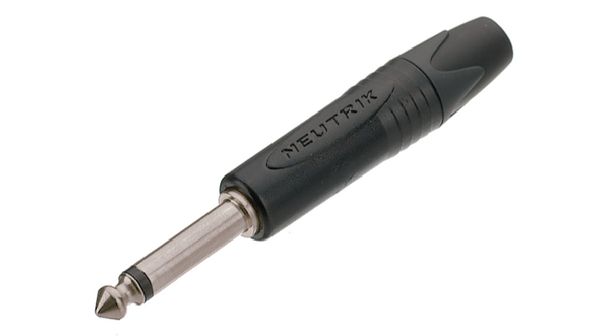

NP2X-BAG
| 制造商 | |
| 描述 | Phone Connectors 2P 1/4PLUG BLK SHEL NICKEL CONTACTS Conn Audio PL 2 POS Solder ST Cable Mount 2 Terminal 1 Port The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
2 pole 1/4" professional phone plug, nickel contacts, black shell
Product Highlights:
Extra slim 1/4" plug for highest packing density Robust diecast shell in stylish design Improved chuck type strain relief for reliable cable retention Sleek design for best handling convenience Precision machined one-piece contacts - avoid hook up of tip contact PLUG, 6.35MM, BLACK/NICKEL, 2POLE Plug,Phone;18AWG;Solder;4to7;ZnAl4Cu1;Nickel/Chrome;3.66in.;14.5mm Jack plug 6.35 mm 2P, NP2X-BAG, Neutrik |
| 分类 |
商业参数
| 产品类别 | Phone Connectors | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 50 V | 供电电压 | 1/4 in |
| 绝缘电阻 | :2.0Gohm | 开关功能/额定值 | Not Switched |
机械参数
| 颜色 | Black Chrome | 重量 | 0.825411 oz |
| 方向 | Horizontal | 引脚直径 | :6.35mm |
| 安装类型 | :Cable | 连接器类型 | :Phono (RCA) Plugs |
| 接触镀层 | Nickel | 安装样式 | Cable |
| 本体材料 | :Metal | 触头材料 | Brass |
| 端接样式 | Solder | 连接器颜色 | :Black |
| 触点数 | 2 (TS) | 接触件端接 | :Solder |
| 法兰下方引脚尺寸 | :6.35mm | 第一连接器安装类型 | :Cable |
产品信息
| 连接器性别 | Male | 系列 | :X |
