点击放大查看

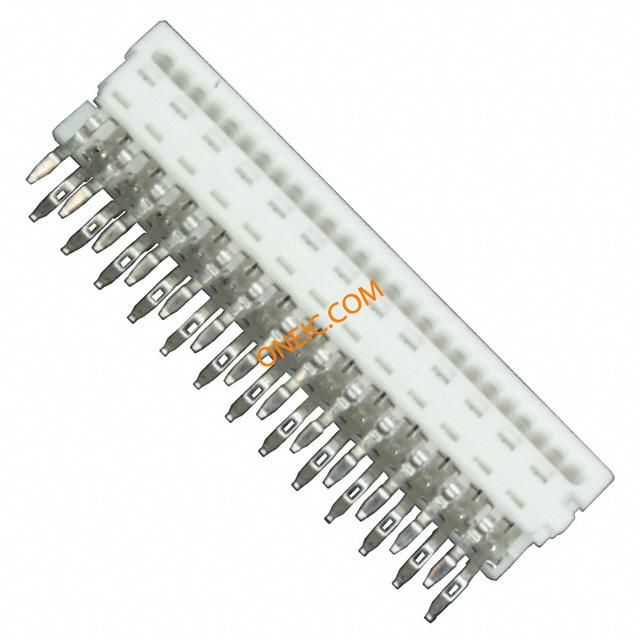

90584-1326
| 制造商 | |
| 描述 | Conn IDC Connector RCP 26 POS 2.54mm Solder ST Thru-Hole Tube CONN RECEPT IDT 26POS 1.27MM TIN Headers & Wire Housings PICOFLEX 26P HSG LOPRO IDT BOARD-IN |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Picoflex | 零件号别名 | 0905841326 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 1260 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 1.2 A |
机械参数
| 颜色 | White | 间距 | 2.54 mm |
| 包装方式 | Tube | 导线线规 | 26-28 AWG, Stranded |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 安装类型 | Through Hole, Press-Fit | 连接器类型 | Ribbon Cable |
| 接触镀层 | Tin | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 电缆端接方式 | IDC | 端接样式 | Through Hole |
| 触点数 | 26 | 位数 | 26 |
| 接触镀层厚度 | 80µin (2.03µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | 90584 | 产品特性 | Closed End |
| 产品子类型 | Receptacles / Sockets - Housings | 加载位置数 | All |
文档与媒体
PDF 文档
相关型号

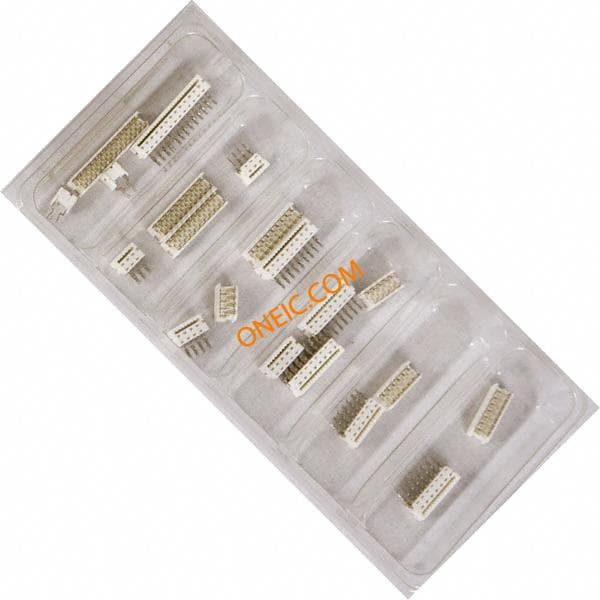

76650-0121
