76650-0121
| 制造商 | |
| 描述 | COMPONENT KITS, WIRE TO BOARD KIT 10,12,14,16,18,20,26,4,6,8POS 1.2A THROUGH HOLE MOUNTING BOARD-IN RIGHT ANGLE RECEPTACLE HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX 1.27MM ASSORTED COMPONENT KITS, WIRE TO BOARD KIT 10,12,14,16,18,20,26,4,6,8POS 1.2A THROUGH HOLE MOUNTING BOARD-IN RIGHT ANGLE RECEPTACLE HEADER 1.27MM PITCH 250V 28-26 ... Kit Description:IDT Board-In Right Angle Receptacle Header Kit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:20 PICOFLEX CONNECTOR KIT IDT BOARD-IN RT ANGLE RECEPT HEADER |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装规格 | 1 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 250 V | 最大额定电流 | 1.2 A |
机械参数
| 间距 | 1.27 mm | 包装方式 | Plastic Box |
| 导线线规 | 28-26 | 行程角度 | Right Angle |
| 连接器类型 | Receptacle Headers | ||
产品信息
| 值 | 20 pcs - 2 ea of 4, 6, 8, 10 12, 14, 16, 18, 20, 26 position | 套件类型 | Rectangular - Board In, Direct Wire to Board |
| 制造商全称 | 76650 | 配置 | Wire-to-Board |
| 电路数 | 4, 6, 8, 10, 12, 14, 16, 18, 20, 26 | ||
文档与媒体
PDF 文档
相关型号

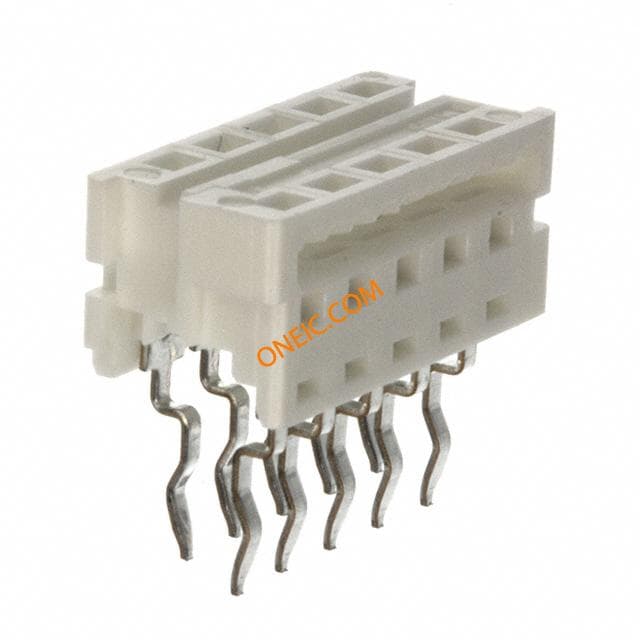

90584-1310
molex
Conn IDC Connector RCP 10 POS 2.54mm Solder ST Thru-Hole Tube CONN RECEPT IDT 10POS 1.27MM TIN Headers & Wire Housings PICOFLEX IDT REC 10P PF-50 Picoflex board in connector 10P, 90584-1310, Molex
¥2.3528
详情

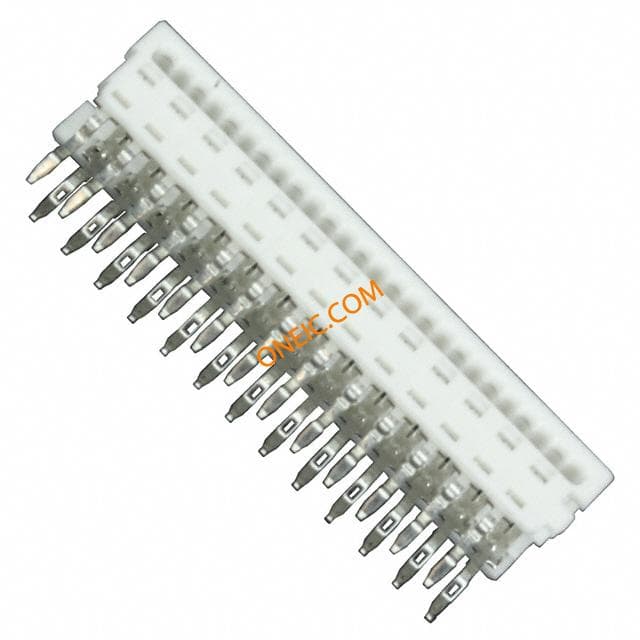

90584-1326
molex
Conn IDC Connector RCP 26 POS 2.54mm Solder ST Thru-Hole Tube CONN RECEPT IDT 26POS 1.27MM TIN Headers & Wire Housings PICOFLEX 26P HSG LOPRO IDT BOARD-IN
¥4.2840
详情
