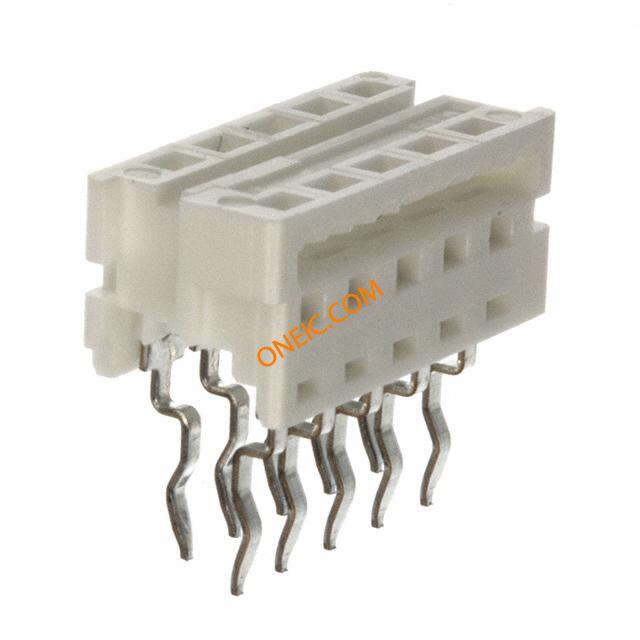

点击放大查看

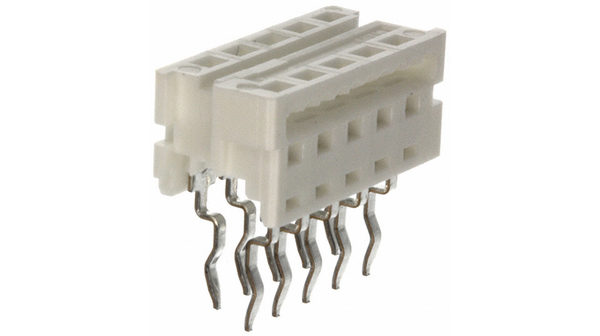

90584-1310
| 制造商 | |
| 描述 | Conn IDC Connector RCP 10 POS 2.54mm Solder ST Thru-Hole Tube CONN RECEPT IDT 10POS 1.27MM TIN Headers & Wire Housings PICOFLEX IDT REC 10P PF-50 Picoflex board in connector 10P, 90584-1310, Molex |
| 分类 |
商业参数
| 商标名 | Picoflex | 零件号别名 | 0905841310 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 1088 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 250 V | 极数 | 10 |
| 最大额定电流 | 1.2 A | ||
机械参数
| 颜色 | White | 间距 | 2.54 mm |
| 包装方式 | Tube | 导线线规 | 26-28 AWG, Stranded |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 引脚间距 | 0.100" (2.54mm) | 安装类型 | Through Hole, Press-Fit |
| 连接器类型 | Ribbon Cable | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 电缆端接方式 | IDC |
| 端接样式 | Through Hole | 第一触头极性 | Socket (Female) |
| 触点数 | 10 | 位数 | 10 |
| 接触镀层厚度 | 80µin (2.03µm) | ||
产品信息
| 类型 | IDC Connector | 设计类型 | IDT board-in connector |
| 连接器性别 | RCP | 系列 | 90584 |
| 产品特性 | Closed End | 产品子类型 | Receptacles / Sockets - Housings |
| 输出配置 | Through Hole, Press-Fit | 加载位置数 | All |
环境参数
| 工作温度 | -40...+105 °C | ||
