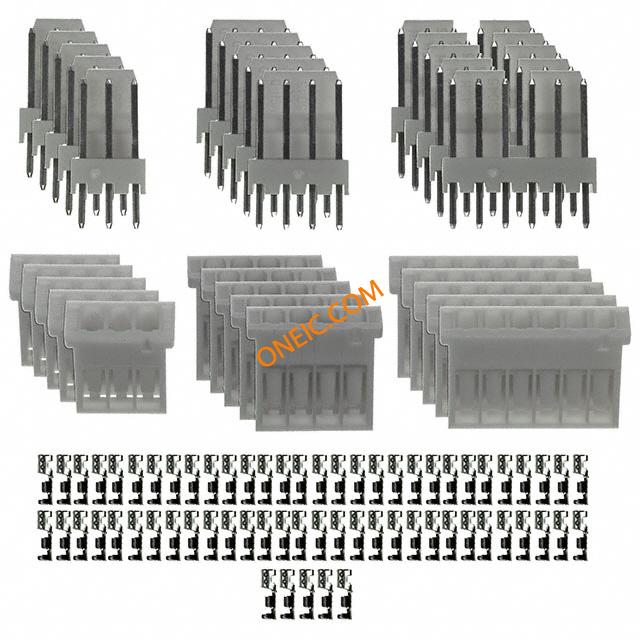

76650-0225
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 2.5MM PITCH 250V 22-28 WIRE SIZE KIT MINI-LATCH 2.50MM WTB Headers & Wire Housings MINILATCH KIT VERT HDR Kit Description:Friction Lock Vertical Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:95 MINI-LATCH CONNECTOR KIT FRICTION LOCK VERT HEADER & RECEPT |
| 分类 |
商业参数
| 商标名 | Mini-Latch | 标准包装规格 | 1 |
| 零件号别名 | 0766500225 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 250 V | 额定电压 | 250 V |
| 最大额定电流 | 1.5 A to 3 A | ||
机械参数
| 间距 | 2.5 mm | 包装方式 | Plastic Box |
| 导线线规 | 28-22 | 安装类型 | Vertical |
| 连接器类型 | Receptacle and Header | 端接样式 | SMD, Through Hole |
产品信息
| 系列 | 76650 | 值 | 95 pcs - Assorted 3, 4, 6 Circuit Header, Housing, 28 ~ 22 AWG Crimp Terminals |
| 套件类型 | Contact, Header, Housing | 制造商全称 | 76650 |
| 产品子类型 | Connector Kits | 配置 | Wire-to-Board |
| 电路数 | 3, 4, 6 | ||
