22-04-1031

制造商	Molex, LLC

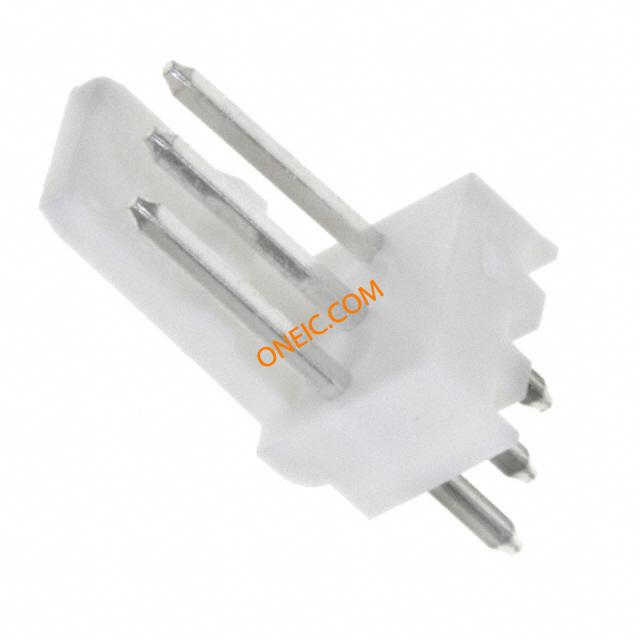

描述	Conn Wire to Board HDR 3 POS 2.5mm Solder ST Thru-Hole Bag CONN HEADER 3POS 2.5MM VERT TIN Molex 5045 Series 2.5mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.5 KK HDR VERT 3P friction ramp HEADER, THT, VERTICAL, 2.5MM, 3WAY Molex Mini-Latch 系列 2.5mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0022041031 5045-03A
产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	20000

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

量程（°/s）	:MOLEX - KK 5045 Series	额定电压	250 V ac/dc
工作电压	:250V	接触电阻	:20mohm
介电强度	:1500V/m	最大额定电流	3A

机械参数

颜色	Natural	间距	2.5 mm
重量	0.002	包装方式	Bulk
端接方式	Solder	触头类型	Male Pin
安装类型	Through Hole	释放力	:0.5N
连接器类型	Header, Unshrouded	接触镀层	Tin Over Copper
紧固类型	Friction Lock	排数	1
封装形式	:White Nylon UL94V-0	插入力	:2N
触头材料	Brass	壳体材料	Nylon
端接样式	Through Hole	触点数	3
接触件端接	:Through Hole Vertical	位数	3
安装孔直径	:1.19mm	接触长度 - 配合	0.295" (7.49mm)
接触镀层厚度	200µin (5.08µm)

产品信息

类型	Wire to Board	连接器性别	HDR
系列	5045	CAD图纸	3D CAD Model
产品子类型	Headers	加载位置数	All

环境参数

工作温度

:105°C

文档与媒体

PDF 文档

0022041031_PCB_HEADERS.pdf

PDF 文档

1752136.pdf

相关型号

暂无图片

22-01-1034

molex

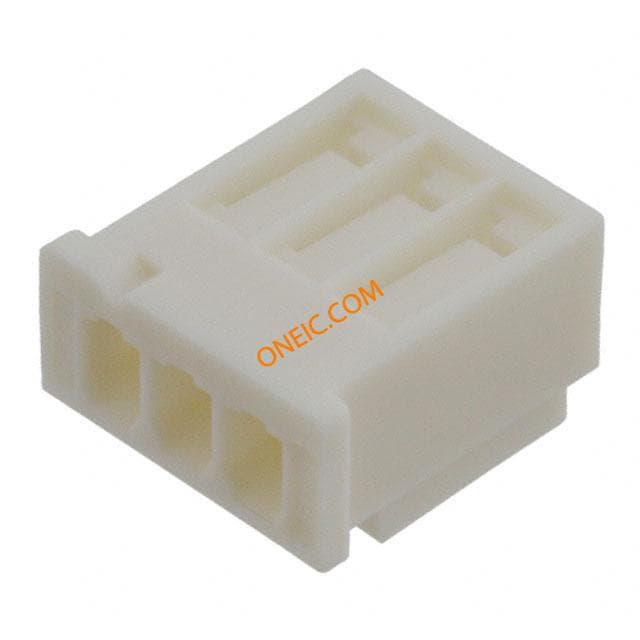

Conn Housing RCP 3 POS 2.5mm Crimp ST Cable Mount Bag

¥0.6664

详情

76650-0225

molex

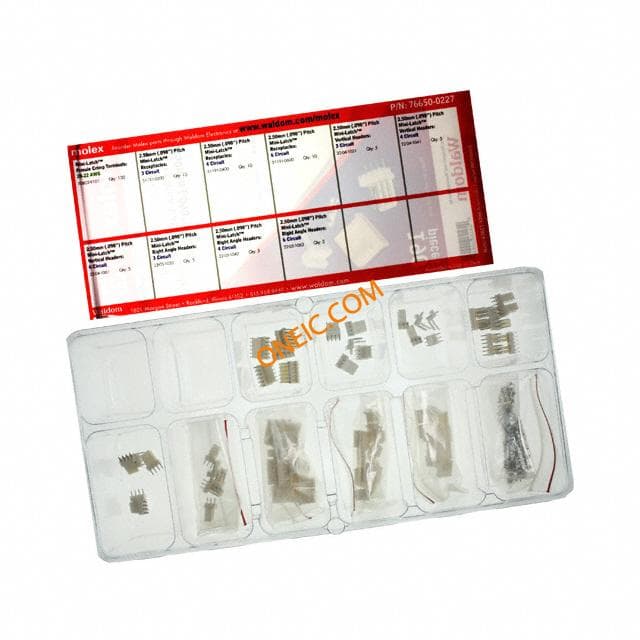

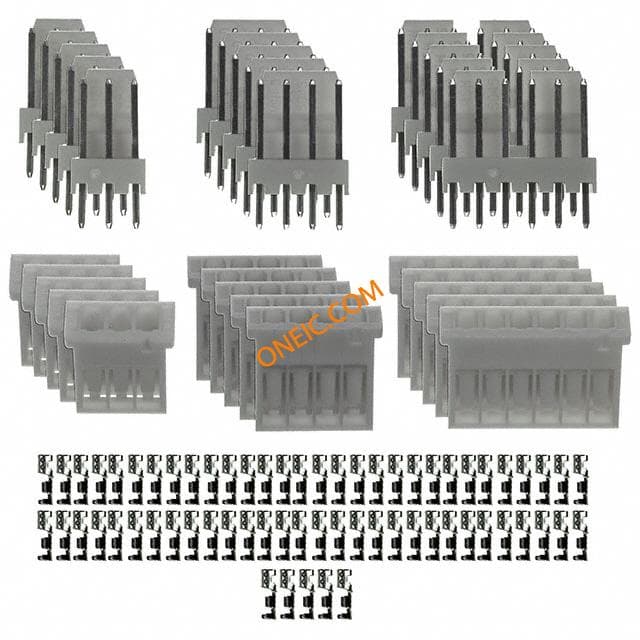

COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 2.5MM PITCH 250V 22-28 WIRE SIZE KIT MINI-LATCH 2.50MM WTB Headers & Wire Housings MINILATCH KIT VERT HDR Kit Description:Friction Lock Vertical Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:95 MINI-LATCH CONNECTOR KIT FRICTION LOCK VERT HEADER & RECEPT
